Product Information

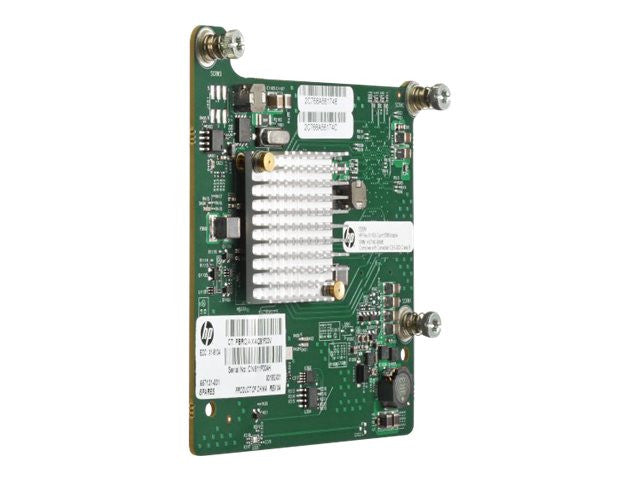

The HPE 701530-001 is the FlexFabric 10Gb 2-port 534M adapter for HPE ProLiant Gen8 blade servers. It adds storage I/O functions to a dual port 10Gb design, which makes it a full converged network adapter for demanding workloads.
Key Features
- Broadcom BCM57810S controller
- PCIe 2.0 x8 interface
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 701530-001
Option Part Number: 700748-B21
Spare Part Number: 701530-001
General
Product Type: Network adapter
Form Factor: Plug-in card
Adapter Details
Bus Type: PCI Express 2.0 x8
PCI Spec Revision: PCIe 2.0
Connectivity: Wired
Data Link Protocol: 10 GigE
Transfer Rate: 10 Gbps
Features: TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support, PXE support, Single Root I/O Virtualization (SR-IOV), tagged VLAN, TCP Offload Engine (TOE)
Processor: 1 x BCM57810S - Broadcom
RAM: 900 MB
Connections
Network Ports: 10Gb Ethernet x 2
Ports: 2 x 10Gb Ethernet
Software and Compatibility
Supported Operating Systems: SunSoft Solaris 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, SuSE Linux Enterprise Server 11 SP1, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, SuSE Linux Enterprise Server 10 SP4, Microsoft Windows Server 2012, VMware vSphere 5.0, VMware vSphere 4.1
Power and Environment
Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.3ap, FCC Class A certified, UL, BSMI CNS 13438 Class A, EN55022 Class A, WEEE, RoHS, FCC Part 15 A, AS/NZS, VCCI V-3 Class A ITE, EN 61000-3-2:2006, EN 61000-3-3:2008, ICES-003 issue 4 Class A, KN24, KN22 Class A, EN55024:1998 + A1 + A2
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE ProLiant BL Series: BL420c Gen8, BL460c Gen8, BL465c Gen8, BL660c Gen8, BL660c Gen8 Performance
- HPE ProLiant WS Series: WS460c Gen9 Graphics, WS460c Gen9 Graphics Expansion
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
