Product Information

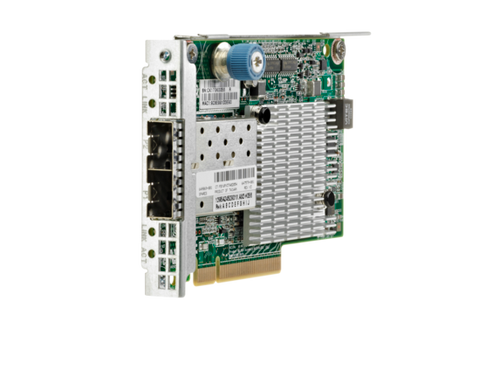

The HPE 701531-001 is the FlexFabric 10Gb 2-port 534FLR-SFP+, a single chip FlexibleLOM Ethernet adapter for HPE ProLiant and Apollo Gen9 and Gen10 servers. Along with full NIC features it can offload iSCSI and FCoE storage traffic when needed.
Key Features
- Full line rate 10GbE on both ports with hardware offload for storage traffic
- Switch independent NPAR turns every 10GbE port into 4 virtual ports, each with its own bandwidth share
- SR-IOV, VMware NetQueue and Microsoft VMQ
- NIC teaming, RSS, MSI-X, adaptive interrupt coalescing, VLAN tagging, jumbo frames and PXE boot
- NVGRE and VXLAN tunnel offloads plus TCP/IP stateless offloads
- NIC and storage managed together through HPE ProActive Insight
Also Supported
Checksum and segmentation offload, OS specific configuration utilities, DPDK, Fibre Channel over Ethernet (FCoE), HPE Sea of Sensors 3D, IPv6, Jumbo Frames, LED status indicators, MSI-X, NIC teaming, Network Partitioning (NPAR), VMware NetQueue and Microsoft VMQ virtualization support, PXE boot, RSS, SR-IOV, TCP/UDP/IP checksum offloads, TOE, Tunnel offload (VXLAN, NVGRE), Wake-on-LAN
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 701531-001
Option Part Number: 700751-B21
Spare Part Number: 701531-001
Assembly Number: 700749-001
General
Product Type: Network Adapter - FlexFabric
Form Factor: FlexibleLOM (Standard and low profile adapter compliant with the PCIe standard)
Adapter Details
Network Processor: Cavium 57810S chipset
Onboard Memory (Bus Type): PCI Express 2.0 (Gen 2) x8
Connectivity: Wired
Data Link Protocol: 10 GigE
Transfer Rate: 10 Gbps
Status Indicators: Port status, link activity
Features: 802.1Q VLANs, Checksum & Segmentation Offload, Configuration Utilities, DPDK, HPE Sea Of Sensors 3D, IPv6, iSCSI/FCoE, Management Support, Message Signaled Interrupt (Extended) (MSI-X), Network Adapter Teaming, Network Partitioning (NPAR), Optimized for Virtualization, LED Indicators, Preboot eXecution Environment (PXE), Receive Side Scaling (RSS), Server Integration, Single-Root I/O Virtualization, TCP/UDP/IP, TOE, Tunnel Offload, VMware NewQueue and Microsoft Virtual Machine Queue (VMQ), Wake-on-LAN
IEEE Standards: 802.3, 802.3ae, 802.3x, 802.2x, 802.3ad, 802.1Qaz, 802.1Qau, 802.1Qbb, 802.1Qbg, 802.1ax
Jumbo Frames: 9000 KB
Processor: 1 x BCM57810S - Broadcom
RAM: 256 MB
Data Rate: 2 Ports, each at 20 Gbps bi-directional; 40 Gbps aggregate bi-directional theoretical bandwidth
Connections
Ports: 10 Gigabit SFP+ x 2, 2 x 10Gb Ethernet - SFP+
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, VMware ESXi 5.0 update 1, VMware ESX 4.1 update 2
Size and Weight
Height: 2.44 inch
Width: 6.60 inch
Depth: 5.43 inch
Weight: 1.00 lbs
Certifications and Approvals
Emissions Class: Class A
USA: FCC Part 15 Class A
Canada: ICES-003, Issue 4
Japan: VCCI V3 (2010.04) Class A
International: EN55022:2006 + A1:2007 Class A; EN55024:1998+A1:2011+A2; EN61000-3-2:2006, EN61000-3-3:2008
Taiwan: BSMI, CNS13438 (2006) Class A
Australia/New Zealand (AS/NZS): EN55022:2006+A12007 class A
Korea: KN22 Class A, KN24 Compliance
RoHS Compliance: 6 of 6
Safety: UL Mark (USA and Canada), CE Mark, EN 60590
Power and Environment
Power Requirement: 9 Watt Maximum
Operating Temp: 0° to 55°C (32° to 131°F)
Non-Operating Temp: -65° to 85° C (-85° to 185° F)
Operating Humidity: 10% to 90% non-condensing
Non-Operating Humidity: 5% to 95% non-condensing
Compatible Systems
- HPE Apollo 4200 Gen9 Servers
- HPE ProLiant DL Series: DL20 Gen9, DL360 Gen9, DL380 Gen9, DL120 Gen10, DL160 Gen10, DL180 Gen10, DL360 Gen10, DL380 Gen10, DL560 Gen10, DL580 Gen10 and DL325 Gen10 Servers
- HPE ProLiant ML Series: ML110 Gen10 and ML350 Gen10 Servers
- HPE Apollo XL Series: Apollo 6500 - XL270d Gen9, Apollo 2000 - XL170r Gen10, Apollo 2000 - XL190r Gen10, Apollo 4500 - XL450 Gen10, Apollo 6000 – XL230k Gen10 and Apollo 6500 – XL270d Gen10
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
