Product Information

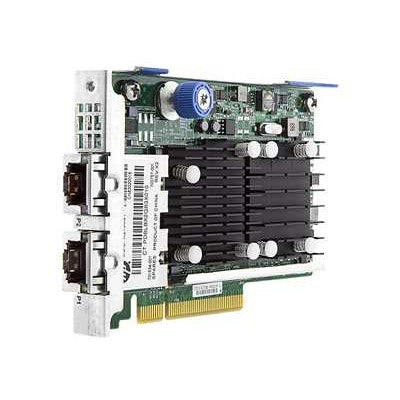

The HPE 701534-001 is the FlexFabric 10Gb 2-port 533FLR-T, a 10GBASE-T FlexibleLOM adapter for HPE ProLiant Gen9 and Gen10 DL servers and Apollo Gen10 XL systems. It runs on PCIe 2.0 x8.
Key Features
- Cavium (QLogic) 57810S controller
- Full line rate 10GbE on both ports
- Full hardware offload for storage traffic
- SR-IOV so several operating systems can share one physical link
- VMware NetQueue, Microsoft VMQ and VLAN tagging support
- NIC and storage managed together through HPE ProActive Insight
- Backward compatible with 1GbE networks over low cost CAT 6a UTP, up to 100 meters
- Ships with both full height and half height brackets
Also Supported
Checksum and segmentation offload, OS specific configuration utilities, DPDK, HPE Sea of Sensors 3D, IPv6, Fibre Channel over Ethernet (FCoE), Jumbo Frames, MSI-X, NIC teaming, Network Partitioning (NPAR), VMware NetQueue and Microsoft VMQ virtualization support, LED status indicators, PXE boot, RSS, SR-IOV, TCP/UDP/IP checksum offloads, TOE, Tunnel offload (VXLAN, NVGRE)
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 701534-001
Option Part Number: 700760-B21
Spare Part Number: 701534-001
General
Product Type: Network Adapter - with Both Brackets (Full-Height and Half-Height Bracket)
Form Factor: FlexibleLOM (Plug-In Card)
Adapter Details
Bus Type: PCI Express 2.0 x8
PCI Spec Revision: PCIe 2.0
Connectivity: Wired
Data Link Protocol: GigE, 10 GigE
Data Rate: 2 Port, each at 20 Gb Bidirectional, 40 Gb Bidirectional per Adapter
Transfer Rate: 10 Gbps
Status Indicators: Port Status, Link/Activity
Network Processor: Cavium 57810S
Jumbo Frames: 9000 KB, 9000KB, Message Signaled Interrupt (Extended) (MSI-X), Network Adapter Teaming, Network Partitioning (NPAR), Optimized for Virtualization, LED Indicators, Preboot eXecution Environment (PXE), Receive Side Scaling (RSS), Server Integration, Single-Root I/O Virtualization, TCP/UDP/IP, TOE, Tunnel Offload, VMware NewQueue and Microsoft Virtual Machine Queue (VMQ)
Standard Features: 802.1Q VLANs, Checksum & Segmentation Offload, Configuration Utilities, DPDK, HPE Sea Of Sensors 3D, IPv6, iSCSI/FCoE, Management Support,
IEEE Standards: 802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az, 1588, 802.1as
Processor: 1 x Cavium 57810S
RAM: 256 MB
Connections
Cabling: Ethernet 10GBase-T
Ports: 10Gb Ethernet x 2, 2 x 10GBase-T - RJ-45
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Microsoft Windows Small Business Server 2011 Standard, Microsoft Windows Small Business Server 2011 Essentials, Microsoft Windows MultiPoint Server 2011, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 6.2, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5.8, Red Hat Enterprise Linux 5.9, Red Hat Enterprise Linux 6.3, Citrix XenServer 6.1, VMware vSphere 5.0, VMware vSphere 4.1
Size and Weight
Height: 2.25 inch
Width: 9.50 inch
Depth: 7.50 inch
Weight: 1.00 lbs
Power and Environment
Power Draw (max): 18.20 Watt
Power Draw (typical): 15.50 Watt
Compliance: FCC Class A certified, UL, VCCI Class A ITE, EN55024, EN55022 Class A, ICES-003 Class A, WEEE, RoHS, BSMI Class A, EN 61000-3-2:2006, EN 61000-3-3:2008
Operating Temp: 0° to 55°C (32° to 131°F)
Non-Operating Temp: -65° to 85° C (-85° to 185° F)
Operating Humidity: 10% to 90% non-condensing
Non-Operating Humidity: 5% to 95% non-condensing
Compatible Systems
- HPE Apollo 4200 Gen9 Servers
- HPE ProLiant DL Series: DL20 Gen9, DL360 Gen9, DL380 Gen9, DL120 Gen10, DL160 Gen10, DL180 Gen10, DL360 Gen10, DL380 Gen10, DL560 Gen10, DL580 Gen10, DL385 Gen10 Servers
- HPE Apollo 2000 XL Series: XL170r Gen10, XL190r Gen10 Servers
- HPE Apollo 4500 XL Series: XL450 Gen10 Servers
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
