Product Information

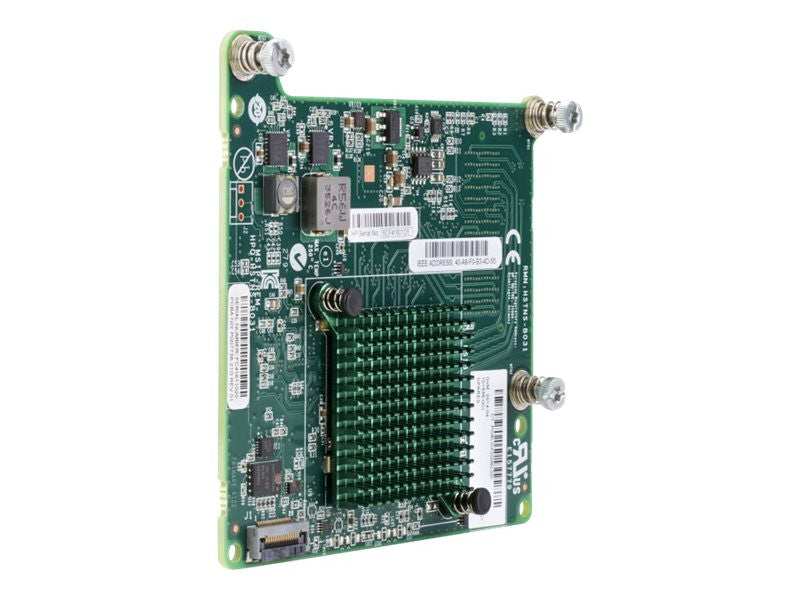

The HPE 701535-001 is the FlexFabric 20Gb 2-port 650M converged Ethernet adapter for HPE ProLiant Gen9 and Gen10 servers, on a PCIe 3.0 x8 interface.
Key Features
- Emulex controller
- VLAN support, QoS tagging, full duplex and Wake on LAN
- Jumbo frames, PXE and UEFI boot
- LSO, TSO and TCP/IP checksum offload, plus MSI-X
- SR-IOV and RoCE (RDMA over Converged Ethernet)
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 701535-001
Option Part Number: 700767-B21
Spare Part Number: 701535-001
General
Product Type: Network Adapter
Adapter Details
Bus Type: PCI Express 3.0 x8
PCI Spec Revision: PCIe 3.0
Connectivity: Wired
Data Link Protocol: Fibre Channel over Ethernet (FCoE), 20 Gigabit Ethernet
Transfer Rate: 20 Gbps
Network/Transport Protocol: TCP/IP, UDP/IP
Remote Management: SNMP
Features: Full duplex capability, TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support, teaming support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), checksum offload support, Extended Message-Signaled Interrupts (MSI-X), UDP/IP offloading
Connections
Network Ports: 20 Gigabit Ethernet x 2
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2008 (32/64-bits) SP2, SuSE Linux Enterprise Server 11 SP2, Microsoft Windows Server 2012, Microsoft Windows Server 2008 R2 (32/64-bits), Red Hat Enterprise Linux 5.9, Citrix XenServer 6.1, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.4, VMware vSphere 5.5, Oracle Solaris x64 11, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, Oracle Solaris 10 update 10, Red Hat Enterprise Linux 5.10, VMware ESXi 5.0 update 3, VMware ESXi 5.1 update 2
Power and Environment
Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.3ap, FCC Class A certified, UL, CISPR 22 Class A, BSMI CNS 13438 Class A, EN 60950, ICES-003, EN55024, FCC Part 15, WEEE, RoHS, VCCI V-3 Class A ITE, KN24, KN22 Class A, EN55022:2006 Class A
Power Draw (operating): 12.00 Watt
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE 6125XLG
- HPE 6125XLG Ethernet Blade Switch
- HPE ProLiant BL Series: BL460c Gen10, WS460c Gen9 Graphics, WS460c Gen9 Graphics Expansion
