Product Information

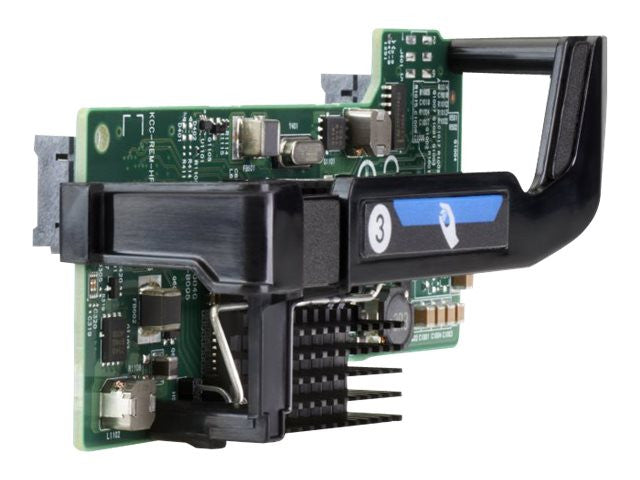

The HPE 766490-B21 is the FlexFabric 10Gb 2-port 536FLB, a converged Ethernet FlexibleLOM blade adapter on PCIe 3.0 x8 for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- QLogic controller
- VLAN support, QoS tagging and full duplex
- Jumbo frames and PXE boot
- LSO, TSO, TCP/IP and UDP/IP checksum offload
- SR-IOV and MSI-X
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 766490-B21
Option Part Number: 766490-B21
Spare Part Number: 768080-001
General
Product Type: Network Adapter
Adapter Details
Bus Type: PCI Express 3.0 x8
Connectivity: Wired
Data Link Protocol: 10 Gigabit Ethernet
Transfer Rate: 10 Gbps
Network/Transport Protocol: TCP/IP
Remote Management: SNMP
Features: VLAN support, full duplex mode, Jumbo Frames support, PXE support, Large Send Offload (LSO), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), QoS tagging, Extended Message-Signaled Interrupts (MSI-X), TCP/IP checksum offload, UDP/IP checksum offload
Processor: 1 - Qlogic
Connections
Network Ports: 10Gb Ethernet x 2
Expansion Slots: 1 x FlexibleLOM
Software and Compatibility
Software Included: Drivers & Utilities, HP Systems Insight Manager (HP SIM)
Supported Operating Systems: Microsoft Windows Server 2008 SP2, SuSE Linux Enterprise Server 11 SP2, Microsoft Windows Server 2012, Microsoft Windows Server 2008 R2 SP1 (32/64 bits), Red Hat Enterprise Linux 5.9, Citrix XenServer 6.1, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.4, VMware vSphere 5.5, Oracle Solaris x64 11, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, Oracle Solaris 10 update 10, Red Hat Enterprise Linux 5.10, VMware ESXi 5.0 update 3, VMware ESXi 5.1 update 2
Power and Environment
Compliance: IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1ab (LLDP), IEEE 802.3ap, IEEE 802.1Qau, FCC Class A certified, UL, BSMI CNS 13438 Class A, EN 60950, ICES-003, EN55024, FCC Part 15, WEEE, RoHS, VCCI V-3, EN 61000-3-2:2006, EN 61000-3-3:2008, KN22, KN24, EN55022:2006 Class A
Power Draw (operating): 7.60 Watt
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE ProLiant BL Series:
- HPE ProLiant BL460c Gen10, BL460c Gen9, BL460c Gen9 Base, BL460c Gen9 Entry, BL460c Gen9 Performance
- HPE ProLiant WS Series: WS460c Gen9 Graphics, WS460c Gen9 Graphics Expansion
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
