Product Information

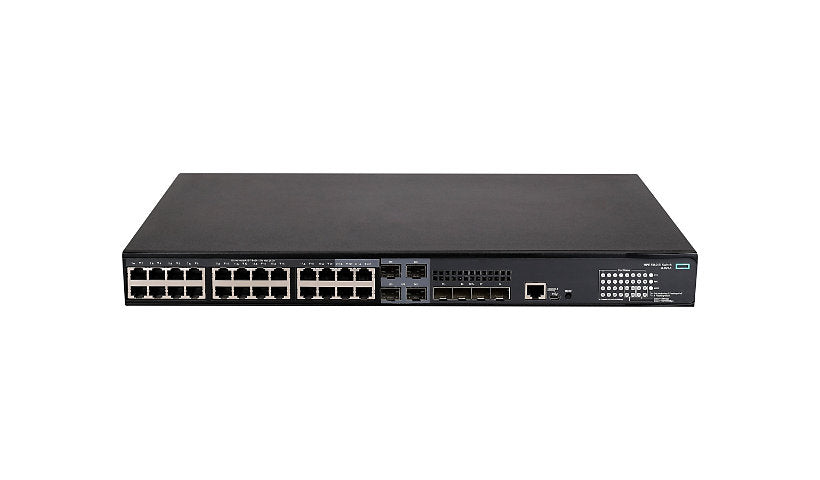

HPE's FlexNetwork 5140 24G PoE+ 4SFP+ EI (JL827A) is a Comware based Layer 3 access switch with 24 Gigabit PoE+ ports, four combo Gigabit SFP ports and four 1/10G SFP+ uplinks. It shares a 370 W PoE budget, offers 128 Gbps of capacity and supports IRF stacking, static routing and RIP.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports
- 4 x combo Gigabit RJ-45/SFP ports
- 4 x 1/10G SFP+ uplinks
- 370 W PoE budget
- 128 Gbps, 96 Mpps
- IRF stacking, static routing, RIP
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE FlexNetwork
Model: 5140 24G PoE+ 4SFP+ EI
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTPS, ICMP, NTP, RADIUS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP
Routing Protocol: CIDR, IGMP, IGMPv3, OSPF, OSPFv2, OSPFv3, RIP-1, RIP-2, Static IPv4 routing, Static IPv6 routing
Authentication Method: HWTACACS, RADIUS, Secure Shell v.2 (SSH2), TACACS+
Encryption: SSL
Performance: Latency (10 Gbps): 3 µs, Latency (1000 Mbps): 5 µs, Routing/switching capacity: 128 Gbps, Throughput: 96 Mpps
Capacity: IPv4 routing table entries: 512, IPv6 routing table entries: 256, VLAN IDs: 4094
MAC Address Table Size: 16384 entries
Jumbo Frame Support: 9216 bytes
Features: Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU protection, Committed Access Rate (CAR), Device Link Detection Protocol (DLDP) support, DHCP protection, DHCP relay, DHCP server, DiffServ support, Dynamic ARP protection, Energy Efficient Ethernet, Ethernet OAM, Flow control, Full duplex mode, Generic Attribute Registration Protocol (GARP), Guest VLAN, Half duplex mode, High Availability, ICMP Router Discovery Protocol (IRDP), IGMP snooping, Intelligent Resilient Fabric Technology (IRF), IP source guard, Link Aggregation, Link Aggregation Control Protocol (LACP), LLDP-MED, Load balancing, MLD snooping, Multiple Registration Protocol (MRP), Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), OpenFlow support, Port isolation, Port Security, Proxy ARP, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, sFlow, Smart Link, Spanning Tree Protocol (STP) support, STP Root Guard, Strict Priority Queuing (SPQ), UDP support, Virtual Route Redundancy Protocol (VRRP) support, VLAN Double Tagging (Q-in-Q), VLAN support, Weighted Round Robin (WRR)
Smart: Yes
Connectivity
Ports: 28
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): Combo 10/100/1000Base-T (PoE+) / 100/1000Base-X SFP
Ports (3rd) Quantity: 4
Interface Provided: 1 x console RJ-45 management, 1 x micro-USB 5 pin USB header management, 24 x 1000Base-T RJ-45 PoE+, 4 x 1000Base-X SFP, 4 x 1000Base-X/10GBase-X SFP+
Power Over Ethernet (PoE): PoE+
QSFP Slots: 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Provided: 451 watt
PoE Budget: 370 watt
Memory and Processor
RAM Installed: 512 megabyte
Memory Technology: SDRAM
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Port status, System
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 10.2 inch
Weight: 17.64 lbs
Certifications and Listing
Compliant Standards: ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1r, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: AS/NZS CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 24, EN 300 386, EN 55032, EN 60825-1, EN 60825-2, EN 61000-3-2, EN 61000-3-3, EN 62368-1:2014/A11:2017, EN55024, ETSI EN 300 386, FCC Part 15 B Class A, FDA 21 CFR, GB/T9254, ICES-003 Class A, IEC 60950-1, IEC 62368-1, IPv6 Ready, Plug and Play, RoHS, UL 60950-1, VCCI-CISPR 32:2016 Class A, WEEE, YD/T993
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
