Product Information

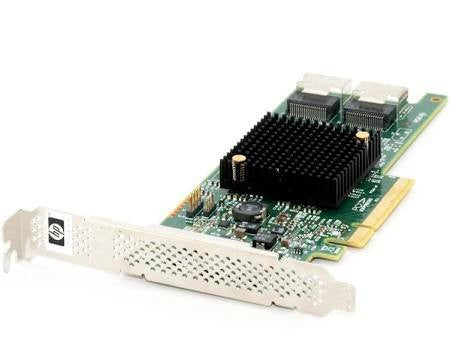

The HPE 660088-001 is an H220 Host Bus Adapter for HPE ProLiant Gen8, Gen9 and Gen10 servers. It uses PCIe 3.0 and supports 6Gb/s SAS and SATA.
Key Features
- Two x4 internal ports
- Supports 6Gb SAS and SATA hard drives, plus SAS tape drives
- A cost effective way to scale storage in the data center
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 660088-001
Option Part Number: 650933-B21
Spare Part Number: 660088-001
General
Product Type: Storage Controller - Plug-in Card - Low Profile
Adapter Details
Host Bus: PCIe 3.0 x8
Drive Interface: SATA 3Gbps / SAS 6Gbps
Transfer Rate: 6 Gb/sec
Supported Devices: Hard Drives
Channels: 8 Expansion / Connectivity
Connections
Ports: 2 x SATA 3Gb/s / SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088)
Slot: 1 x PCI Express 3.0 x8
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Microsoft Windows Server 2008, Red Hat Enterprise Linux 6, Oracle Solaris 10, VMware ESX 4.1, VMware ESXi 5, Red Hat Enterprise Linux 6.2, VMware ESXi 4.1 update 2, Red Hat Enterprise Linux 5.8
Size and Weight
Width: 0.60 inch
Depth: 6.60 inch
Height: 2.70 inch
Power and Environment
Compliance: WEEE
Compatible Systems
- HPE ProLiant DL Series: DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL320e Gen8, DL320e Gen8 Base, DL320e Gen8 Entry, DL320e Gen8 Performance, DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance,
- HPE ProLiant ML Series: ML10 v2, ML10 v2 Base, ML10 v2 Entry, ML10 v2 Performance, ML310e Gen8, ML310e Gen8 Base, ML310e Gen8 Entry, ML310e Gen8 Performance, ML310e Gen8 v2, ML310e Gen8 v2 Base, ML310e Gen8 v2 Entry, ML310e Gen8 v2 Performance, ML350e Gen8, ML350e Gen8 Base, ML350e Gen8 Entry, ML350e Gen8 Performance, ML350e Gen8 v2, ML350e Gen8 v2 Base, ML350p Gen8, ML350p Gen8 Base, ML350p Gen8 Entry, ML350p Gen8 Performance
- HPE ProLiant SL Series: SL210t Gen8 1U Node, SL230s Gen8 1U Left Half Width Tray, SL230s Gen8 1U Right Half Width Tray, SL230s Gen8 Base 1U Left Tray Server, SL230s Gen8 Base 1U Right Tray Server, SL250s Gen8 2U Left Half Width Tray, SL250s Gen8 2U PCIe Gen3 Left Tray, SL250s Gen8 2U Right Half Width Tray, SL250s Gen8 Base 2U Left Half Width Tray, SL250s Gen8 Base 2U Left Tray Server, SL250s Gen8 Base 2U Right Half Width Tray, SL250s Gen8 Base 2U Right Tray Server, SL270s Gen8 Base 4U Left Half Width Tray, SL270s Gen8 Base 4U Right Half Width Tray, SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray
- HPE ProLiant XL Series: XL220a Gen8 v2
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
