Product Information

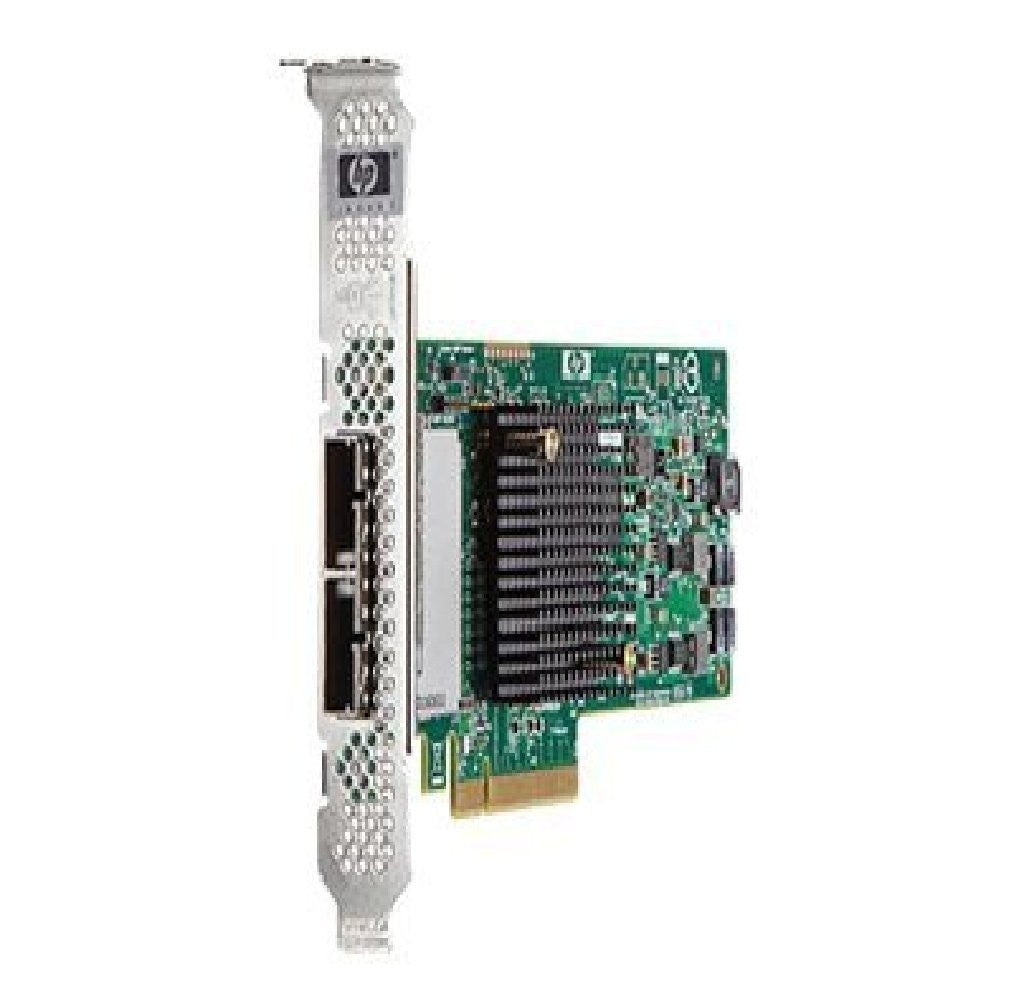

The HPE 660087-001 is an H221 8 channel Host Bus Adapter and storage controller for HPE ProLiant Gen8, Gen9 and Gen10 servers. It has a PCIe 2.0 x8 interface and supports 6Gb/s SAS and 3Gb/s SATA.
Key Features
- Low profile, dual port card
- Fits one PCIe 2.0 x8 slot
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 660087-001
Option Part Number: 650931-B21
Spare Part Number: 660087-001
General
Product Type: Storage controller - plug-in module - low profile
Adapter Details
Host Bus: PCIe 2.0 x8
Drive Interface: SATA-3Gbps / SAS-6Gbps
Transfer Rate: 600 MBps
Supported Devices: Hard drive
Channels: 8
Connections
Ports: 2 x SATA 3Gbps / SAS 6Gbps - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) (external)
Slot: 1 x PCI Express 2.0 x8
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Standard Edition, Microsoft Windows Server 2003 Standard x64 Edition, Microsoft Windows Server 2003 Enterprise x64 Edition, SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, VMware ESX 4.0
Size and Weight
Width: 0.60 inch
Depth: 6.60 inch
Height: 2.70 inch
Power and Environment
Compliance: WEEE
Compatible Systems
- HPE ProLiant DL Series: DL160 Gen8, DL160 Gen8 Entry, DL160 Gen8 Performance, DL320e Gen8, DL320e Gen8 Base, DL320e Gen8 Entry, DL320e Gen8 Performance, DL360e Gen8, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance
- HPE ProLiant ML Series: ML310e Gen8, ML310e Gen8 Base, ML310e Gen8 Entry, ML310e Gen8 Performance, ML310e Gen8 v2, ML310e Gen8 v2 Base, ML310e Gen8 v2 Entry, ML310e Gen8 v2 Performance, ML350e Gen8, ML350e Gen8 Base, ML350e Gen8 Entry, ML350e Gen8 Performance, ML350e Gen8 v2, ML350p Gen8, ML350p Gen8 Base, ML350p Gen8 Entry, ML350p Gen8 Performance
- HPE ProLiant SL Series: SL210t Gen8 1U Node, SL270s Gen8 Base 4U Left Half Width Tray, SL270s Gen8 Base 4U Right Half Width Tray, SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
