Product Information

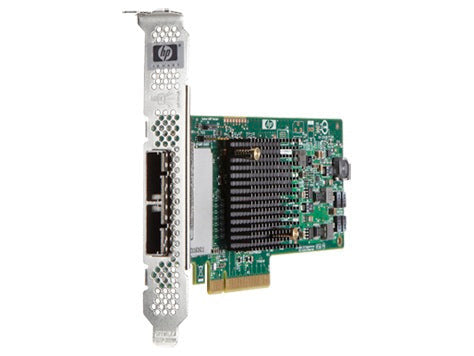

The HPE 738191-001 is an H221 Host Bus Adapter for HPE ProLiant Gen8 servers. It has a PCIe 3.0 x8 interface and supports 6Gb/s SAS and 6Gb/s SATA.
Key Features
- One x4 external port and one x4 internal port
- Connects tape drives, HDDs and external JBODs, inside or outside the server
- Supports 6Gb SAS and SATA hard drives, plus SAS tape drives
- Also a fast option for SSDs that do not need RAID data protection
- A cost effective way to scale storage in the data center
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 738191-001
Option Part Number: 729552-B21
Spare Part Number: 738191-001
General
Product Type: Host Bus Adapter - Plug-in Module - Low Profile
Adapter Details
Host Bus: PCIe 3.0 x8
Drive Interface: SATA 6Gb/s / SAS 6Gb/s
Transfer Rate: 600 MBps
Supported Devices: Hard Drive, Tape Drive, Solid State Drive
PCIe Bus Speed: PCIe 3.0 x8 (8GT/s Max)
Port Transfer Rate: 24Gb/s per x 4 Wide (4 x 6G)
Max Capacity: 384TB SAS/SATA
Memory Addressing: 64-bit Server Memory > 4GB
Connections
SAS Connectors: 2x4 External SFF-8088 (Mini-SAS)
Ports: 1 x SATA 6Gb/s / SAS 6Gb/s
Compatible Systems
- HPE ProLiant Generation8 Servers
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
