Product Information

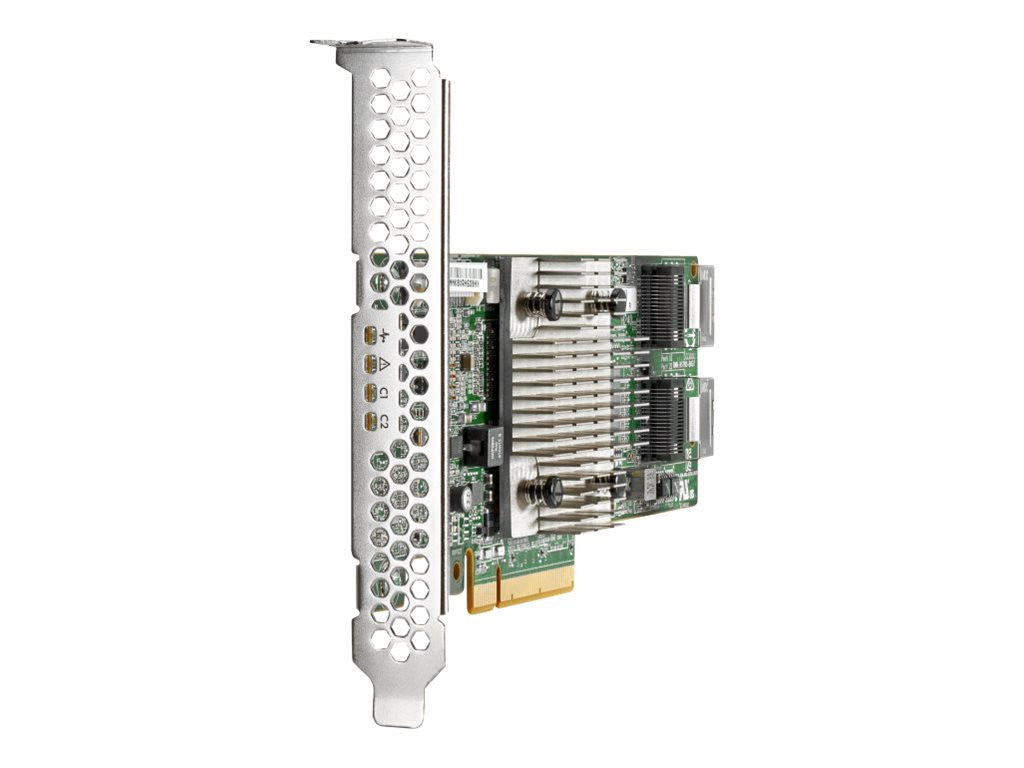

The HPE 779134-001 is an H240 Smart Host Bus Adapter for HPE ProLiant Gen9 servers. It is a dual port, low profile PCIe 3.0 x8 internal card that runs 12Gb/s SAS and 6Gb/s SATA.
Key Features
- Does not support cache modules
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 779134-001
Option Part Number: 726907-B21
Spare Part Number: 779134-001
General
Product Type: Storage Controller - Plug-in Card - Low Profile
Adapter Details
Host Bus: PCI Express 3.0 x8
Drive Interface: SATA 6Gb/s / SAS 12Gb/s
Transfer Rate: 12 Gbit/s
Supported Devices: Hard drive, solid state drive
Channels: 8
RAID Levels: RAID 0, RAID 1, RAID 5
Connections
Ports: 2 x SATA 6Gb/s / SAS 12Gb/s (Internal)
In the Box: Low-Profile Bracket
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Ubuntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Microsoft Windows Server 2012 with Hyper-V, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6 update 5
Size and Weight
Width: 0.60 inch (1.60 cm)
Depth: 6.60 inch (16.8 cm)
Height: 2.70 inch (6.86 cm)
Power and Environment
Compliance: WEEE
Compatible Systems
- HPE Apollo 4510 Gen9, 4530
- HPE ProLiant DL Series: DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9 Solution, DL360 Gen9, DL360 Gen9 Base, DL360 Gen9 CMS, DL360 Gen9 Entry, DL360 Gen9 Performance, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL560 Gen9 Entry, DL80 Gen9
- HPE ProLiant ML Series: ML30 Gen9 Entry, ML30 Gen9 Solution, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance
- HPE ProLiant XL Series: XL170r Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHP Compute Tray (12G), XL270d Gen9
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
