Product Information

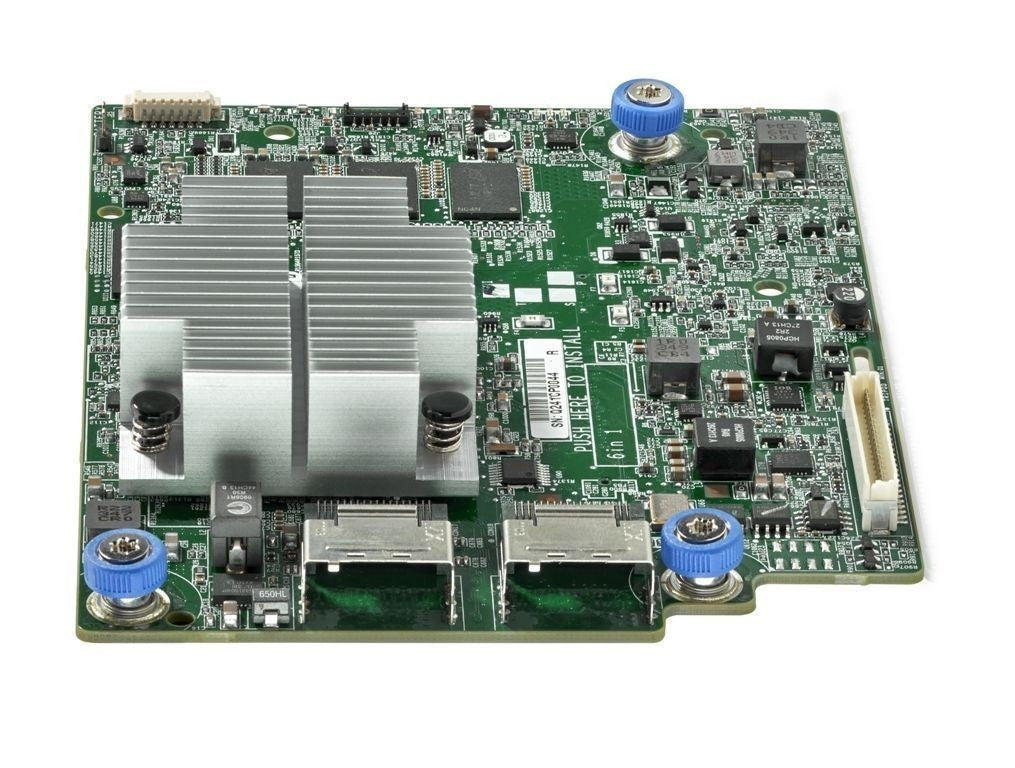

The HPE 726757-B21 is an H240ar Smart Host Bus Adapter for HPE ProLiant Gen9 servers. It is a dual port internal FIO (flexible I/O) board with a PCIe 3.0 x8 interface and 12Gb/s SAS.
Key Features
- RAID 0, 1 and 5
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 726757-B21
Option Part Number: 726757-B21
Spare Part Number: 749997-001
General
Product Type: Host Bus Adapter - plug-in module
Adapter Details
Host Bus: PCIe 3.0 x8
Drive Interface: SATA-6Gbps / SAS-12Gbps
Transfer Rate: 1.2 GBps
Supported Devices: Hard drive, solid state drive
Channels: 8
RAID Levels: RAID 0, RAID 1, RAID 5
Connections
Ports: 2 x SATA-6Gbps / SAS-12Gbps - 36 pin 4i Mini MultiLane SAS (SFF-8087) (internal)
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Ubuntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Microsoft Windows Server 2012 with Hyper-V, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6 update 5
Size and Weight
Width: 1.20 inch
Depth: 5.30 inch
Height: 3.60 inch
Power and Environment
Compliance: WEEE
Compatible Systems
- HPE ProLiant DL Series: DL360 Gen9, DL360 Gen9 Base, DL360 Gen9 CMS, DL360 Gen9 Entry, DL360 Gen9 Performance, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL560 Gen9 Entry
- HPE ProLiant ML Series: ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
