Product Information

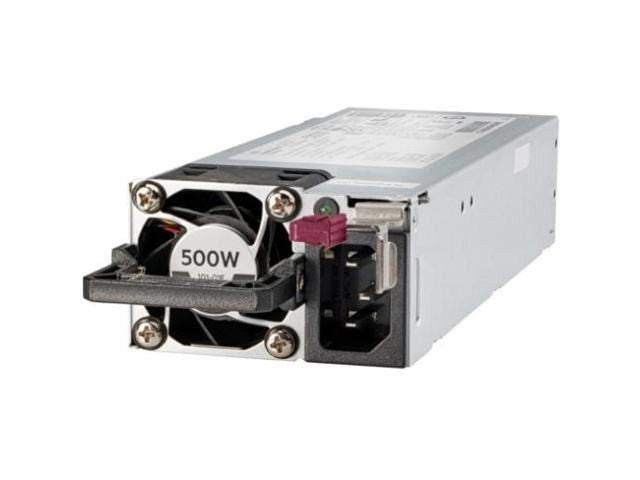

The HPE HSTNS-PL40-1 is a 500 watt Flex Slot hot plug power supply in the low halogen Platinum range, for HPE ProLiant Gen9 and Gen10 servers. It accepts 100 to 240 volt AC at 50/60Hz.
Key Features
- 500W output, 100-240V AC input
- 94% efficiency, 80 PLUS Platinum
- Flex Slot form factor, 25% smaller than HPE Common Slot supplies, leaving more room for other server options
- Tool-less, hot plug design for fast swaps
- The Flex Slot family reaches up to 96% efficiency, which lowers power draw and waste
- One Flex Slot spare covers ProLiant Gen10, ProLiant 300 series Gen9 and Apollo 2000/4000 servers, keeping spares simple
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: HSTNS-PL40-1
Option Part Number: 865408-B21
Spare Part Number: 866729-001
Model Number: HSTNS-PL40-1
Assembly Number: 865399-201
HPE GPN: 865398-001
General
Product Type: Power Supply - Hot-Plug / Redundant - Plug-in Module
Form Factor Spec: Flex Slot
Size and Weight
Height: 4.00 (10.16 cm)
Width: 7.50 inch (19.05 cm)
Depth: 12.75 inch (32.38 cm)
Weight: 3.00 lbs (1.36 kg)
Power
Input Voltage: 100V - 240V AC
Output Capacity: 500 Watt / 563 VA
Frequency: 50 - 60 Hz
Input Connector: Power IEC 60320 C14
Efficiency: 94%
80 PLUS Rating: 80 PLUS Platinum
Power and Environment
Compliance: UL, TUV, C-Tick, BSMI, cUL, CCC, KCC, WEEE, low halogen, CISPR Class A
Operating Temp (Min): 41 °F
Operating Temp (Max): 131 °F
Operating Humidity: 5 - 95% (non-condensing)
Compatible Systems
- HPE Cloudline Series: CL2600 Gen10 Network Choice (500 Watt), CL2600 Gen10 Premium Network Choice (500 Watt), CL2800 Gen10 (500 Watt), CL2800 Gen10 Network Choice (500 Watt)
- HPE Nimble Storage: dHCI Large Solution with
- HPE ProLiant DL380 Gen10 (500 Watt), Medium Solution with
- HPE ProLiant DL325 Gen10 Plus (500 Watt), Medium Solution with
- HPE ProLiant DL360 Gen10 (500 Watt), Small Solution with
- HPE ProLiant DL360 Gen10 (500 Watt)
- HPE ProLiant DL Series: DL160 Gen10 SMB, DL180 Gen10 Entry (500 Watt), DL180 Gen10 SMB (500 Watt), DL325 Gen10 Base (500 Watt), DL325 Gen10 Plus (500 Watt), DL325 Gen10 Plus All-NVMe Flash Node for Qumulo (500 Watt), DL325 Gen10 Plus for Weka Expansion Tracking (500 Watt), DL325 Gen10 Plus V2 (500 Watt), DL325 Gen10 Solution (500 Watt), DL345 Gen10 Plus (500 Watt), DL345 Gen10 Plus Entry (500 Watt), DL360 Gen10 All Flash Server for Weka (500 Watt), DL360 Gen10 Compute Server for Cohesity DataPlatform (500 Watt), DL360 Gen10 Network Choice (500 Watt), DL360 Gen10 Performance for Cohesity DataPlatform (500 Watt), DL360 Gen10 Plus Network Choice (500 Watt), DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform (500 Watt), DL360 Gen10 SMB Network Choice (500 Watt), DL365 Gen10 Plus (500 Watt), DL380 Gen10 All Flash Server for Datera (500 Watt), DL380 Gen10 for SAP HANA Compute Block (500 Watt), DL380 Gen10 Hybrid Server for Datera (500 Watt), DL380 Gen10 Network Choice (500 Watt), DL380 Gen10 Network Choice for CTERA (500 Watt), DL380 Gen10 NVMe All Flash Server for Datera (500 Watt), DL380 Gen10 Server for CTERA (500 Watt), DL380 Gen10 SMB Networking Choice (500 Watt), DL385 Gen10 Plus (500 Watt), DL385 Gen10 Plus Entry (500 Watt), DL385 Gen10 SMB (500 Watt), DL388 Gen10 Network Choice (500 Watt), DL560 Gen10 for SAP HANA Compute Block (500 Watt), DX385 Gen10 Plus (500 Watt)
- HPE ProLiant ML Series: ML350 Gen10 SMB (500 Watt), ML350 Gen10 Special Server (500 Watt)
- HPE SimpliVity 325 Gen10 Node (500 Watt)
Not sure this power supply fits your system? Send us your server or enclosure model and the DatorPro team will confirm compatibility before you order.
