Product Information

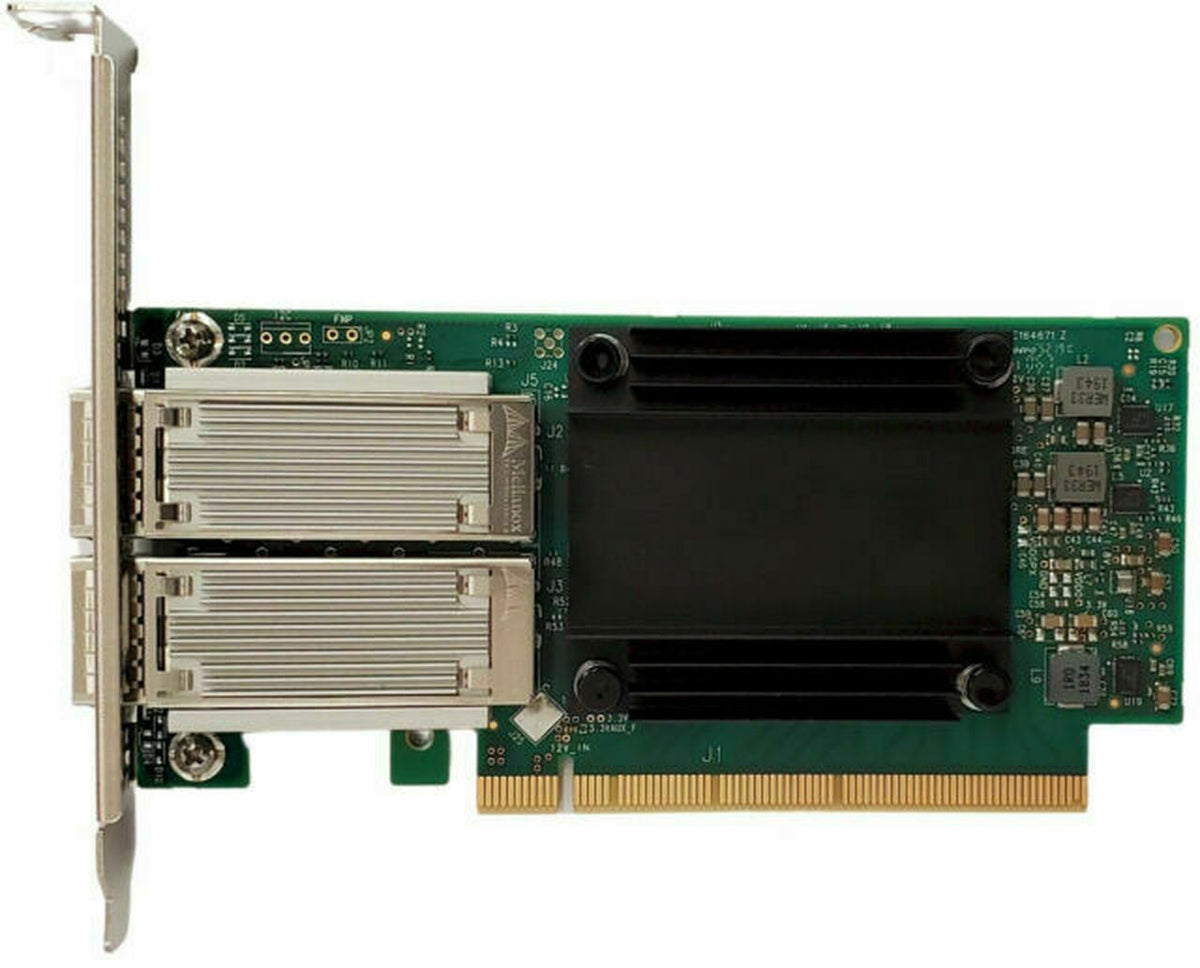

The HPE 872726-B21 is a dual port 100Gb InfiniBand EDR and Ethernet adapter for HPE ProLiant Gen10 servers, on a low profile PCIe 3.0 x16 card with QSFP28 ports.
Key Features
- Mellanox ConnectX-5 controller
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 872726-B21
Option Part Number: 872726-B21
Spare Part Number: 878579-001
General
Product Type: Network adapter
Form Factor: Plug-in card - low profile
Adapter Details
Bus Type: PCI Express 3.0 x16
Connectivity: Wired
Data Link Protocol: 100 Gigabit Ethernet, 100 Gigabit InfiniBand
Transfer Rate: 100 Gbps
Virtual Functions: up to 256
Physical Functions: up to 16
Features: RDMA over Converged Ethernet (RoCE), InfiniBand EDR Link support, Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), NVMe over Fabric (NVMf) Offloads
Processor: 1 x Mellanox ConnectX-5
Connections
Network Ports: 100Gb Ethernet / InfiniBand EDR QSFP28 x 2
Ports: 2 x 100Gb Ethernet / InfiniBand EDR QSFP28 - QSFP28
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11 SP3, SuSE Linux Enterprise Server 11 SP4, SuSE Linux Enterprise Server 12 SP3, Ubuntu 16.04, Red Hat Enterprise Linux 6.8, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, Ubuntu 16.10, Ubuntu 17.04, SuSE Linux Enterprise Server 12 SP2, Red Hat Enterprise Linux 7.4, CentOS 6.9, CentOS 7.3, CentOS 6.8, CentOS 7.4, Oracle Enterprise Linux 6.8, Oracle Enterprise Linux 6.9, Oracle Enterprise Linux 7.3, Oracle Enterprise Linux 7.4, Ubuntu 17.10
Power and Environment
Compliance: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, CISPR 22 Class A, EN55022 Class A, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, IEC 60068-2-32, RoHS, IEC 60068-2-29, IEC 60068-2-64, KC, FCC CFR47 Part 15 A, CAN/CSA-C22.2 No. 60950-1
Power Draw (operating): 16.12 Watt
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 5 - 95% (non-condensing)
Compatible Systems
- HPE J2000 Dual IOM 2x100GbE NVMe-oF SFF JBOF Storage, J2000 Dual IOM 6x100GbE NVMe-oF SFF JBOF Storage
- HPE Apollo 4200 Gen10, 4200 Gen10 192TB Qumulo Hybrid Node, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4200 Gen10 for
- HPE Ezmeral Container Platform, 4200 Gen10 Qumulo Archive Node, 4200 Gen10 Qumulo Hybrid Node, 4200 Gen9 for Google, 4200 Qumulo Hybrid Node, 4200 Qumulo Node
- HPE Nimble Storage dHCI Large Solution with
- HPE ProLiant DL380 Gen10
- HPE ProLiant DL Series: DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 All Flash Server for Datera, DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance
- HPE ProLiant XL Series: XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen9, XL190r Gen10, XL190r Gen10 for
- HPE Ezmeral Container Platform, XL190r Gen9, XL270d Gen9
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
