Product Information

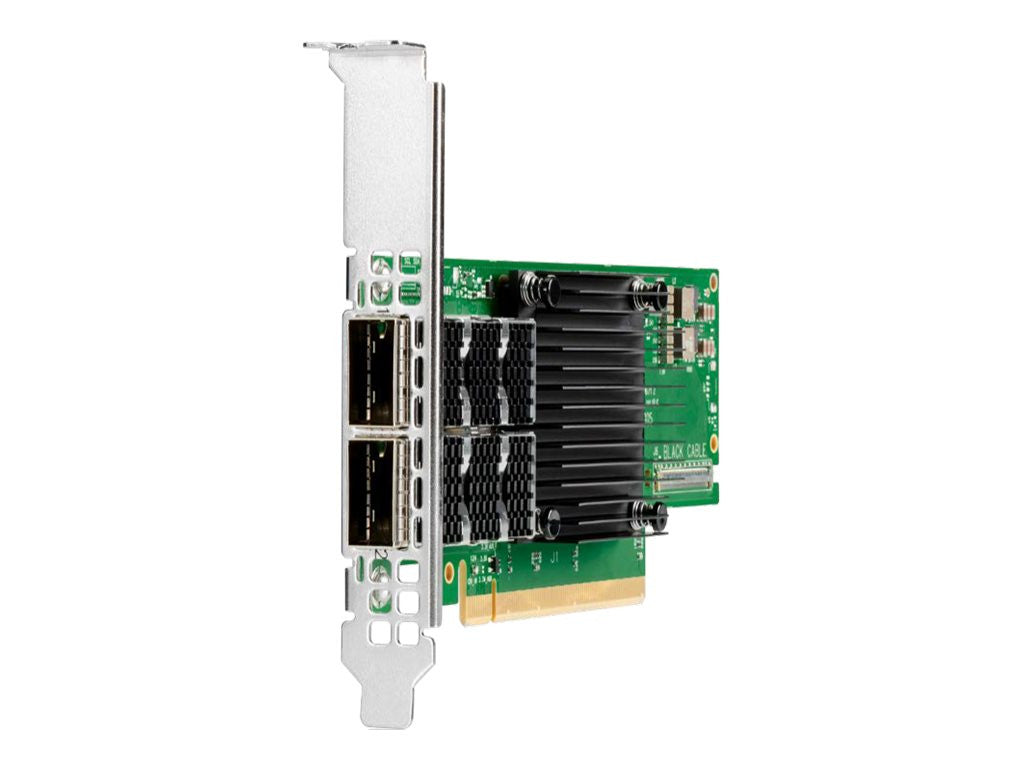

The HPE P23666-B21 is a dual port 100Gb InfiniBand and Ethernet adapter for HPE ProLiant Gen10 Plus servers, on a low profile PCIe 4.0 x16 card.
Key Features
- Mellanox ConnectX-6 controller
- InfiniBand HDR link support
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: P23666-B21
Option Part Number: P23666-B21
Spare Part Number: P24752-001
General
Product Type: Network adapter
Form Factor: Plug-in card - low profile
Adapter Details
Bus Type: PCI Express 4.0 x16
PCI Spec Revision: PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0
Connectivity: Wired
Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand
Transfer Rate: 100 Gbps
Network/Transport Protocol: TCP/IP, UDP/IP, iSCSI
Features: Auto-negotiation, MPLS support, VLAN support, InfiniBand QDR Link support, Virtual Protocol Interconnect (VPI), Quality of Service (QoS), InfiniBand DDR Link support, Jumbo Frames support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, InfiniBand FDR Link support, congestion control, Advanced Error Reporting (AER), Extended Message-Signaled Interrupts (MSI-X), Header Data Split (HDS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), InfiniBand EDR Link support, TLP Processing Hint (TPH), InfiniBand SDR Link support, Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), user mode registration and remapping of memory (UMR), On demand paging (ODP), Message Signaled Interrupts (MSI), InfiniBand HDR100 Link support
Processor: 1 x Mellanox ConnectX-6
Connections
Network Ports: 100Gb Ethernet / 100Gb InfiniBand QSFP28 x 2
Ports: 2 x 100Gb Ethernet / 100Gb InfiniBand - QSFP28
Software and Compatibility
Supported Operating Systems: FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS
Power and Environment
Compliance: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, CISPR 22 Class A, EN55024, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-32, RoHS, IEC 60068-2-29, IEC 60068-2-64, KC, VCCI Class A, AS/NZS CISPR 22, EN 55022 Class A, FCC CFR47 Part 15 A, RCM Class A, CAN/CSA-C22.2 No. 60950-1
Power Draw (operating): 17.70 Watt
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 5 - 95% (non-condensing)
Compatible Systems
- HPE Nimble Storage dHCI Medium Solution with
- HPE ProLiant DL325 Gen10 Plus
- HPE ProLiant DL Series: DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka BAse Tracking, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus Base, DL365 Gen10 Plus, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, DL385 Gen10 Plus, DL385 Gen10 Plus Entry
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
