Product Information

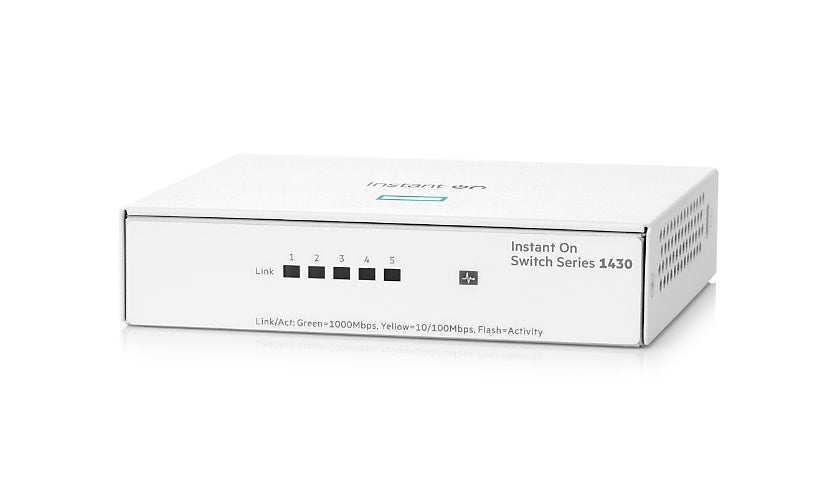

The HPE Networking Instant On 1430 (R8R44A) is an unmanaged switch you simply plug in, with five Gigabit RJ-45 ports. It is fanless, supports QoS for voice traffic and sits on a desk or mounts on a wall, with an external power adapter.
Key Features
- 5 x 10/100/1000 RJ-45 ports
- Unmanaged, plug and play
- QoS (DSCP), VoIP support
- Fanless
- Desktop or wall mount, external power adapter
Product Information
Brand: HPE
Manufacturer: Aruba Instant On
Product Line: HPE Networking Instant On
Model: 1430 5G Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Country: United States
Localization: English
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Remote Management: None
Performance: Latency (1 Gbps): 0.93 µs, Latency (100 Mbps): 3.81 µs, Switching capacity: 10 Gbps, Throughput: 7.44 Mpps
Capacity: MAC address entries: 8192
MAC Address Table Size: 8192 entries
Jumbo Frame Support: 9216 bytes
Features: 1MB packet buffer, Auto-sensing per device, DiffServ Code Point (DSCP) support, Fanless, Flow control, MDI/MDI-X switch, Spanning Tree Protocol (STP) support, VoIP support, Wall mountable
Connectivity
Ports: 5
Port Quantity: 5
Port Type: 10/100/1000
Interface Provided: 5 x 10/100/1000 Base-T RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Electric Current Required: 1 A
Memory and Processor
RAM Installed: 2 kilobyte
Memory Technology: EEPROM
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 90% (non-condensing)
MTBF: 525.8 Year
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Wall-mountable
Status Indicators: Link/activity, Port status
Dimensions and Weight
Height: 1 inch
Width: 4.6 inch
Depth: 3.7 inch
Weight: 9.52 ounce
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32 Class B, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CISPR 32:2015 Class B, CISPR 35, CNS 13438 Class B, EN 55032:2015 Class B, EN 55035, EN 61000-3-2, FCC CFR47 Part 15 B Class B, ICES-003 Class B, IEC 61000-3-2, IEC/EN 60825-1:2014 Class 2, IEC/EN 61000-3-3, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 62368-1, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, KS C 9832 Class B, KS C 9835, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, VCCI Class B
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime, Technical support - live chat - lifetime, Technical support - phone consulting - 90 days from date of purchase
