Product Information

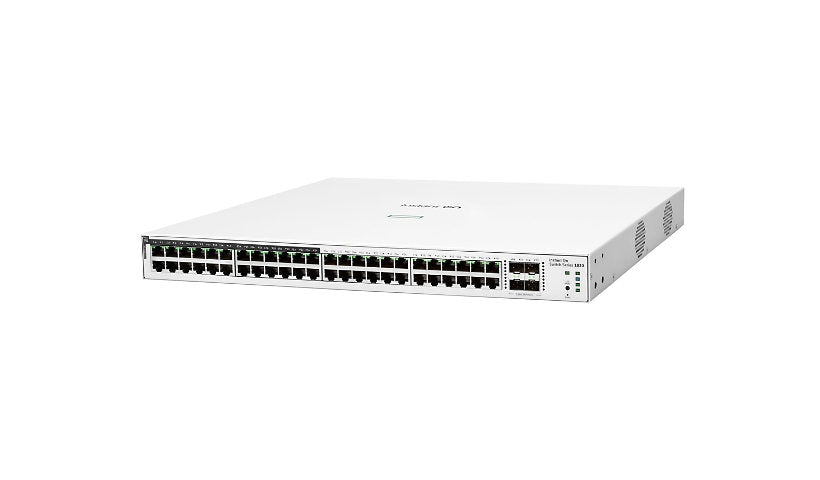

The HPE Networking Instant On 1830 (JL815A) is a smart-managed switch with 48 Gigabit ports, 24 of them PoE+, and four Gigabit SFP uplinks. It shares a 370 W PoE budget and is managed through the Instant On app or cloud portal, which keeps setup simple for small businesses.
Key Features
- 48 x Gigabit RJ-45 ports (24 PoE+)
- 4 x Gigabit SFP ports
- 370 W PoE budget
- Smart managed, cloud managed via Instant On
- 104 Gbps switching capacity
- Desktop or rack mount
Product Information
Brand: HPE
Manufacturer: Aruba Instant On
Product Line: HPE Networking Instant On
Model: 1830 48G 24p Class4 PoE 4SFP 370W Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Country: United States
Localization: English
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, HTTPS, ICMP, SCP, SNMP 1, SNMP 2c, TFTP
Routing Protocol: IGMP, IGMPv2
Encryption: SSL
Performance: Latency (1 Gbps): 2.8 µs, Latency (100 Mbps): 5.2 µs, Switching capacity: 104 Gbps, Throughput: 77.37 Mpps
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Features: 1.5MB packet buffer, Auto-negotiation, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), BPDU Filter, Cable Diagnostics Function, Class of Service (CoS), Cloud managed, Denial of Service (DoS) protection, DHCP client, Dual image support, Energy-Efficient Ethernet (EEE), Event log, Firmware upgradable, Flow control, Global Storm Control, IGMP snooping, Link Aggregation, LLDP support, Loop protection, Port mirroring, Port Scheduling, Quality of Service (QoS), Secure Copy (SCP), SNTP support, Spanning Tree Protocol (STP) support, Syslog support, Trusted Platform Module (TPM), VLAN support, Wall mountable
Smart: Yes
Connectivity
Ports: 48
Port Quantity: 24
Port Type: 10/100/1000
Ports (2nd) Quantity: 24
Ports Type (2nd): 10/100/1000 (PoE+)
Ports (3rd) Quantity: 4
Interface Provided: 24 x 1000Base-T RJ-45, 24 x 1000Base-T RJ-45 PoE+, 4 x Gigabit LAN SFP
Power Over Ethernet (PoE): PoE+
QSFP Slots: Gigabit SFP
Power
Device Type: Internal power supply
PoE Budget: 370 watt
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 800 megahertz
RAM Installed: 512 megabyte
Memory Technology: SDRAM
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (non-condensing)
MTBF: 83.5 Year
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Port duplex mode, Port status, Speed
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 13.8 inch
Weight: 10.89 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR 32 Class A, CISPR 35, CNS 13438 Class A, EN 55032:2015, EN 55035, EN 61000-3-3, FCC CFR47 Part 15 B Class A 2018, ICES-003 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, IEC/EN 60825-1:2014 Class 1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, KN32 Class A, KN35, UL 62368-1 Second Edition, UL 62368-1 Third Edition
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
