Product Information

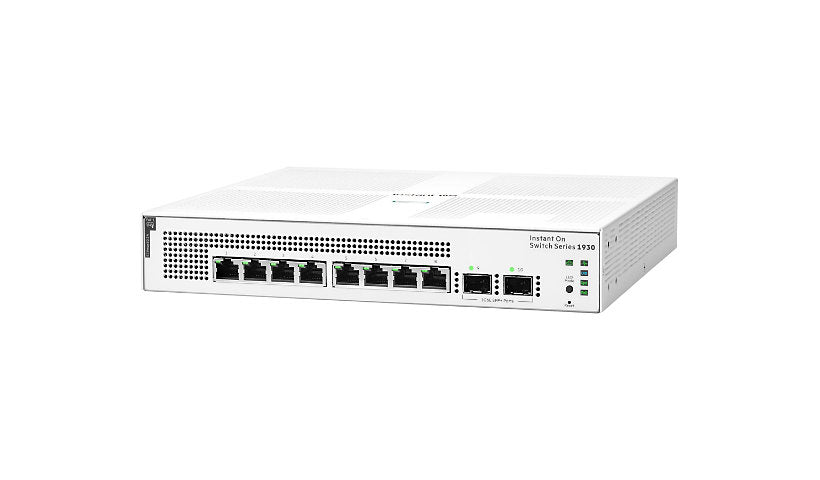

The HPE Networking Instant On 1930 (JL681A) is a managed switch with eight Gigabit PoE ports and two Gigabit SFP uplinks. It shares a 124 W PoE budget and you can manage it from the Instant On mobile app wherever you are. It suits small and growing businesses.
Key Features
- 8 x 10/100/1000 RJ-45 PoE ports (Class 4)
- 2 x Gigabit SFP ports
- 124 W PoE budget
- Managed, Layer 3 features, VLAN, ACL
- 512 MB RAM, 256 MB flash
- Rack mount
Product Information
Brand: HPE
Manufacturer: Aruba Instant On
Product Line: HPE Networking Instant On
Model: 1930 8G Class4 PoE 2SFP 124W Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, HTTPS, RADIUS, RMON, SNMP 1, SNMP 2c, SNMP 3, TFTP
Routing Protocol: Static IP routing
Authentication Method: RADIUS
Encryption: SSL
Performance: Latency (1 Gbps): 3 µs, Latency (100 Mbps): 5.2 µs, Switching capacity: 20 Gbps, Throughput: 14.88 Mpps
Capacity: Access Control Entries (ACEs) per ACL: 480, IPv4 routes (static): 32, Link aggregation ports: 8, Packet buffer size: 1.5 MB, VLANs supported: 256
MAC Address Table Size: 8000 entries
Jumbo Frame Support: 9216 bytes
Features: Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), BPDU Filter, Class of Service (CoS), DHCP support, Energy Efficient Ethernet, Flow control, Full duplex mode, Half duplex mode, IGMP snooping, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, Multiple Spanning Tree Protocol (MSTP) support, PoE Class 4, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Trusted Platform Module (TPM), VLAN support
Connectivity
Ports: 10
Port Quantity: 8
Port Type: 10/100/1000 (PoE)
Ports (2nd) Quantity: 2
Ports Type (2nd): Gigabit SFP
Interface Provided: 2 x Gigabit LAN SFP, 8 x 10/100/1000 Base-T RJ-45
Power Over Ethernet (PoE): PoE
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 150 watt
PoE Budget: 124 watt
Memory and Processor
Processor Brand: ARM
Processor Type: Cortex-A9
Processors Installed: 1
Clock Speed: 800 megahertz
RAM Installed: 512 megabyte
Memory Technology: SDRAM
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 15 - 95% (40 °C)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (60 °C)
MTBF: 95 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: PoE, Port status, Power
Dimensions and Weight
Height: 1.7 inch
Width: 10 inch
Depth: 10 inch
Weight: 2.56 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.2af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Compliant Standards: CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, CSA C22.2 No. 60950-1, EN 55024:2010, EN 55032:2015+AC:2016, EN 55035:2017, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 62368-1:2014, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014 Second Edition, SSL, UL 60950-1, UL 62368-1 Second Edition, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
