Product Information

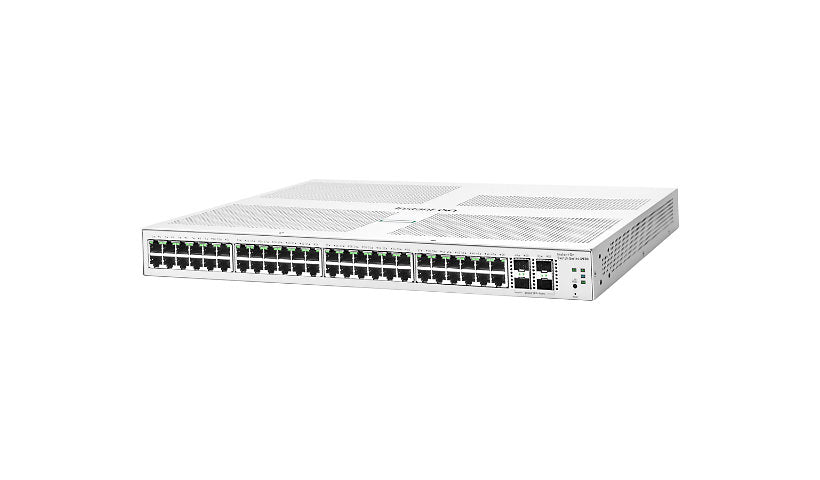

The HPE Networking Instant On 1930 (JL685A) is an L2+ managed switch with 48 Gigabit RJ-45 ports and four 1/10G SFP+ uplinks. It offers 176 Gbps of switching capacity and can be managed through the Instant On app on site or remotely.
Key Features
- 48 x 10/100/1000 RJ-45 ports
- 4 x 1/10G SFP+ uplinks
- 176 Gbps switching capacity
- L2+ managed, VLAN, ACL
- 512 MB RAM, 256 MB flash
- Rack mount
Product Information
Brand: HPE
Manufacturer: Aruba Instant On
Product Line: HPE Networking Instant On
Model: 1930 48G 4SFP/SFP+ Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 2+
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: DHCP, HTTP, HTTPS, IPv4, IPv6, RMON, SCP, SNMP, SNMP 2c, SNMP 3, TFTP
Routing Protocol: IGMP, IGMPv2, MSTP, RSTP, Static IPv4 routing, STP
Authentication Method: RADIUS
Encryption: SSL
Performance: Latency (1 Gbps): 2.2 µs, Latency (10 Gbps): 1.2 µs, Switching capacity: 176 Gbps, Throughput: 130.95 Mpps
Capacity: Routing table entries (static): 32
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9216 bytes
Features: 1.5MB packet buffer, Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Class of Service (CoS), DHCP support, Energy-Efficient Ethernet (EEE), Flow control, Full duplex mode, Half duplex mode, IGMP snooping, IPv4 support, IPv6 support, Jumbo Frames support, LACP support, Link Aggregation Control Protocol (LACP), LLDP support, LLDP-MED, Manageable, Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, SNMP support, Spanning Tree Protocol (STP) support, Trunking, Trusted Platform Module (TPM), VLAN support
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+
Interface Provided: 4 x Gigabit / 10Gbit LAN SFP+, 48 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Memory and Processor
Processor Brand: ARM
Processor Type: Cortex-A9
Processors Installed: 1
Clock Speed: 800 megahertz
RAM Installed: 512 megabyte
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (non-condensing)
MTBF: 114 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 11.1 inch
Weight: 6.9 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: CAN/CSA-C22.2 No. 60950-1, CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, EN 55024:2010, EN 55032:2015+AC:2016 Class A, EN 55035:2017, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 62368-1:2014, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1, UL 60950-1, UL 62368-1 Second Edition, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
