Product Information

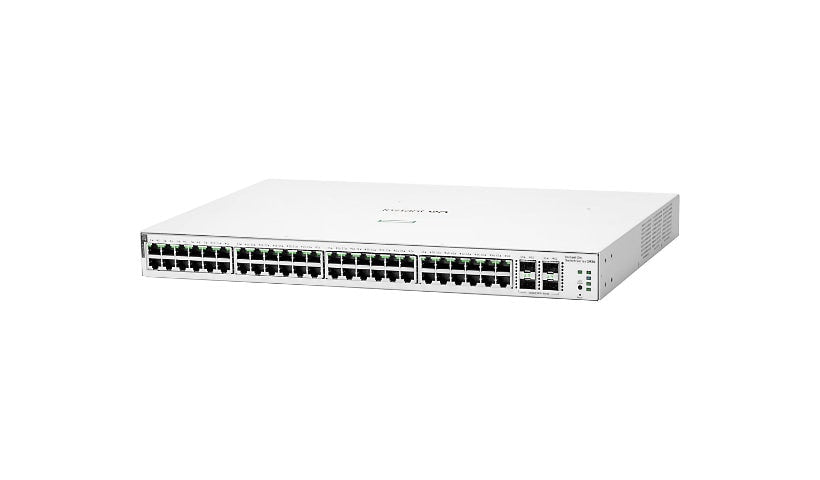

HPE's Networking Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W (JL686B) is a smart managed rack switch with 48 Gigabit PoE ports and four 1/10G SFP+ ports. It has a 370 W PoE budget, 176 Gbps of switching capacity and Layer 3 features, with cloud or local management.
Key Features
- 48 x 10/100/1000 RJ-45 Class 4 PoE ports
- 4 x 1/10G SFP+ ports
- 370 W PoE budget
- 176 Gbps switching, 130.95 Mpps
- Cloud or web managed, Layer 3 features
- Rack mount
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Networking Instant On
Model: 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Country: United Kingdom
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, HTTPS, RADIUS, RMON, SNMP 1, SNMP 2c, SNMP 3, TFTP
Routing Protocol: Static IP routing
Authentication Method: RADIUS
Encryption: SSL
Performance: Latency (1 Gbps): 2.2 µs, Latency (10 Gbps): 1.2 µs, Switching capacity: 176 Gbps, Throughput: 130.95 Mpps
Capacity: Access Control Entries (ACEs) per ACL: 480, IPv4 routes (static): 32, Link aggregation ports: 8, Packet buffer size: 1.5 MB, VLANs supported: 256
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Features: Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), BPDU Filter, Class of Service (CoS), DHCP support, Energy Efficient Ethernet, Flow control, Full duplex mode, Half duplex mode, IGMP snooping, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, Multiple Spanning Tree Protocol (MSTP) support, PoE Class 4, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Trusted Platform Module (TPM), VLAN support
Connectivity
Ports: 52
Port Quantity: 48
Port Type: 10/100/1000 (PoE)
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+
Interface Provided: 4 x 1/10Gbit LAN SFP+, 48 x 10/100/1000 Base-T RJ-45 PoE - 370 W
Power Over Ethernet (PoE): PoE
Power
Device Type: Internal power supply
Required Voltage: AC 100-127/200-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 460 watt
PoE Budget: 370 watt
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 800 megahertz
RAM Installed: 512 megabyte
Memory Technology: SDRAM
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 15 - 95% (40 °C)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (60 °C)
MTBF: 57 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: PoE, Port status, Power
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12.7 inch
Weight: 9.96 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.2af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Compliant Standards: CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, CSA C22.2 No. 60950-1, EN 55024:2010, EN 55032:2015+AC:2016, EN 55035:2017, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 62368-1:2014, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014 Second Edition, SSL, UL 60950-1, UL 62368-1 Second Edition, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
