Product Information

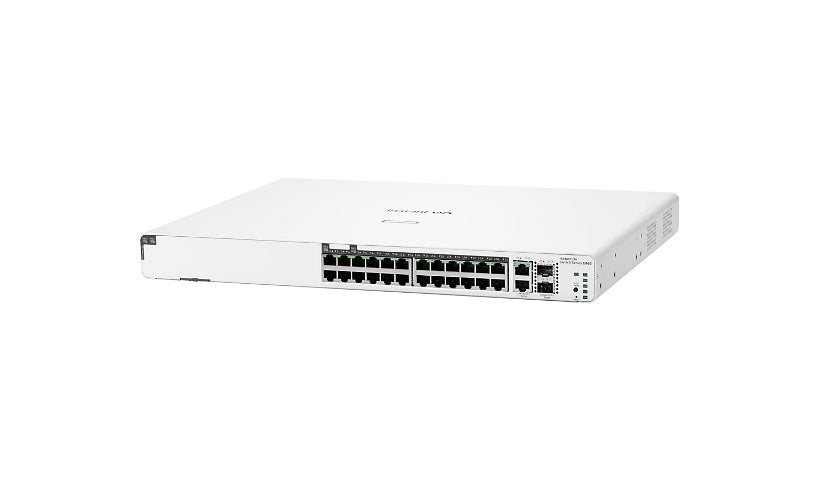

The HPE Networking Instant On 1960 (JL807A) is a stackable smart-managed switch with 24 Gigabit PoE ports (20 at Class 4, 4 at Class 6), two 10GBASE-T ports and two 10G SFP+ ports. It shares a 370 W PoE budget and offers 128 Gbps of switching capacity.
Key Features
- 24 x Gigabit RJ-45 PoE ports (20 Class 4, 4 Class 6)
- 2 x 10GBASE-T and 2 x 10G SFP+ ports
- 370 W PoE budget
- 128 Gbps switching capacity
- Smart managed, stackable
- Rack mount
Product Information
Brand: HPE
Manufacturer: Aruba Instant On
Product Line: HPE Networking Instant On
Model: 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Country: United States
Localization: English
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, HTTPS, RADIUS, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: Static IP routing
Authentication Method: RADIUS
Performance: Latency (1 Gbps): 2.2 µs, Latency (10 Gbps): 1.1 µs, Latency (100 Mbps): 4.4 µs, Switching capacity: 128 Gbps, Throughput: 95 Mpps
Capacity: IPv4 routes (static): 32, IPv6 routes (static): 32, MAC address entries: 16000
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Stackable: Stackable
Features: Access Control List (ACL) support, ARP support, Auto voice VLAN, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), BPDU Filter, Class of Service (CoS), DHCP support, Energy-Efficient Ethernet (EEE), Flow control, Full duplex mode, Half duplex mode, IPv6 support, Link Aggregation Control Protocol (LACP), Media Endpoint Discovery (LLDP-MED), Port mirroring, Spanning Tree Protocol (STP) support, Trusted Platform Module (TPM), VLAN support
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000
Ports (2nd) Quantity: 2
Ports Type (2nd): 10 Gigabit SFP+
Ports (3rd) Quantity: 2
Interface Provided: 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+, 2 x 10GBase-T RJ-45, 24 x 10/100/1000 Base-T RJ-45 370 W
Power Over Ethernet (PoE): PoE
QSFP Slots: 100/1000/10GBase-T
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
PoE Budget: 370 watt
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 800 megahertz
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 15 - 95% (40 °C)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: 65.3 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Port status, Power
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 13.8 inch
Weight: 10.36 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u
Compliant Standards: AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CISPR 32:2015 Class A, CISPR 35, CNS 13438 Class A, EN 55032:2015 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, FCC CFR47 Part 15 B Class A 2018, ICES-003 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC/EN 60825-1:2014 Class 2, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 62368-1, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, KN32 Class A, KN35, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
