Product Information

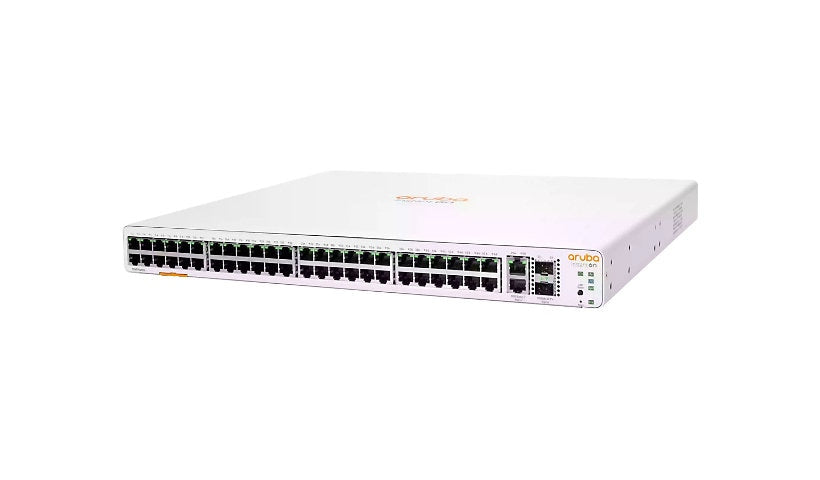

The HPE Networking Instant On 1960 (JL808A) is a stackable smart-managed switch with 48 Gigabit ports, two 10GBASE-T ports and two 10G SFP+ ports. It offers Layer 3 Lite routing and cloud management through the Instant On app, and fits on a desk or in a rack.
Key Features
- 48 x Gigabit RJ-45 ports
- 2 x 10GBASE-T and 2 x 10G SFP+ ports
- 176 Gbps switching capacity
- Layer 3 Lite, stackable
- Cloud managed via Instant On
- Desktop or rack mount, 80 W
Product Information
Brand: HPE
Manufacturer: Aruba Instant On
Product Line: HPE Networking Instant On
Model: 1960 48G 2XGT 2SFP+ Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3 Lite
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, HTTPS, RADIUS, RMON, SCP, SNMP 1, SNMP 2c, SNMP 3, TFTP
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, Static IPv4 routing
Authentication Method: RADIUS
Encryption: SSL
Performance: Latency (1 Gbps): 2.2 µs, Latency (10 Gbps): 1.1 µs, Latency (100 Mbps): 4.4 µs, Switching capacity: 176 Gbps, Throughput: 131 Mpps
Capacity: IPv4 routing table entries: 32, IPv6 routing table entries: 32
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Stackable: Stackable
Features: Access Control List (ACL) support, ARP filtering, Auto voice VLAN, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), BPDU Filter, Broadcast Storm Control, Cable Diagnostics Function, Class of Service (CoS), Cloud managed, DHCP client, DHCP relay, DHCP server, DHCP snooping, DNS client, DoS attack prevention, DSCP prioritization, Dual image support, Energy Efficient Ethernet, Firmware upgradable, Flow control, IGMP snooping, Ingress rate limiting, Internet Control Message Protocol (ICMP), IP source guard, IPv6 support, LLDP-MED, Loop protection, MLD snooping, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Port based access control, Port mirroring, Port Security, Protected ports, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, SNTP support, Spanning Tree Protocol (STP) support, Trusted Platform Module (TPM), Unicast Storm Control, VLAN support, Weighted Round Robin (WRR)
Smart: Yes
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000
Ports (2nd) Quantity: 2
Ports Type (2nd): 10 Gigabit SFP+
Ports (3rd) Quantity: 2
Interface Provided: 2 x 10Gbit LAN RJ-45, 2 x 10Gbit LAN SFP+, 48 x Gigabit LAN RJ-45
QSFP Slots: 10 Gigabit Ethernet
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 80 watt
Memory and Processor
Processors Installed: 1
Clock Speed: 800 megahertz
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (non-condensing)
MTBF: 109.4 Year
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Status Indicators: Port status
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 13.8 inch
Weight: 9.7 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA-C22.2 No. 62368-1, CISPR 35, CNS 13438 Class A, EN 55032/CISPR 32 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 62368-1, EN 62368-1 Second Edition, EN 62368-1 Third Edition, EN/IEC 60825-1:2014 Class 4, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC 62368-1, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, KN32 Class A, KN35, Plug and Play, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
