Product Information

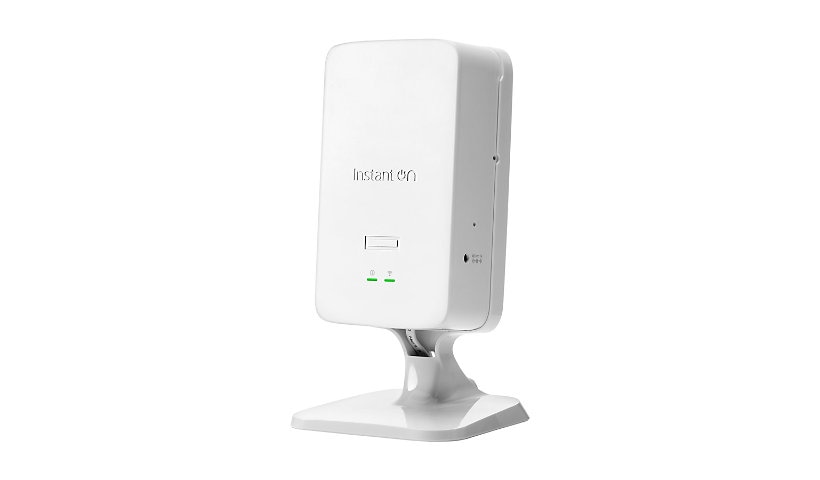

The HPE Networking Instant On AP22D (S0J32A) is a Wi-Fi 6 access point for small businesses with a 2.5G PoE uplink and four Gigabit downlink ports to connect phones or printers. It offers 2x2 MIMO up to 1.7 Gbps and comes with desk and wall-box mounts.
Key Features
- Wi-Fi 6 dual band, 2x2 MIMO
- Up to 1.7 Gbps
- 2.5G PoE uplink
- 4 x Gigabit downlink ports
- Instant On management
- Desk and wall-box mounts
Product Information
Brand: HPE
Manufacturer: Aruba Instant On
Product Line: HPE Networking Instant On
Model: AP22D (US)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: PPPoE
Encryption: Opportunistic Wireless Encryption (OWE), WPA2, WPA3
Data Transfer Rate: 1.7 GBps
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
Network Device: Aggregate switching capacity: 900 Mbps, Aggregate wireless throughput: 1.7 Gbps, Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1.2 Gbps
Antennas: 2
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 2x2 MIMO technology, Advanced Cellular Coexistence (ACC), BSS Coloring, Low Density Parity Check (LDPC), MU-MIMO technology, PoE Class 4, PoE Class 6, Reset button, Security slot (Kensington security lock compatible), Static IP mode, Target Wait Time (TWT), Transmit Beamforming, Trusted Platform Module (TPM)
Connectivity
Interface Provided: 1 x 2.5GBase-T (uplink, PoE) - RJ-45, 4 x 1000Base-T (downlink) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Device Type: External power adapter
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
MTBF: 88 Year
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Desktop/Wall Mountable
Status Indicators: Status, Wireless
Dimensions and Weight
Height: 5.9 inch
Width: 3.4 inch
Depth: 1.9 inch
Weight: 12.7 ounce
Included Items
Included Accessories: Desk mount kit, Gang wall-box mount kit
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years, Technical support - phone consulting - 90 days
Service Activation: No
