Product Information

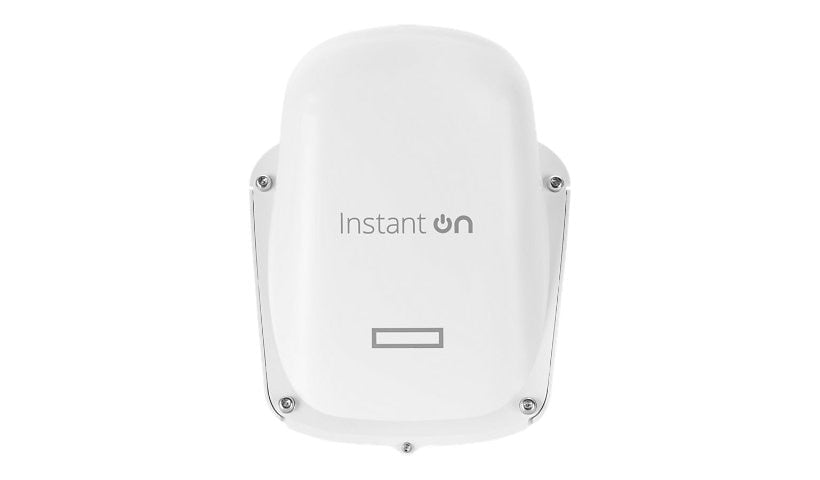

The HPE Networking Instant On AP27 (S1T36A) is a dual radio outdoor Wi-Fi 6 access point in a tough IP67 casing, supporting up to 75 users with semi-directional antennas. It works from -40 to 149 °F, has a Gigabit PoE uplink and includes a ceiling/wall bracket. The power injector is not included.
Key Features
- Wi-Fi 6 dual band, 2x2 MIMO
- Up to 75 users
- IP67, -40 to 149 °F
- Gigabit RJ-45, PoE Class 4
- Instant On management
- Ceiling/wall bracket included
Product Information
Brand: HPE
Manufacturer: Aruba Instant On
Product Line: HPE Networking Instant On
Model: AP27 (US)
Product Type: Wireless access point
Device Type: Power injector (not included)
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: PPPoE
Encryption: Opportunistic Wireless Encryption (OWE), WPA2, WPA3
Line Coding Format: 1024 QAM
Capacity: Recommended number of devices: 75
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
Network Device: Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1.2 Gbps
Antennas: 2
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 2x2 MIMO technology, Advanced Cellular Coexistence (ACC), BSS Coloring, Low Density Parity Check (LDPC), MU-MIMO technology, PoE Class 4, Reset button, Security slot (Kensington security lock compatible), Static IP mode, Target Wait Time (TWT), Transmit Beamforming, Trusted Platform Module (TPM)
Connectivity
Interface Provided: 1 x 1000Base-T (uplink) - RJ-45
Power Over Ethernet (PoE): PoE
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
MTBF: 248 Year
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: Wall / ceiling mountable
Status Indicators: Status, Wireless
Dimensions and Weight
Height: 4.7 inch
Width: 7.1 inch
Depth: 9.1 inch
Weight: 2.58 lbs
Included Items
Included Accessories: Ceiling/wall mount bracket
Certifications and Listing
Compliant Standards: IP67
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
