Product Information

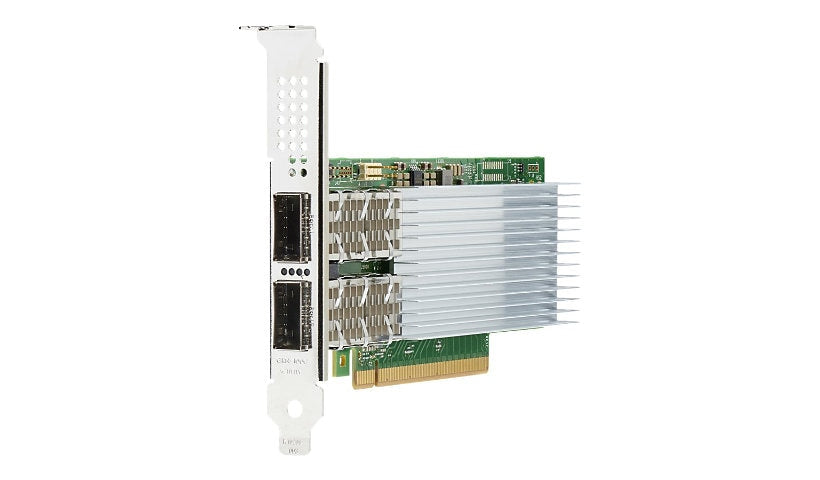

This HPE Intel E810-CQDA2 adapter (P21112-B21) is a dual port 100 Gigabit QSFP28 card on a PCIe 4.0 x16 interface for HPE Gen10 Plus servers. It supports RoCE v2 and iWARP RDMA, SR-IOV, NPAR, DPDK, DDIO, tunnel offloads and iSCSI and PXE boot, with hardware root of trust, secure boot and sanitization. It draws about 16.9 W. Listed systems include the Edgeline e920 and ProLiant DL325, DL345, DL360, DL380 and DL385 Gen10 Plus.
Key Features
- Intel E810 controller
- 2 x 100GbE QSFP28 ports
- PCIe 4.0 x16
- RoCE v2 and iWARP
- Hardware root of trust
- For HPE Gen10 Plus servers
Product Information
Brand: Intel
Manufacturer: Hewlett-Packard
Product Line: Intel
Model: E810-CQDA2
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 100 Gigabit Ethernet
Network Standard: iSCSI, iWARP, TCP/IP
Data Transfer Rate: 100 GBps
Features: Audit logs, Data Direct I/O Technology (DDIO), Data Plane Development Kit (DPDK), GENEVE support, Hardware root of trust, IPv4 support, IPv6 support, iSCSI boot, iWARP support, Network Partitioning (NPAR), Network Virtualization using Generic Routing Encapsulation (NVGRE), PXE support, RDMA over Converged Ethernet (RoCE) v2, Receive Side Scaling (RSS), Sanitization, Secure Boot, Single Root I/O Virtualization (SR-IOV), Tunnel offload, UEFI support, Virtual Extensible LAN (VXLAN), VMQueue, Wake On LAN (WOL)
Connectivity
PCI Specification Revision: PCIe 4.0
Port Quantity: 2
Interface Provided: 2 x 100Gb Ethernet - QSFP28
Network & Adapter Ports: 100 Gigabit QSFP28
Host Interface: PCI Express 4.0 x16
Power
Power Consumption Operational: 16.9 watt
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Height: 2.4 inch
Width: 8.5 inch
Depth: 9.7 inch
Weight: 11.64 ounce
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
