Product Information

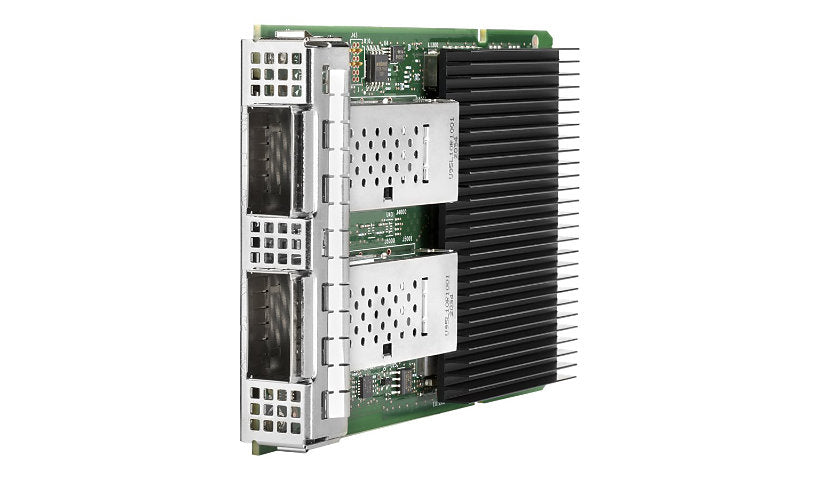

This HPE Intel E810-CQDA2 adapter (P22767-B21) is a dual port 100 Gigabit QSFP28 card in the OCP 3.0 form factor for HPE Gen10 Plus servers. It supports RoCE v2 and iWARP for RDMA, plus SR-IOV, NPAR, DPDK, DDIO, tunnel offloads and iSCSI and PXE boot. Security features include hardware root of trust, secure boot and sanitization, and it draws about 15.9 W. Listed systems include the Edgeline e920 and e920d and ProLiant DL110, DL325, DL345, DL360, DL380 and DL385 Gen10 Plus.
Key Features
- Intel E810 controller
- 2 x 100GbE QSFP28 ports
- OCP 3.0 form factor
- RoCE v2 and iWARP
- Hardware root of trust
- For HPE Gen10 Plus servers
Product Information
Brand: Intel
Manufacturer: Hewlett-Packard
Product Line: Intel
Model: E810-CQDA2
Product Type: Network adapter
Compatibility Specs: HPE Edgeline e920, e920d ¦ HPE ProLiant DL110 Gen10 Plus Front Cabled Telco, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus, DL345 Gen10 Plus Entry, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL360 Gen10 Plus for Weka Base Tracking, DL360 Gen10 Plus Network Choice, DL365 Gen10 Plus, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, DL385 Gen10 Plus V2, DL385 Gen10 Plus V2 Base, DL385 Gen10 Plus V2 Entry
Packaged Quantity: 1
Color Category: Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 100 Gigabit Ethernet
Network Standard: iSCSI, iWARP, TCP/IP
Data Transfer Rate: 100 GBps
Features: Audit logs, Data Direct I/O Technology (DDIO), Data Plane Development Kit (DPDK), GENEVE support, Hardware root of trust, IPv4 support, IPv6 support, iSCSI boot, iWARP support, Network Partitioning (NPAR), Network Virtualization using Generic Routing Encapsulation (NVGRE), PXE support, RDMA over Converged Ethernet (RoCE) v2, Receive Side Scaling (RSS), Sanitization, Secure Boot, Single Root I/O Virtualization (SR-IOV), Tunnel offload, UEFI support, Virtual Extensible LAN (VXLAN), VMQueue, Wake On LAN (WOL)
Connectivity
PCI Specification Revision: PCIe 4.0
Port Quantity: 2
Interface Provided: 2 x 100Gb Ethernet - QSFP28
Network & Adapter Ports: 100 Gigabit QSFP28
Host Interface: Open Compute Project mezzanine (OCP) 3.0
Power
Power Consumption Operational: 15.9 watt
Physical Characteristics
Form Factor: Plug-In Card
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
