Product Information

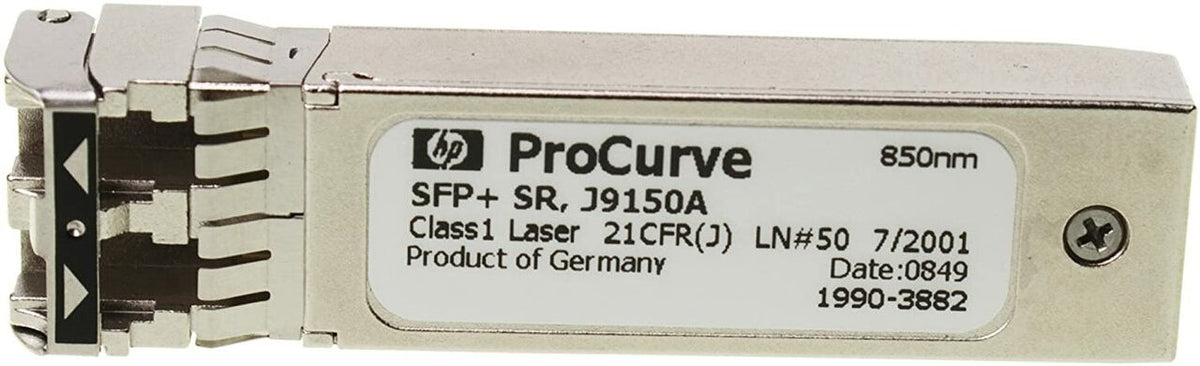

The HPE J9150-69101 is the X132 10GbE SFP+ short range (SR) transceiver for multimode fiber, with an LC connector.
Key Features
- 10GBASE-SR, 850nm, IEEE 802.3ae
- Up to 300m on OM3 and 400m on OM4 multimode fiber
- Diagnostic monitoring interface
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: J9150-69101
Option Part Number: J9150A
Spare Part Number: J9150-69101
General
Device Type: SFP+ Transceiver Module
Form Factor: Plug-in module
Networking
Connectivity Technology: Wired
Cabling Type: 10GBase-SR
Data Link Protocol: 10 GigE
Ports: 1 LC 10-GbE Port(IEEE 802.3ae Type 10Gbase-SR), Duplex: Full Only
Optical Wave Length: 850 nm
Max Transfer Distance: 984 ft
Compliant Standards: IEEE 802.3ae
Expansion & Connectivity
Interfaces: 1 x Ethernet 10GBase-SR - LC multi-mode
Compatible Slots: 1 x SFP+
Cabling Distance (Maximum): 62.5 µm Multimode Cable @ 160 MHz*km = 2-26 m, 62.5 µm Multimode Cable @ 200 MHz*km = 2-33 m, 50 µm Multimode Cable @ 400 MHz*km = 2-66 m, 50 µm Multimode Cable @ 500 MHz*km = 2-82 m, 50 µm Multimode Cable @ 2000 MHz*km = 2-300 m
Dimensions & Weight
Width: 0.54 inch
Depth: 2.19 inch
Height: 0.47 inch
Weight: 0.04 lbs
Environmental Parameters
Min Operating Temperature: 32 °F (0 °C)
Max Operating Temperature: 158 °F (70 °C)
Operating
Altitude: up to 10000 ft.
Operating Humidity Range: 0 to 85% (noncondensing)
Compatible Systems
- HPE 6120XG Blade Switch, 6600-24G-4XG Switch, 6600-48G-4XG Switch
Not sure this transceiver fits your equipment? Send us your switch, server or storage model and the DatorPro team will confirm compatibility before you order.
