Product Information

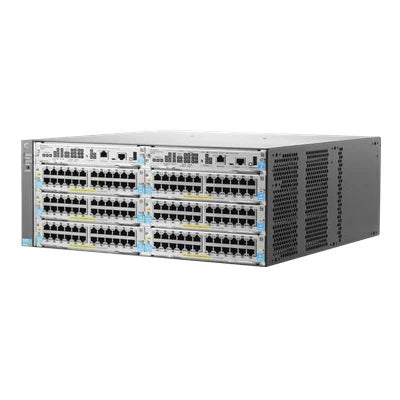

The HPE J9821A is the Aruba 5406R zl2, a 6 slot, 4U modular Layer 3 switch chassis for enterprise edge and SMB or branch core networks. It ships with a 5400R zl2 management module (J9827A) and a 5406R zl2 fan tray (J9831A); power supplies are ordered separately.
Key Features
- Built on the 6th generation ProVision ASIC with a 2 Tbps crossbar fabric and low latency
- Across the series: line rate 40GbE uplinks, as many as 96 line rate 10GbE ports (SFP+ or 10GBASE-T) and as many as 288 PoE+ ports
- HPE Smart Rate multi-gigabit ports for fast 802.11ac access points
- Layer 2 and 3 features including IPv6, BGP, OSPF, VRRP, policy based routing and Tunnel Node, with no software licensing
- Hot swap modules, redundant management and optional redundant power supplies
- Virtual Switching Framework (VSF) joins two switches into one logical device
- 802.1X, MAC and Web authentication, MACsec on select modules, and protection features like ARP protection, IP source guard and DHCP snooping
- Security and management through Aruba ClearPass Policy Manager, AirWave, and Aruba Central in the cloud
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: J9821A
Model: Aruba 5406R zl2 Switch
Option Part Number: J9821A
Spare Part Number: J9821-61001
General
Device Type: Switch - Managed
Enclosure Type: Rack-Mountable 4U
Encryption Algorithm: SSL
Subtype: Gigabit Ethernet
Included Accessories: 1 Aruba 5400R zl2 Management Module (J9827A), 1 Aruba 5406R zl2 Switch Fan Tray (J9831A)
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features: VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, half duplex mode, full duplex mode, sFlow, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), LLDP support, Port Security, DHCP protection, Class of Service (CoS), sFlow v5, Generic Attribute Registration Protocol (GARP), Type of Service (ToS)
Power Over Ethernet (PoE): PoE+
Compliant Standards: IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Remote Management Protocol: SNMP 1, RMON 2, RMON, SNMP 3, SNMP 2c, HTTP, SSH-2, CLI, XRMON
Routing Protocol: OSPF, RIP-1, RIP-2, BGP, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3
Expansion & Connectivity
I/O Ports and Slots: 6 Open Module Slots (Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination)
Expansion Slots: 6 (total) / 6 (free) x Expansion Slot
Performance
1000 Mb Latency: < 2.8 μs (FIFO 64-byte packets)
10 Gbps Latency: < 1.8 μs (FIFO 64-byte packets)
40 Gbps Latency: < 1.5 μs (FIFO 64-byte packets)
Throughput: up to 571.4 Mpps
Routing/Switching Capacity: 960 Gbps
Switch Fabric Speed: 1015 Gbps
IPv4 Routing Table Size: 10000 entries
IPv6 Routing Table Size: 5000 entries
MAC Address Table Size: 64000 entries
Dimensions & Weight
Rack Units: 4U
Width: 17.50 inch (44.45 cm)
Height: 6.91 inch (17.53 cm)
Depth: 17.75 inch (45.09 cm)
Weight: 24.50 lbs (11.11 kg) Memory and Processor Management Module
Freescale P2020 dual core @ 1.2 GHz
16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM v3 Gigabit Module
Dual ARM® Coretex A9 @ 1 GHz
Packet buffer size: 13.5 MB internal v2 Gigabit Module
ARM11 @ 450 MHz
Packet buffer size: 18 MB internal v3 10G Module
Dual ARM Coretex A9 @ 1 GHz
Packet buffer size: 13.5 MB internal v2 10G Module
ARM11 @ 550 MHz
Packet buffer size: 18 MB internal v3 40G Module
Dual ARM Coretex A9 @ 1 GHz
Packet buffer size: 13.5 MB internal
Power Supply
Power Supply Slots: 2
Minimum Power Supply Required: 1
Installed Qty: 0 (installed) / 2 (max)
Power Device: Internal power supply
Environmental Parameters
Operating Relative Humidity: 15% to 95% @ 113°F (45°C) (non-condensing)
Nonoperating/Storage Relative Humidity: 15% to 95% @ 149°F (65°C) (non-condensing)
Min Operating Temperature: 0°C (32°F)
Max Operating Temperature: 45°C (113°F)
Min Nonoperating/Storage Temperature: -40°C (-40°F)
Max Nonoperating/Storage Temperature: 70°C (158°F)
Altitude: up to 10,000 ft (3 km)
Acoustic Power: 44 dB (ISO 7779, ISO 9296)
Acoustic Pressure: 31.7 dB (ISO 7779, ISO 9296)
Electrical Characteristics
Frequency: 50/60 Hz
80plus.org Certification: Gold
Maximum Heat Dissipation: 2450 BTU/hr (2584 kJ/hr), (max. non-PoE); 3700 BTU/hr (3903 kJ/hr) (max. using PoE)
Voltage: 100-127V AC / 200-240V AC, rated (depending on power supply chosen)
Miscellaneous
Compliant Standards: FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, FCC Part 15, EN 61000-4-11
Safety: CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950
Emissions: FCC part 15 Class A; EN 55022/CISPR 22 Class A
Included Accessories: Fan Tray (1 x J9831A 1 fan tray slot)
Rack Mounting Kit: Included
Immunity EN: EN 55024, CISPR 24
ESD: IEC 61000-4-2; 4 kV CD, 8 kV AD; HPE ENV. 765.002
Radiated: IEC 61000-4-3; 3 V/m
EFT/Burst: IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) IEC 61000-4-5; 1 kV/2 kV AC, 1 kV signal, 0.5 kV DC
Surge: IEC 61000-4-6; 3 Vrms
Conducted: IEC 61000-4-8; 1 A/m, 50 or 60 Hz
Power Frequency Magnetic Field: IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods
Harmonics: EN 61000-3-2, IEC 61000-3-2
Flicker: EN 61000-3-3, IEC 61000-3-3
