Product Information

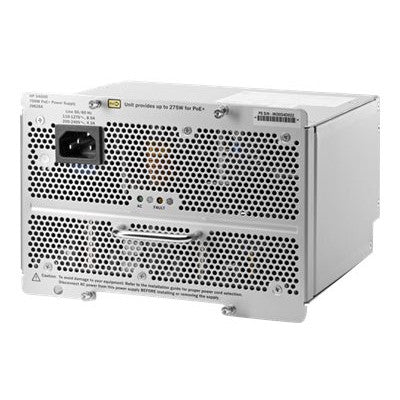

The HPE J9828-61001 is a 700 watt PoE+ internal power supply for Aruba 5400R zl2 switches, with up to 275 watts available for PoE devices. It sets itself to the incoming power automatically, from 100-127V or 200-240V AC at 50 or 60 Hz.
Key Features
- Redundancy: if one supply fails, the others keep a fully loaded 5400R zl2 switch running
- Load sharing: two installed supplies split the load, which extends the life of both
- Hot swap: add or replace a supply without shutting down or rebooting the switch
- Fault detection: problems show on the switch Power Status and Fault LEDs and the supply's own Fault LED, and are logged in the console event log and web Alert log
- Green Power LED and orange Fault LED on the supply
- Can share a switch with J9829A and J9830A supplies (mixing is supported but not recommended)
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: J9828-61001
Option Part Number: J9828A
Spare Part Number: J9828-61001
General
Product Type: Power Supply - Plug-in Module
Power
Output Capacity: 700 Watt
Input Voltage: 100 - 127 Volts AC / 200 - 240 Volts AC
Maximum Current: 8.5 A Max / 4.3 A Max
Frequency Range: 50/60 Hz
PoE Output Wattage (MAX): 275 Watt
Certifications
Safety Standard: EN60950, CSA 22.2 No. 60950, IEC 60959, UL 60950
Size and Weight
Width: 18.92 cm (7.45 inch)
Depth: 15.87 cm (6.25 inch)
Height: 12.95 cm (5.10 inch)
Weight: 2.44 kg (5.38 lbs)
Environment
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 15% to 85% at 40°C (104°F) (non-condensing)
Non-Operating Relative Humidity: 15% to 90% at 65°C (149°F) (non-condensing)
Operating Maximum Altitude: 3.0 km (10,000 ft)
Non-Operating Maximum Altitude: 4.6 km (15,000 ft)
Compatible Systems
- HPE Aruba 5406R 8-port 1/2.5/5/10GBASE-T PoE+ / 8-port SFP+ (No PSU) v3 zl2 (700 Watt)
- HPE Aruba 5406R-44G-PoE+/2SFP+ v2 zl2 (700 Watt)
- HPE Aruba 5406R-44G-PoE+/4SFP v2 zl2 (700 Watt)
- HPE Aruba 5412R 92GT PoE+ / 4SFP+ (No PSU) v3 zl2 (700 Watt)
- HPE Aruba 5412R-92G-PoE+/2SFP+ (No PSU) v2 zl2 (700 Watt)
- HPE Aruba 5412R-92G-PoE+/2SFP+ v2 zl2 (700 Watt)
- HPE Aruba 5412R-92G-PoE+/4SFP v2 zl2 (700 Watt)
Not sure this power supply fits your switch? Send us your switch model and the DatorPro team will confirm compatibility before you order.
