Product Information

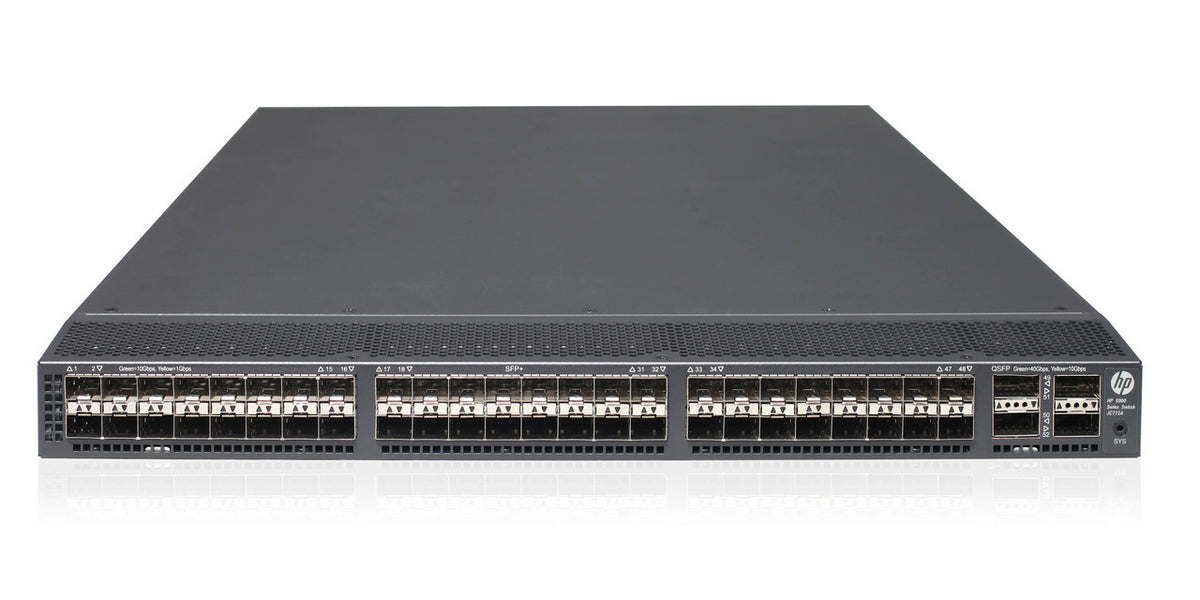

The HPE JC772A is from the HPE 5900AF switch series, a 1U top of rack managed switch with 48 x 1/10GbE ports and 4 x 40GbE QSFP+ uplinks for dense 10GbE server edge deployments.
Key Features
- 48 x 1/10GbE ports + 4 x 40GbE QSFP+ uplinks
- 128000 entry MAC address table
- QoS, jumbo frames and Layer 2/3 support
- 1 RJ-45 serial console port
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
Model: JC772A
MPN: JC772A
General
Device Type: Switch - 48 ports - managed
Enclosure Type: Rack-mountable - 1U
Subtype: 10 Gigabit Ethernet
Ports:48 x 10/100/1000/10000 + 4 x 40 Gigabit QSFP+
Performance:
Throughput : 952 Mpps
Routing/switching capacity : 1280 Gbps
Capacity:
Routing table entries : 16000
MAC Address Table Size: 128K entries
Jumbo Frame Support: Yes
Routing Protocol: OSPF, BGP-4, RIP-1, RIP-2, BGP, VRRP, OSPFv2, static IP routing, ECMP
Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, CLI
Authentication Method: Secure Shell (SSH), Secure Shell v.2 (SSH2)
Features: DHCP support, ARP support, VLAN support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Weighted Random Early Detection (WRED), Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an
RAM: 2 GB - SDRAM
Flash Memory: 512 MB
Expansion & Connectivity
Interfaces: 48 x 10Gb Ethernet - SFP+ 4 x 40Gb Ethernet - QSFP+ 1 x console - RJ-45 - management 1 x USB 2.0 - Type A 1 x RJ-45 - management
Power
Power Device: Internal power supply - hot-plug
Installed Qty: 0 (installed) / 2 (max)
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 260 Watt
Miscellaneous
Compliant Standards: GOST, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, NOM, VCCI Class A ITE, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, FDA, CSA C22.2 No. 60950-1, EN 60825-1
Dimensions & Weight
Width: 17.3 in
Depth: 26 in
Height: 1.7 in
Weight: 28.7 lbs
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 10 - 90% (non-condensing)
Not sure this fits your network? Send us your switch or enclosure model and the DatorPro team will confirm compatibility before you order.
