Product Information

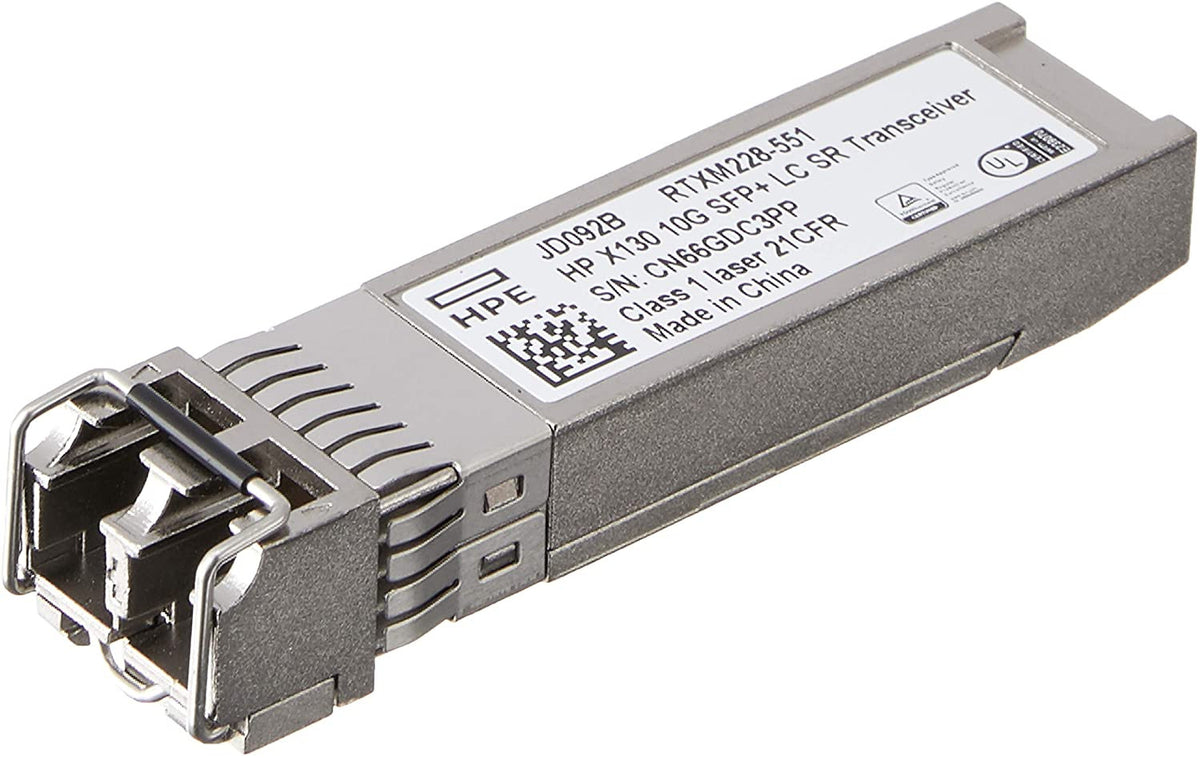

The HPE JD092-61201 is the X130 10Gb SFP+ short range (SR) transceiver for multimode fiber, at 850nm with an LC connector.
Key Features
- 10GBASE-SR, 850nm, LC connector
- Reach listed as 550m / 980 ft
- Operates from 23 to 185 °F
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: JD092-61201
Option Part Number: JD092B
Spare Part Number: JD092-61201
General
Device Type: SFP+ transceiver module
Form Factor: Plug-in module
Networking
Connectivity Technology: Wired
Cabling Type: 10GBase-SR
Data Link Protocol: 10 GigE
Data Transfer Rate: 10 Gbps
Expansion & Connectivity
Interfaces: 1 x Ethernet 10GBase-SR - LC
Compatible Slots: 1 x SFP+
Miscellaneous
Compliant Standards: EN 60950, RoHS, EN 60825, FDA, MSA
Environmental Parameters
Min Operating Temperature: 23 °F
Max Operating Temperature: 185 °F
Compatible Systems
- HPE A5830AF-48G Switch
- HPE 12504 AC Switch Chassis, 5120-48G-PoE+ EI Switch with 2 Interface Slots, 5500-24G-PoE+-4SFP HI Switch with 2 Interface Slots, 5500-24G-SFP HI Switch with 2 Interface Slots, 5500-48G-4SFP HI Switch with 2 interface Slots, 5810-48G Switch, 5900AF-48G-4XG-2QSFP+ Switch, 5900AF-48XG-4QSFP+ Switch, 5900AF-48XGT-4QSFP+ Switch, 5920AF-24XG Switch
- HPE FlexFabric 1.92 Tbps Type D Fabric Module, 11908-V Switch Chassis, 12902E Switch Chassis
Not sure this transceiver fits your equipment? Send us your switch, server or storage model and the DatorPro team will confirm compatibility before you order.
