Product Information

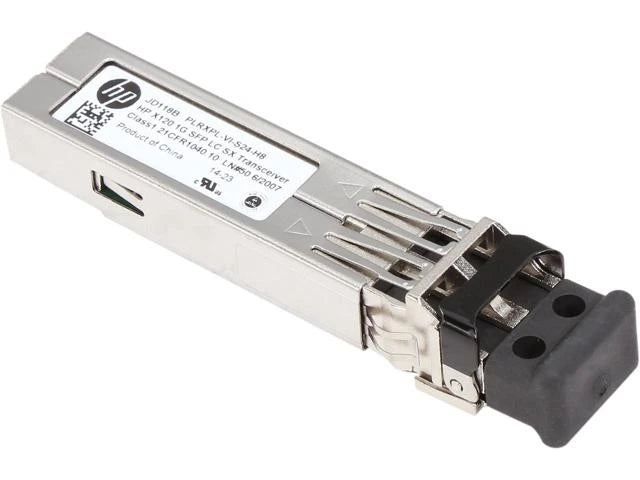

The HPE JD118B is the X120 1Gb SFP (mini-GBIC) transceiver for 1000BASE-SX over multimode fiber, at 850nm with an LC connector.
Key Features
- 1000BASE-SX, 850nm, LC connector
- Up to 550m on multimode fiber
- Hot pluggable, so it can be swapped without powering down
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: JD118B
Option Part Number: JD118B
Spare Part Number: JD118-61201
General
Device Type: SFP (mini-GBIC) transceiver module
Form Factor: Plug-in module
Networking
Connectivity Technology: Wired
Cabling Type: 1000Base-SX
Data Link Protocol: Gigabit Ethernet
Data Transfer Rate: 1 Gbps
Expansion & Connectivity
Interfaces: 1 x Ethernet 1000Base-SX - LC
Compatible Slots: 1 x SFP (mini-GBIC)
Product Dimensions & Weight
Height: 0.46 (1.17 cm)
Width: 0.60 inch (1.52 cm)
Depth: 2.17 inch (5.51 cm)
Weight: 0.04 lbs (0.02 kg)
Compatible Systems
- HPE 10512 Switch Chassis, 12504 AC Switch Chassis, 1910-16G Switch, 1910-24G Switch, 1910-24G-PoE (170 W) Switch, 1910-24G-PoE (365 W) Switch, 1910-48G Switch, 1910-8G Switch, 1910-8G-PoE+ (180W) Switch, 1910-8G-PoE+ (65W) Switch, 3100-16 DC EI Switch, 3100-16 EI Switch, 3100-16-PoE EI Switch, 3100-24 DC EI Switch, 3100-24 EI Switch, 3100-24 V2 EI Switch, 3100-24-PoE EI Switch, 3100-24-PoE v2 EI Switch, 3100-48 Switch, 3100-8 DC EI Switch, 3100-8 EI Switch, 3100-8 v2 SI Switch, 3100-8-PoE EI Switch, 3100-8-PoE v2 EI Switch, 3600-24 EI Switch, 3600-24 SI Switch, 3600-24 v2 EI Switch, 3600-24-PoE EI Switch, 3600-24-PoE SI Switch, 3600-24-PoE+ v2 EI Switch, 3600-24-PoE+ v2 SI Switch, 3600-24-SFP EI Switch, 3600-24-SFP v2 EI Switch, 3600-24TP SI Switch, 3600-48 EI Switch, 3600-48 SI Switch, 3600-48-PoE EI Switch, 3600-48-PoE SI Switch, 3600-48-PoE+ v2 SI Switch, 3610-24 Switch, 3610-24-SFP Switch, 3610-24-TP Switch, 3610-48 Switch, 4200-12G Switch, 4500-24 Switch, 4500-24-PoE Switch, 4500-48 Switch, 4500-48-PoE Switch, 5120-16G SI Switch, 5120-24G SI Switch, 5120-24G-PoE+ SI Switch, 5120-48G-PoE+ EI Switch with 2 Interface Slots, 5500-24G-PoE+-4SFP HI Switch with 2 Interface Slots, 5500-24G-SFP HI Switch with 2 Interface Slots, 5500-48G-4SFP HI Switch with 2 interface Slots, 5810-48G Switch, 5820AF-24XG, 5830AF-48G Switch with 1 Interface Slot, 5830AF-96G Switch, 5920AF-24XG Switch, 7506, A5120-24G-PoE+ SI Switch, A5120-48G SI Switch, E4500-24-PoE, WX5002 Access Controller, WX5004 Access Controller
- HPE FlexFabric 1.92 Tbps Type D Fabric Module, 11908-V Switch Chassis
Not sure this transceiver fits your equipment? Send us your switch, server or storage model and the DatorPro team will confirm compatibility before you order.
