Product Information

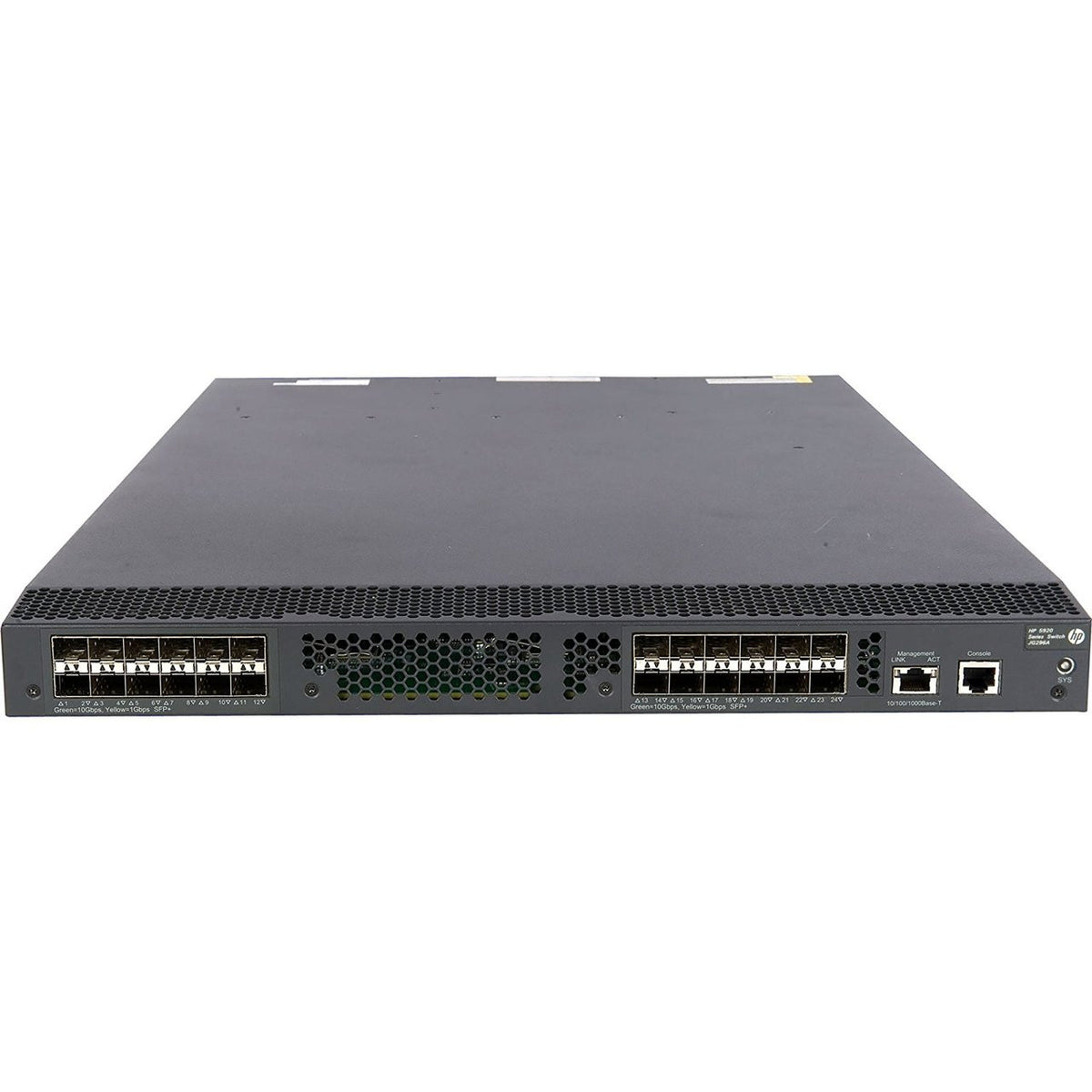

The HPE JG296A is the HPE 5920AF-24XG, a 1U top of rack managed switch with 24 x 1/10GbE SFP+ ports. It is well suited to content delivery.
Key Features
- 24 x 1/10GbE SFP+ ports
- Very deep packet buffers, up to 3.6 GB
- Reversible airflow and low power use
- HPE IRF technology, TRILL and VEPA ready
- 128000 entry MAC address table
- Serial console and out-of-band management ports
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: JG296A
Model: JG296A
General
Device Type: Switch - 24 Ports - Managed
Enclosure Type: Rack-mountable - 1U
Subtype: 10 Gigabit Ethernet
Ports: 24 x 1 Gigabit / 10 Gigabit SFP+
Performance
Throughput: 367 Mpps
Routing/switching capacity : 480 Gbps
Capacity:
Routing table entries : 16000
MAC Address Table Size: 128K entries
Jumbo Frame Support: Yes
Routing Protocol: OSPF, BGP-4, RIP-1, RIP-2, BGP, VRRP, OSPFv2, static IP routing, ECMP
Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Authentication Method: Secure Shell (SSH), Secure Shell v.2 (SSH2)
Features: DHCP support, ARP support, VLAN support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS)
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)
RAM: 2 GB - SDRAM
Flash Memory: 128 MB
Expansion / Connectivity
Interfaces: 24 x 10Gb Ethernet - SFP+ 1 x console - RJ-45 - management 1 x RJ-45 - management
Power
Power Device: Internal power supply - hot-plug
Installed Qty: 0 (installed) / 2 (max)
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Voltage Required: AC 120/230 V ( 50/60 Hz )
Miscellaneous
Compliant Standards: GOST, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, NOM, VCCI Class A ITE, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, FDA, CSA C22.2 No. 60950-1, EN 60825-1
Dimensions & Weight
Width: 17.30 inch
Depth: 26.00 inch
Height: 1.07 inch
Weight: 28.70 lbs
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 10 - 90% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 5 - 95% (non-condensing)
Not sure this fits your network? Send us your switch or enclosure model and the DatorPro team will confirm compatibility before you order.
