Product Information

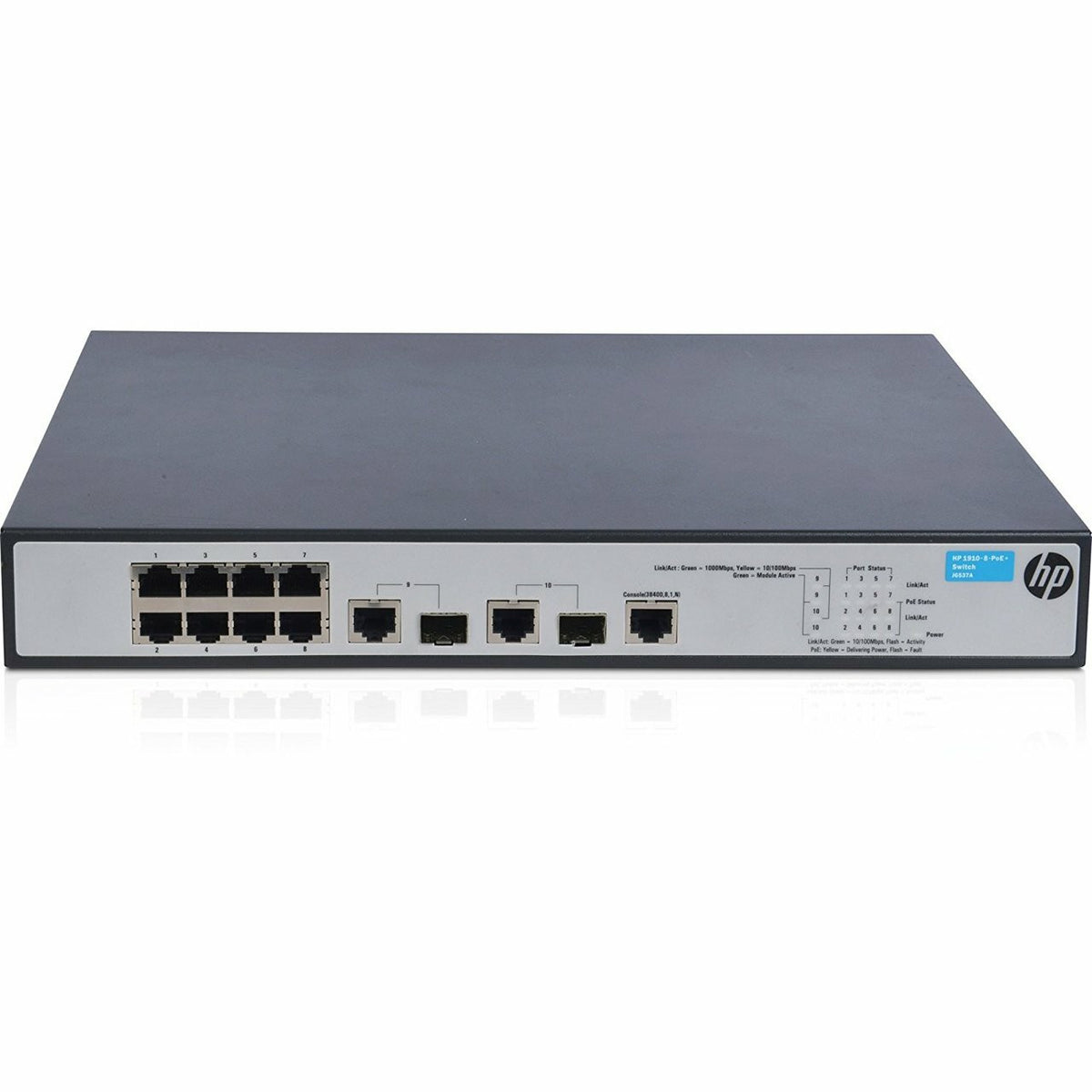

The HPE JG537-61101 is the HPE 1910-8-PoE+ managed switch, with 8 auto-sensing 10/100 RJ-45 PoE+ ports and 2 dual-personality Gigabit ports (RJ-45 or 1000BASE-X SFP), in a rack mountable unit.
Key Features
- 8 x 10/100 PoE+ ports plus 2 Gigabit combo ports
- 8192 entry MAC address table
- Layer 2 and Layer 3 support, including static IPv4 and IPv6 routing
- LLDP-MED auto configuration and several PoE allocation methods
- ACLs, automatic DoS protection and IGMP snooping
- QoS and jumbo frames
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: JG537-61101
Option Part Number: JG537A
Spare Part Number: JG537-61001
Spare Part Number: JG537-61101
General
Device Type: Switch - 8 ports - L3 - managed
Enclosure Type: Rack-mountable - 1U
Subtype: Fast Ethernet
Ports: 8 x 10/100 (PoE) + 2 x combo Gigabit SFP
Power Over Ethernet (PoE): PoE
Capacity:
Routing table entries: 32
Routing Protocol: Static IPv4 routing, static IPv6 routing
Remote Management Protocol: SNMP 1, RMON 2, SNMP, SNMP 3, SNMP 2c, HTTP, HTTPS
Encryption Algorithm: SSL
Authentication Method: RADIUS
Features: Flow control, layer 3 switching, layer 2 switching, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Cable Diagnostics Function, STP Root Guard, IPv4 support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), dual firmware images, NTP time synchronization, link aggregation trucking, packet storm protection
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Expansion & Connectivity
Interfaces: 8 x 100Base-TX - RJ-45 - PoE 2 x 1000Base-X - SFP 2 x 1000Base-T - RJ-45
Power
Voltage Required: AC 120/230 V ( 50/60 Hz )
Miscellaneous
Compliant Standards: FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, FCC Part 15, ICES-003 Class A, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03
Not sure this fits your network? Send us your switch or enclosure model and the DatorPro team will confirm compatibility before you order.
