Product Information

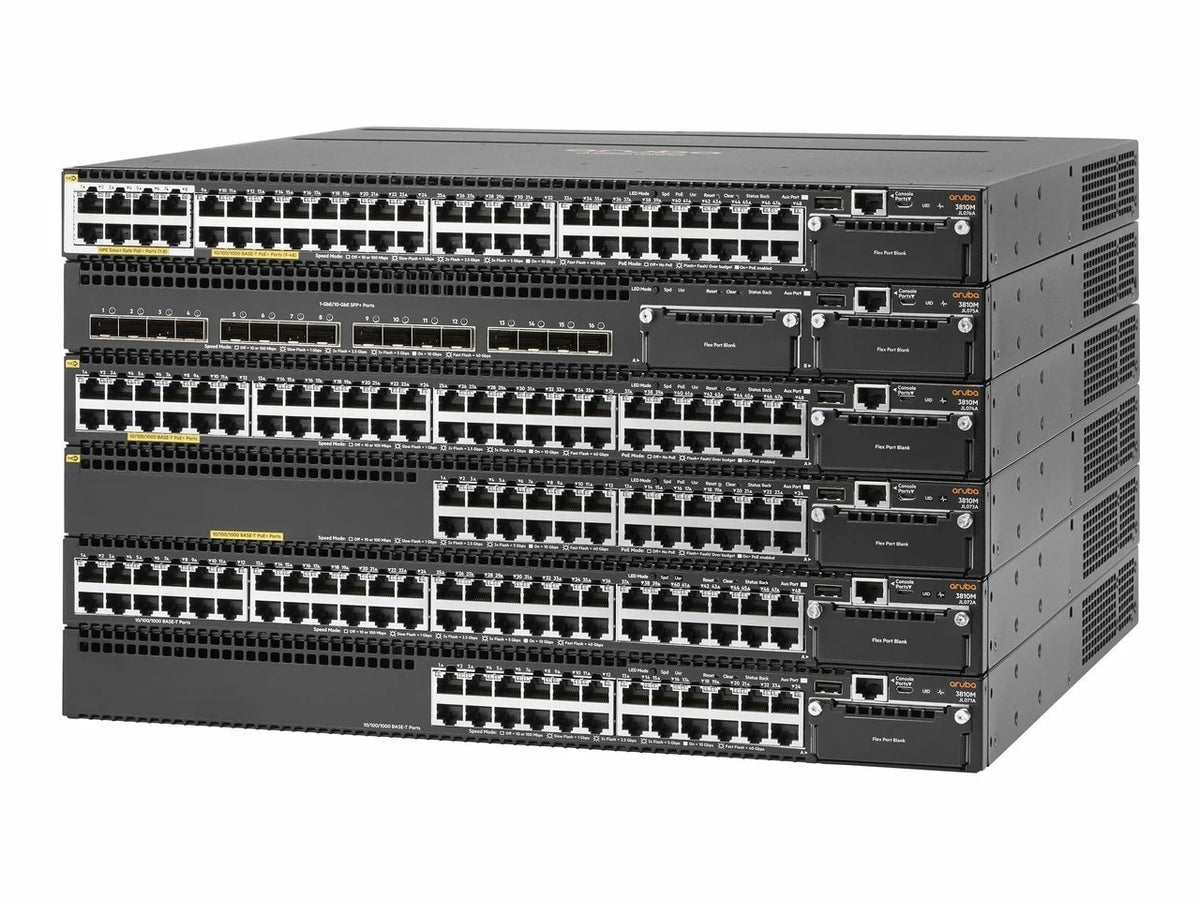

The HPE JL075-61001 is the Aruba 3810M 16SFP+ 2-slot switch, a 1U stackable Layer 3 switch with 16 x 10GbE SFP+ ports and two module slots for more 10GbE or 40GbE ports.
Key Features
- 16 x 1/10GbE SFP+ ports plus 2 expansion slots and a stacking slot
- Backplane stacking, dual hot swap power supplies and low latency
- OSPF, BGP, IPv6, QoS and policy based routing with no extra software licenses
- REST API and OpenFlow support for automation
- Security and management through Aruba ClearPass Policy Manager, AirWave, and Aruba Central in the cloud
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: JL075-61001
Option Part Number: JL075A
Spare Part Number: JL075-61001
General
Device Type: Switch - 16 Ports - L3 - Managed - Stackable
Enclosure Type: Rack-Mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 16 x 10 Gigabit SFP+
Performance
Latency (1 Gbps): 2.8 µs
Latency (10 Gbps): 1.8 µs
Latency (40 Gbps): 1.5 µs
Throughput (64-byte packet size): up to 285.7 Mpps
Routing/switching capacity: 480 Gbps
Switching fabric speed: 508 Gbps
Capacity:
IPv4 routing table entries: 10000,
IPv6 forwarding table entries: 5000
MAC Address Table Size: 64K entries
Jumbo Frame Support: Yes
Routing Protocol: OSPF, BGP-4, RIP-1, RIP-2, BGP, VRRP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, Bidirectional Forwarding Detection (BFD), CIDR
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, CLI, XRMON, SSH 6
Encryption Algorithm: MD5, SSL, TLS
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features: Flow control, DHCP support, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, IPv6 support, half duplex mode, full duplex mode, sFlow, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Link Aggregation Control Protocol (LACP), dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Zero Touch Auto Provisioning, Multiple VLAN Registration Protocol (MVRP), Ingress Layer 2 MAC Access Control Lists (ACLs), Class of Service (CoS), MACsec support, DNS client, layer 4 prioritization, 13.5MB packet buffer
Compliant Standards: IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1AX
Processor: 2
RAM: 6 GB DDR3 SDRAM
Flash Memory: 1 GB
Expansion & Connectivity
Interfaces: 16 x 10Gbit LAN SFP+, 1 x serial (console) RJ-45, 1 x management RJ-45, 1 x RJ-45, 1 x micro-USB Type B
Expansion Slots: 1 (total) / 1 (free) x Stacking Module slot, 2 (total) / 2 (free) x expansion slot
Power
Power Device: Internal power supply - hot-plug
Installed Qty: 0 (installed) / 2 (max)
Power Redundancy: Yes
Miscellaneous
Included Accessories: Fan tray
Rack Mounting Kit: Included
Compliant Standards: FCC Class A certified, CISPR 22 Class A, EN 60950, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 60950, UL 60950, Laser Class 1, UL 60950-1, EN 60825, CAN/CSA C22.2 No. 60950-1, EN 61000-3-3:2008, CAN/CSA C22.2 No. 60950, VCCI Class A, EN55022:2010, EN55024:2010, IEC 60950-1:2005 Second Edition, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 62368-1 Second Edition, IEC 60825:2007, EN 60850-1:2007, IEC 60825-1:2007 Class 1, UL 62368-1 Second Edition, EN 61000-3-2:2006+A1:2009+A2:2009 Class A
Dimensions & Weight
Width: 17.40 inch
Depth: 17.00 inch
Height: 1.70 inch
Weight: 13.27 lbs
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 - 90% (non-condensing)
