Product Information

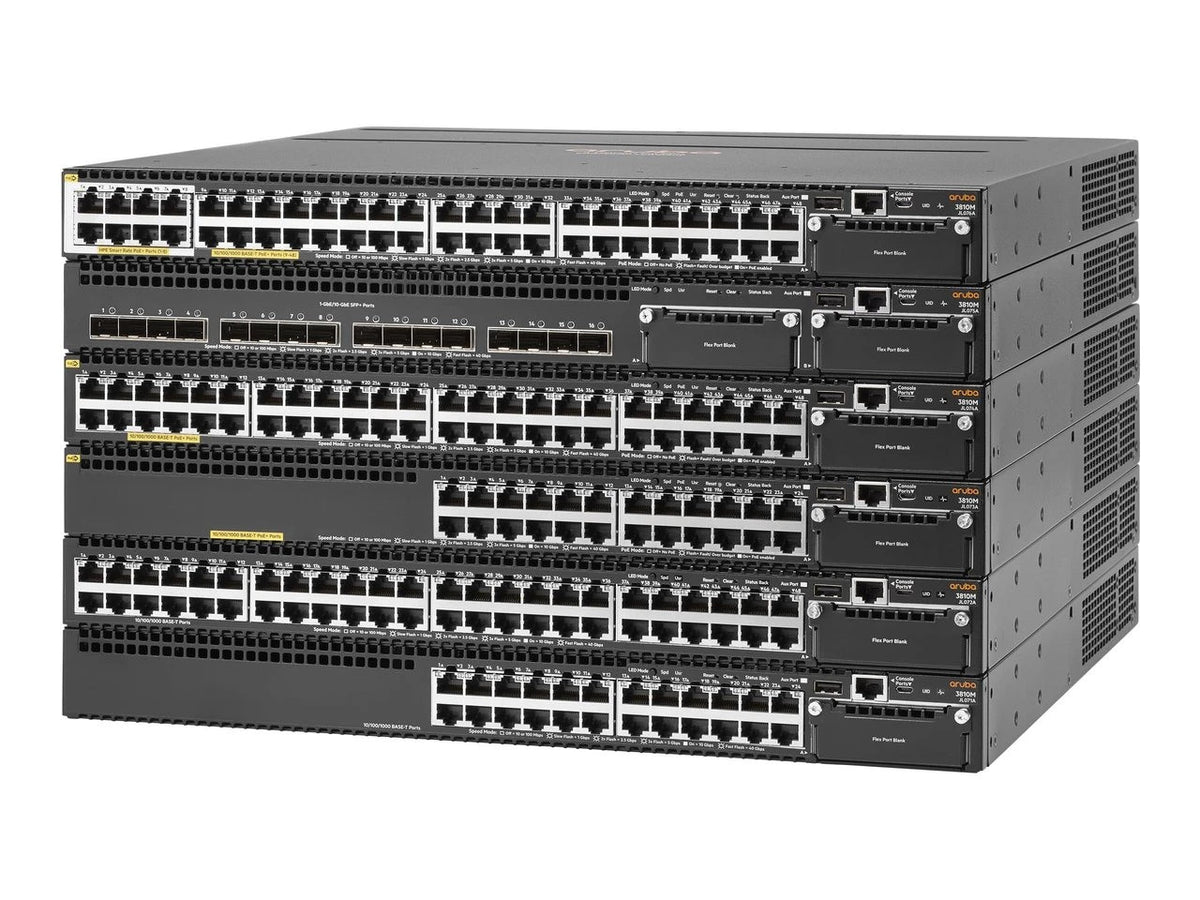

The HPE JL076A is the Aruba 3810M 40G 8SR PoE+ 1-slot switch, a 1U stackable Layer 3 switch for enterprise, SMB and branch networks. It includes HPE Smart Rate multi-gigabit ports for fast 802.11ac access points and one module slot for 10GbE or 40GbE uplinks.
Key Features
- HPE Smart Rate ports run 1, 2.5, 5 or 10GbE over existing cabling
- PoE+ for wireless APs and other powered devices
- Backplane stacking, dual hot swap power supplies and low latency
- OSPF, BGP, IPv6, QoS and policy based routing with no extra software licenses
- REST API and OpenFlow support for automation
- Security and management through Aruba ClearPass Policy Manager, AirWave, and Aruba Central in the cloud
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: JL076A
Option Part Number: JL076A
Spare Part Number: JL076-61001
General
Device Type: Switch - 40 Ports - Managed - Stackable
Enclosure Type: Rack-Mountable 1U
Subtype: Gigabit Ethernet
Ports: 40 x 1/2.5/5/10GBase-T (UPOE)
Power Over Ethernet (PoE): PoE+
Performance
Latency (1000Base-T): 2.8 µs
Latency (10 Gbps): 1.8 µs
Latency (40 Gbps): 1.5 µs
Routing/switching capacity: 480 Gbps
MAC Address Table Size: 64K entries
Routing Protocol: OSPF, BGP-4, RIP-1, RIP-2, BGP, OSPFv2, OSPFv3
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, SSH-2, XRMON
Authentication Method: RADIUS, TACACS+
Features: Flow control, BOOTP support, sFlow, Link Aggregation Control Protocol (LACP), MACsec support
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1AX
Processor: 2 x ARM Cortex-A9: 1 GHz
RAM: 2 GB DDR3 SDRAM
Expansion & Connectivity
Interfaces: 40 x 10GBase-T PoE+, 1 x serial (console) RJ-45 management, 1 x management RJ-45, 1 x management (LAN) RJ-45, 1 x micro-USB
Expansion Slots: 1 (total) / 1 (free) x expansion slot, 1 (total) / 1 (free) x Stacking Module slot
Power
Power Device: Internal power supply
Installed Qty: 0 (installed) / 2 (max)
Miscellaneous
Compliant Standards: IEC 61000-4-11, IEC 61000-4-4, UL 60950, EN 60825, EN 61000-3-3:2008, VCCI Class A, EN55022:2010, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2013
Dimensions & Weight
Width: 17.40 inch
Depth: 17.00 inch
Height: 1.70 inch
Weight: 13.60 lbs
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 - 90% (non-condensing)
Not sure this fits your network? Send us your switch or enclosure model and the DatorPro team will confirm compatibility before you order.
