Product Information

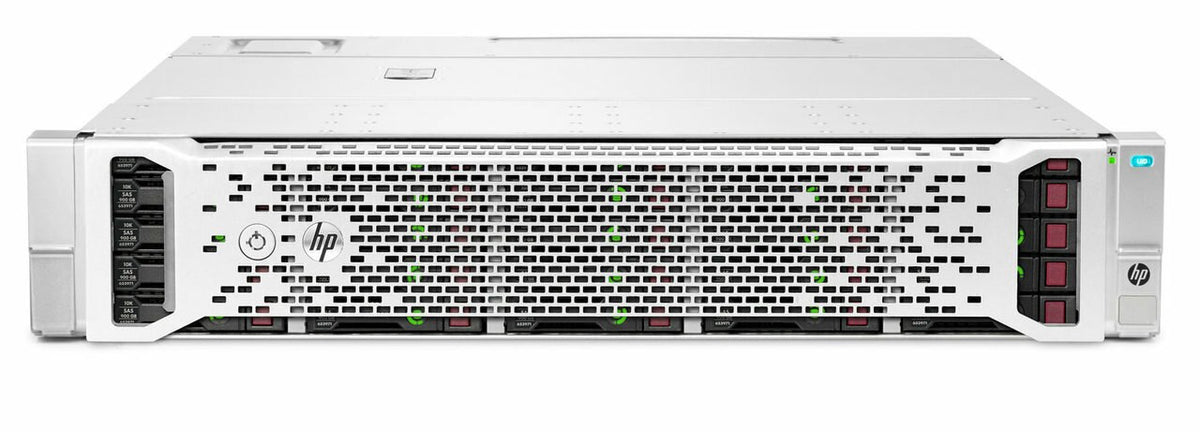

The HPE M0S86A is a storage bundle made up of an HPE D3700 2.5 inch small form factor (SFF) disk enclosure and 25 HPE 1.2TB enterprise hard drives, for a total of 30TB. The drives spin at 10,000 RPM, use a 12Gb SAS interface and sit in HPE Smart Carriers. The enclosure is a 2U rack mount unit with 25 hot swap bays, dual hot plug power supplies and redundant fans. It is listed for HPE ProLiant Gen8 and Gen9 servers.
Key Features
- 25 x 1.2TB Enterprise drives, 30TB total
- 10K RPM, SAS 12Gb/s
- HPE D3700 2.5 inch SFF enclosure, 2U rack mount
- 25 hot swap bays, all populated
- 2 x hot plug power supplies (1+1 redundancy)
- Includes 2 x mini SAS HD cables and rack mounting kit
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: M0S86A
Option Part Number: M0S86A
Spare Part Number: 781578-001
General
Device Type: Storage Enclosure
Enclosure Type: Rack-mountable - 2U Chassis Installed Devices / Modules Qty: 25
Supported Devices / Modules Qty: 25
Supported Drives: SATA-600 / SAS-3
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 104 °F Expansion / Connectivity Expansion Bays: 25 (total) / 0 (free) x hot-swap - 2.5" SFF
Interfaces: 1 x SAS 12 Gb/s Hard Drive
Device Type: Hard Drive - Bundle
Capacity: 25 x 1.2 TB
Form Factor: 2.5inch SFF
Interface: SAS 12Gbps
Spindle Speed: 10000 RPM
Plug Type: Hot Pluggable
Features: Enterprise
Miscellaneous
Features: Redundant fans, firmware upgradable, 92% efficiency power supply
Cables Included: 2 x mini SAS HD cable - 1.6 ft
Included Accessories: Rack mounting kit, 2 x PDU interconnect cords Power Consumption
Power Device: 2 x internal power supply - hot-plug
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: AC 120/230 V - 50/60 Hz
Power Consumption Operational: 403 Watt
Power Provided: 460 Watt
80 PLUS
Certification: 80 PLUS Gold
Product Dimensions & Weight
Height: 3.40 inch
Width: 17.60 inch
Depth: 21.50 inch
Weight: 54.89 lbs
Compatible Systems
- HPE ProLiant Series: Generation8 Generation9
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
