Product Information

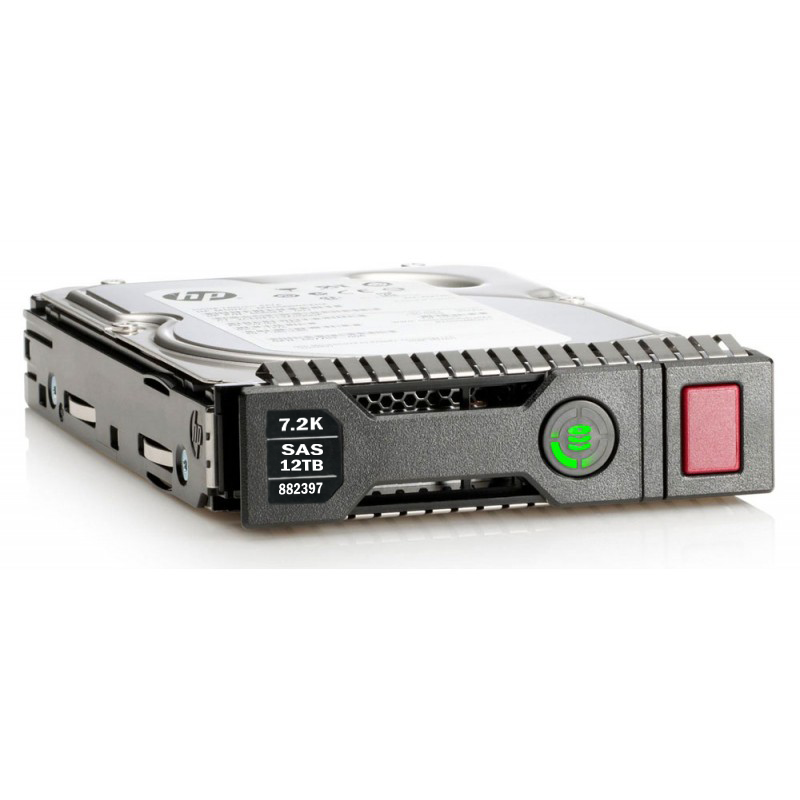

The HPE MB012000JWDFD-SC is a 12TB helium filled midline hard drive that spins at 7,200 RPM. It uses the 3.5 inch large form factor (LFF) with a 12Gb SAS interface and 512e sector format. The drive comes with HPE digitally signed firmware and an HPE Smart Carrier. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 12TB capacity at 7.2K RPM
- SAS 12Gb/s interface
- 3.5 inch LFF
- 512e sector format
- Helium filled
- Digitally signed firmware
- Smart Carrier
- Midline class
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: MB012000JWDFD-SC
Option Part Number: 881779-B21
Spare Part Number: 882397-001
Model Number: MB012000JWDFD
Assembly Number: 868210-001
HPE GPN: 877029-002
General
Device Type: Hard Drive - Hot-Swap
Capacity: 12 TB
Form Factor: 3.5 inch LFF
Interface: SAS 12 Gbps
Bytes per Sector: 512
Drive Technology (Fill): Helium
Plug Type: Hot Plug
Format Type: 512e
Carrier Type: Smart Carrier (SC)
Workload Type: Midline
Features: Dual Port, Advanced Format 512e, Digitally Signed Firmware
Bundled with: HPE SmartDrive Carrier
Performance
Rotational Speed: 7200 RPM
Transfer Rate Synchronous (Max): 12Gb/sec
OD Media Rate, Max Sequential Throughput (MiB/s): 235
128Kib Random Rd (IOPs): 105
128Kib Random 70% RD/ 30% WT (IOPs): 115
128Kib Random 50% RD/ 50% WT (IOPs): 125
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5" LFF Power Consumption Idle Time: 5.50 Watt
Random R/W: 6.10 Watt
Sequential Read: 7.00 Watt
Sequential Write: 6.80 Watt
Environmental Parameters
Minimum Operating Temperature: 50° F (10°C)
Maximum Operating Temperature: 95° F (35°C)
Product Dimensions
Height: 1.06 inch (26.8 mm)
Width: 4.16 inch (105.8 mm)
Depth: 6.69 inch (170.0 mm)
Compatible Systems
- HPE ProLiant DL Series: DL20 Gen9 Solution (3.5 inch), DL385 Gen10 (3.5 inch), DL385 Gen10 Base (3.5 inch), DL385 Gen10 Entry (3.5 inch), DL385 Gen10 High-Performance (3.5 inch), DL385 Gen10 High-Performance (3.5 inch), DL385 Gen10 Performance (3.5 inch), DL385 Gen10 Solution (3.5 inch) Servers
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
