Product Information

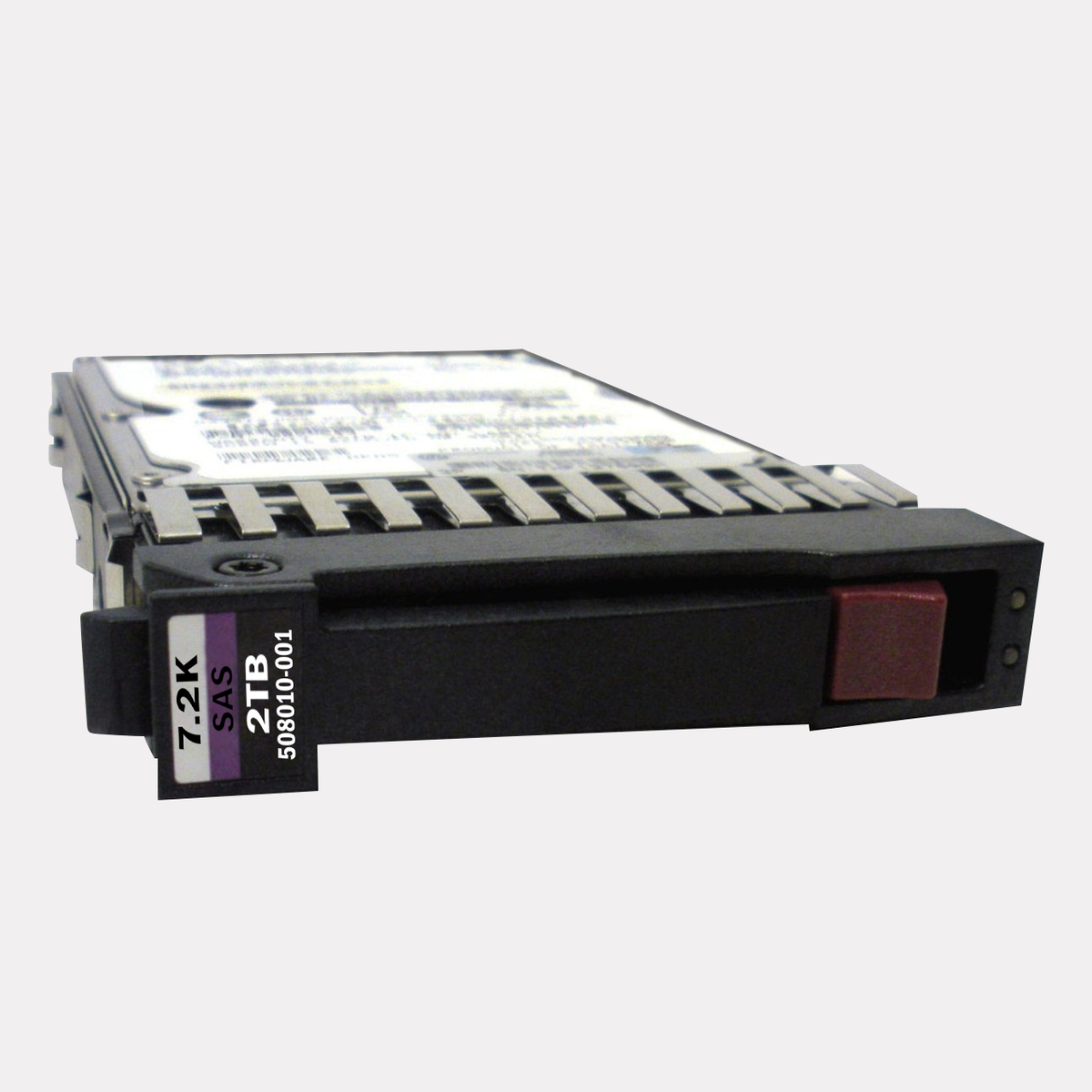

Made for Gen1 through Gen7 HPE servers, the HPE MB2000FAMYV gives you 2 TB of midline capacity in a 3.5 inch LFF (large form factor) package. It runs at 7,200 RPM and links to the controller over a dual port SAS 6Gb/s interface. The drive is hot swappable, so it can be installed or replaced while the system keeps running.
It suits capacity driven jobs such as bulk storage, expanding digital content libraries, and cloud or web infrastructure.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: MB2000FAMYV
Option Part Number: 507616-B21
Spare Part Number: 508010-001
Model Number: MB2000FAMYV
Assembly Number: 507613-002
Drive Details
Drive Type: Hard Drive - Hot-Swap
Storage Capacity: 2 TB
Form Factor: 3.5 inch LFF
Host Interface: SAS-6Gbps
Sector Size (Bytes): 512
Cache Buffer: 16 MB
Internal Fill: Air
Carrier: Standard Carrier
Workload Class: Midline
Features: Dual Port
Ships With: HPE Standard Carrier
Performance
Seek Time: 8.5 ms (average) / 16.2 ms (max)
Rotational Speed: 7200 RPM
External Transfer Rate: 600 MBps
Track-to-Track Seek: 0.5 ms
Connections
Ports: 1 x SAS 6 Gb/s
Fits Bay: 3.5" LFF
Size and Weight
Width: 4.30 inch
Depth: 7.40 inch
Height: 1.00 inch
Operating Environment
Operating Temp (Min): 50 °F
Operating Temp (Max): 95 °F
Compatible Systems
- HPE ProLiant DL Series: DL1000 DL120 (Gen6 Gen7) DL160 (Gen6 Gen7) DL160se (Gen6 Gen7) DL165 (Gen6 Gen7) DL170e (Gen6 Gen7)DL170h (Gen6 Gen7) DL180 (Gen6 Gen7) DL320 (Gen6 Gen7) DL360 (Gen4p Gen5 Gen6 Gen7) DL365 (Gen1 Gen5 Gen6 Gen7)DL370 (Gen6 Gen7) DL380 (Gen4 Gen5 Gen6 Gen7) DL385 (Gen1 Gen2 Gen3 Gen4 Gen5/Gen5p Gen6 Gen7)DL580 (Gen3 Gen4 Gen5 Gen6 Gen7) DL585 (Gen2 Gen3 Gen4 Gen6 Gen7) DL785 (Gen6)
- HPE ProLiant ML Series: ML 110 (Gen7) ML350 (Gen5 Gen6 Gen7) ML370 (Gen5 Gen6 Gen7) ML570 (Gen3 Gen4 Gen5)
- HPE Storage Systems: D2700 MSA 1040 MSA70 P2000 (Gen3) X1500 (Gen2) X16000 (Gen2) X1800 (Gen2) X3400 (Gen2)
- HPE StoragEeasy: X3800 (Gen2) 2000i (Gen2) 2000sa (Gen2)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
