Product Information

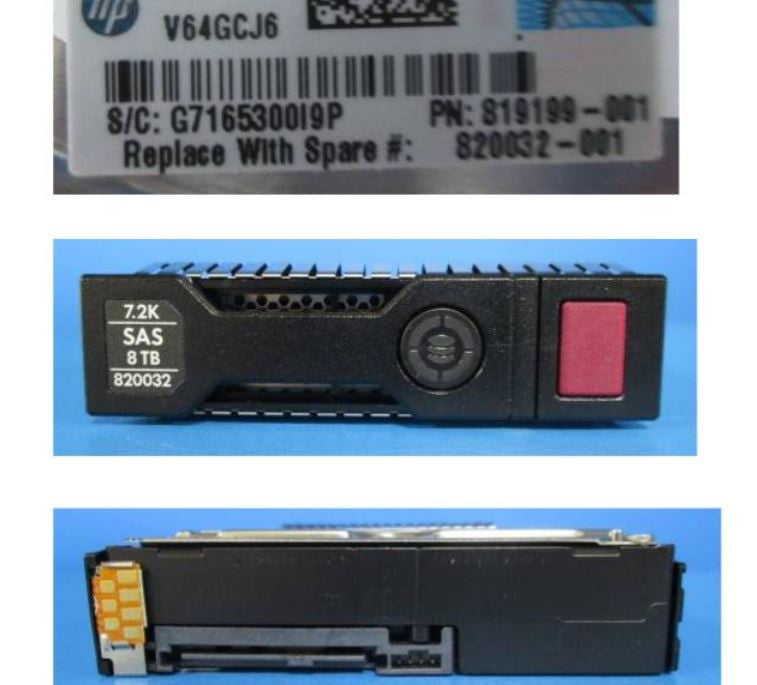

The HPE MB8000JFECQ-SC is an 8TB midline hard drive that spins at 7,200 RPM. It uses the 3.5 inch large form factor (LFF) with a 12Gb SAS interface and 512e sector format. The drive comes with HPE digitally signed firmware and an HPE Smart Carrier. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 8TB capacity at 7.2K RPM
- SAS 12Gb/s interface
- 3.5 inch LFF
- 512e sector format
- Digitally signed firmware
- Smart Carrier
- Midline class
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: MB8000JFECQ-SC
Option Part Number: 819201-B21
Spare Part Number: 820032-001
Model Number: MB8000JFECQ
Assembly Number: 819199-001
General
Device Type: Hard Drive - Hot-Swap
Capacity: 8 TB
Form Factor: 3.5 inch LFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Format Type: 512e
Carrier Type: Smart Carrier (SC)
Plug Type: Hot Plug
Workload: Midline
Features: Advanced format 512e, Digitally Signed Firmware
Bundled with: HPE SmartDrive Carrier
Performance
Drive Transfer Rate: 1.2 GBps (external)
Spindle Speed: 7200 RPM
OD Media Rate, Max Sequential Throughput (MiB/s): 230 MiB/s
128Kib Random Rd (IOPs): 105 IOPs
128Kib Random 70% RD / 30% WT (IOPs): 115 IOPs
128Kib Random 50% RD / 50% WT (IOPs): 115 IOPs
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5" LFF Power Power Idle Time (Watts): 4.70 Watt
Power Random R/W (Watts): 6.10 Watt
Power Sequential Read (Watts): 6.30 Watt
Power Sequential Write (Watts): 6.30 Watt Dimensions
Width: 4.20 inch
Depth: 6.70 inch
Height: 1.10 inch
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
- HPE ProLiant DL Series: DL180 Gen9 (3.5 inch), DL180 Gen9 Base (3.5 inch), DL180 Gen9 Entry (3.5 inch), DL180 Gen9 Storage (3.5 inch), DL20 Gen9 Solution (3.5 inch), DL360 Gen10 (3.5 inch), DL360 Gen10 Base (3.5 inch), DL360 Gen10 Entry (3.5 inch), DL360 Gen10 High Performance (3.5 inch), DL360 Gen10 Low (3.5 inch), DL360 Gen10 Performance (3.5 inch), DL360 Gen10 Solution (3.5 inch), DL380 Gen10 (3.5 inch), DL380 Gen10 Base (3.5 inch), DL380 Gen10 Entry (3.5 inch), DL380 Gen10 High Performance (3.5 inch), DL380 Gen10 Performance (3.5 inch), DL380 Gen10 Solution (3.5 inch), DL385 Gen10 (3.5 inch), DL385 Gen10 Base (3.5 inch), DL385 Gen10 Entry (3.5 inch), DL385 Gen10 High-Performance (3.5 inch), DL385 Gen10 Performance (3.5 inch), DL385 Gen10 Solution (3.5 inch), DL388 Gen9 (3.5 inch), DL388 Gen9 Base (3.5 inch), DL80 Gen9 Entry (3.5 inch)
- HPE ProLiant ML Series: ML110 Gen9 (3.5 inch), ML110 Gen9 Base (3.5 inch), ML110 Gen9 Entry (3.5 inch), ML30 Gen9 Entry (3.5 inch), ML30 Gen9 Solution (3.5 inch)
- HPE StoreEasy 1450
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
