Product Information

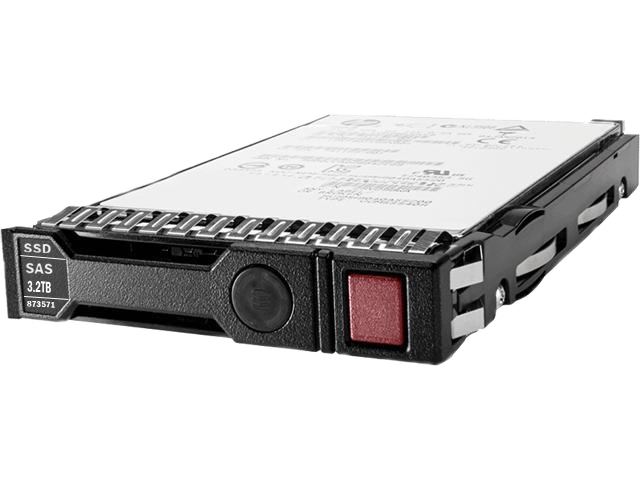

The HPE MO003200JWDLB-SC is a 3.2 TB mixed use solid state drive built for HPE ProLiant Gen9 and Gen10 servers. It uses the 2.5 inch SFF (small form factor) format and connects through a SAS 12Gb/s interface, with digitally signed firmware. It comes mounted in an HPE Smart Carrier.
Mixed use SSDs balance random read and write performance, so this drive is well suited to analytics on large data sets, cloud workloads, active archives, databases and data warehouses.
About the Smart Carrier: status icons and an animated ring on the tray show what the drive is doing, a blue locator light can be turned on remotely so you pull the right tray, and a warning icon on the release button lights up if removing the drive would lose data.
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: MO003200JWDLB-SC
Option Part Number: 873367-B21
Spare Part Number: 873571-001
Model Number: MO003200JWDLB
Assembly Number: 868650-004
HPE GPN: 873370-010
Drive Details
Drive Type: Solid State Drive - Hot-Swap
Storage Capacity: 3.2 TB
Workload Class: Mixed Use
Host Interface: SAS 12Gbps
Form Factor: 2.5 inch SFF
Installation Type: Hot Plug
Carrier: Smart Carrier
NAND Type: Multi-Level Cell (MLC)
Sector Size (Bytes): 512
Features: Digitally Signed Firmware (DS)
Ships With: HPE SmartDrive Carrier
Performance
Lifetime Writes: 17500
Endurance DWPD (Drive Writes Per Day): 3
Drive Transfer Rate: 12 Gb/sec (external)
Max Sequential Read Throughput (MiB/s): 1050
Max Sequential Write Throughput (MiB/s): 1010
Random Read Avg. Latency (µs) (4KiB,Q1): 105
Random Write Avg. Latency (µs) (4KiB,Q1): 35
Random Read IOPS (4KiB, Q=16): 130000
Random Write IOPS (4KiB, Q=16): 100000
Max Random Read IOPS (4KiB): 170000@Q64
Max Random Write IOPS (4KiB): 100000@Q16
Power Draw (idle): 4.24 Watt
Power Draw (random read): 8.74 Watt
Power Draw (random write): 8.74 Watt
Power Draw (sequential read): 6.51 Watt
Power Draw (sequential write): 9.93 Watt
Power Draw (random read/write): 8.74 Watt
Connections
Ports: 1 x SAS 12 Gb/s
Fits Bay: 2.5" SFF
Size and Weight
Height: 15 mm
Operating Environment
Operating Temp (Min): 32 °F
Operating Temp (Max): 140 °F
Compatible Systems
- HPE ProLiant DL Series: DL120 Gen9 (2.5 inch), DL120 Gen9 Entry (2.5 inch), DL160 Gen9 (2.5 inch), DL160 Gen9 Base (2.5 inch), DL160 Gen9 Entry (2.5 inch), DL160 Gen9 Performance (2.5 inch), DL160 Gen9 Thoughtspot Server (2.5 inch), DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Base (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL20 Gen9 Solution (2.5 inch), DL20 Gen9 Special Server (2.5 inch), DL360 Gen9 (2.5 inch), DL360 Gen9 Base (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Entry (2.5 inch), DL360 Gen9 Performance (2.5 inch), DL360 Gen9 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (2.5 inch), DL380 Gen9 Special (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch) Servers
- HPE ProLiant ML Series: ML110 Gen10 (2.5 inch), ML110 Gen10 Entry (2.5 inch), ML110 Gen10 Performance (2.5 inch), ML110 Gen10 Solution (2.5 inch), ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML150 Gen9 (2.5 inch), ML150 Gen9 Base (2.5 inch), ML150 Gen9 Entry (2.5 inch), ML150 Gen9 Performance (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch), ML350 Gen9 (2.5 inch), ML350 Gen9 Base (2.5 inch), ML350 Gen9 Entry (2.5 inch), ML350 Gen9 Performance (2.5 inch) Servers
- HPE ProLiant XL Series: XL170r Gen10 (2.5 inch) and XL450 Gen10 (2.5 inch) Servers
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
