Product Information

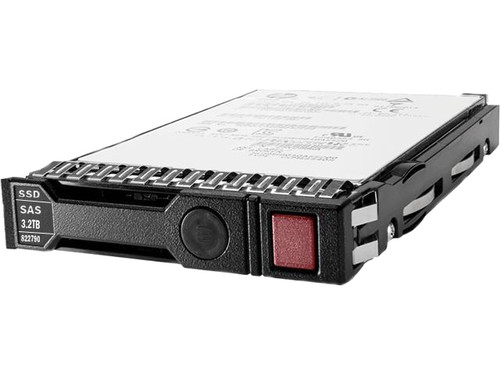

The HPE MO3200JFFCL is a 3.2TB mixed use solid state drive in the 2.5 inch small form factor (SFF) with a 12Gb SAS interface. The drive uses TLC NAND and includes power loss protection (PLP). It comes in an HPE Smart Carrier (SC). It is intended for HPE ProLiant Gen8, Gen9 and Gen10 servers.
Key Features
- 3.2TB capacity
- SAS 12Gb/s interface
- 2.5 inch SFF
- Mixed Use workload
- TLC NAND
- Power loss protection (PLP)
- HPE Smart Carrier (SC)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: MO3200JFFCL-SC
Option Part Number: 822567-B21
Spare Part Number: 822790-001
Model Number: MO3200JFFCL
Assembly Number: 822552-004
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 3.2 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Flash
Type: TLC (Triple-Level Cell)
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Mixed Use
Features: Supports Power Loss Protection (PLP)
Bundled with: HPE Smart Carrier (SC)
Server Gen Supported: ProLiant Gen8/Gen9/Gen10 Servers
Height: 15 mm (0.60 inch)
Weight: 23.98 oz
Performance
Endurance DWPD: 3
Drive Transfer Rate: 12 Gb/sec (external)
MAX Seq. Reads Throughput (MiB/s): 950
MAX Seq. Writes Throughput (MiB/s): 950
Random Read Average Latency uSec (4KiB,Q1): 125
Random Write Average Latency uSec (4KiB,Q1): 50
Random Read IOPS (4KiB, Q=16): 93000
Random Write IOPS (4KiB, Q=16): 53000
MAX Random Write IOPS (4KiB): 150000Q64
MAX Random Write IOPS (4KiB): 53000Q4
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 70000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 87500
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF Power Consumption Idle Time: 3.48 Watts
Random Read: 3.76 Watts
Random Write: 3.76 Watts
Sequential Read: 4.79 Watts
Sequential Write: 4.56 Watts
Random R/W: 3.76 Watts
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 140 °F
Product Dimensions & Weight
Height: 8.63 inch
Width: 9.00 inch
Depth: 5.75 inch
Weight: 1.508 lbs
Compatible Systems
- HPE ProLiant BL Series: BL420c Gen8 Gen9 (2.5 inch), BL460c Gen8 Gen9 (2.5 inch), BL465c Gen8 Gen9 (2.5 inch), BL660c Gen8 Gen9 (2.5 inch)
- HPE ProLiant DL Series: DL20 Gen9 (2.5 inch), DL120 Gen8 Gen9 (2.5 inch), DL160 Gen8 Gen9 (2.5 inch), DL180 Gen8 Gen9 (2.5 inch), DL320e Gen8 Gen9 (2.5 inch), DL360 Gen8 Gen9 Gen10 (2.5 inch), DL360e Gen8 Gen9 (2.5 inch), DL360p Gen8 Gen9 (2.5 inch), DL388 Gen9 (2.5 inch), DL380 Gen8 Gen9 Gen10 (2.5 inch), DL380e Gen8 Gen9 (2.5 inch), DL380p Gen8 Gen9 (2.5 inch), DL385 Gen10 (2.5 inch), DL560 Gen10 (2.5 inch), DL580 Gen10 (2.5 inch), DL385p Gen8 Gen9 (2.5 inch), DL560 Gen8 Gen9 (2.5 inch), DL580 Gen8 Gen9 (2.5 inch)
- HPE ProLiant ML Series: ML110 Gen8 Gen9 Gen10 (2.5 inch), ML150 Gen8 Gen9 (2.5 inch), ML310e Gen8 Gen9 (2.5 inch), ML350 Gen8 Gen9 Gen10 (2.5 inch), ML350e Gen8 Gen9 (2.5 inch), ML350p Gen8 Gen9 (2.5 inch)
- HPE ProLiant SL Series: SL230s Gen8 Gen9 (2.5 inch), SL250s Gen8 Gen9 (2.5 inch), SL270s Gen8 Gen9 (2.5 inch)
- HPE ProLiant XL Series: XL170r Gen9 (2.5 inch), XL190r Gen9 (2.5 inch), XL220a Gen9 (2.5 inch), XL230a Gen9 (2.5 inch), XL250a Gen9 (2.5 inch), XL230k Gen10 (2.5 inch)
- HPE Storage Arrays: D3700 D2220sb
- HPE StoreEasy 1830 1840
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
