Product Information

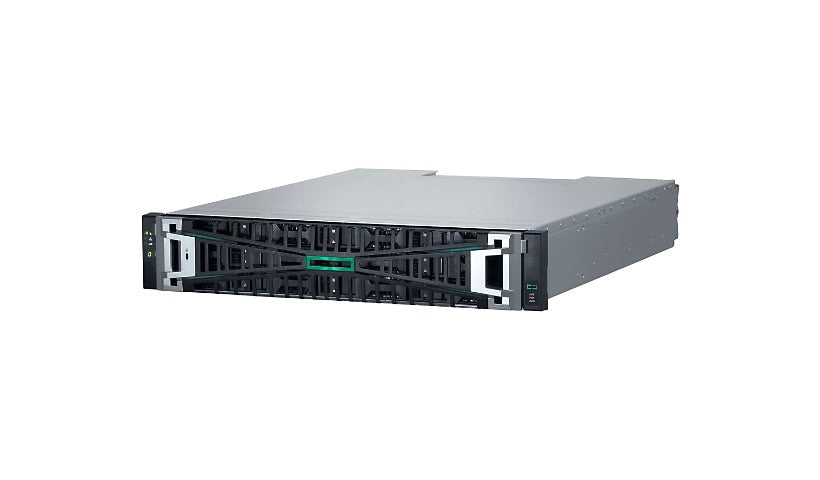

The HPE MSA 2070 10GBASE-T iSCSI LFF array (S1H45A) is a 2U shared storage system for HPE ProLiant servers, not a network adapter. It has twelve 3.5 inch LFF bays (no drives installed), two RAID controllers with RAID 0, 1, 5, 6 and 10, eight 10GBase-T iSCSI host ports, two 12Gb SAS expansion ports and two Gigabit management ports, and supports up to 288 TB. It has two hot plug 580 W 80 PLUS Platinum power supplies and includes a rack kit and two C14 power cords.
Key Features
- Storage array, not a NIC
- 12 x 3.5 in LFF bays, no drives
- 8 x 10GBase-T iSCSI ports
- Dual RAID controllers
- Up to 288 TB supported
- 2U, dual 580 W PSU
Product Information
Brand: HPE
Manufacturer: Hewlett-Packard
Product Line: HPE Modular Smart Array
Model: 2070 10GBASE-T iSCSI LFF Storage
Product Type: Hard drive array
Packaged Quantity: 1
Color Category: Black, Green, Silver
Network and Communication
Data Transfer Rate: 1.2 GBps
Features: SMTP support, SNMP support
Edition: 7th Generation
Connectivity
Bus Type: iSCSI
HDD Array External Interface: iSCSI (10 GbE)
HDD Array External Interface Class: iSCSI
Expansion Bays: 12 (total) / 12 (free) - 3.5" LFF
Interface Provided: 2 x Ethernet 1000Base-T (management) - RJ-45, 2 x SAS 12Gb/s (expansion port), 4 x mini-USB 2.0 (management), 8 x iSCSI 10GBase-T
Power
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Provided: 580 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
80 PLUS Certification: 80 PLUS Platinum
Memory and Processor
Hard Drive Type: No HDD
Max Drive Capacity: 0 TB
Max Supported Capacity: 288 TB
Storage Controller (2nd): None
Storage Controller Type: RAID
Controllers Included: 2
RAID Levels: RAID 0, RAID 1, RAID 10, RAID 5, RAID 6
Processor Type: No CPU
Optical Drive Type: None
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 2
Installed Devices/Modules: 0
Dimensions and Weight
Height: 3.5 inch
Width: 19 inch
Depth: 20 inch
Weight: 11.02 lbs
Included Items
Included Accessories: 2 x PDU cords (IEC C14), Rack mounting kit
Certifications and Listing
Compliant Standards: ASHRAE Class A3, China RoHS, CISPR 32 Class A, CSA 62368-1, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 62368-1, EU Lot 9, FCC Class A certified, ICES-003 Class A, RoHS 6/6, UL, VCCI Class A, WEEE
ENERGY STAR Certified: Yes
EPEAT Compliant: No
TCO Certified: No
