Product Information

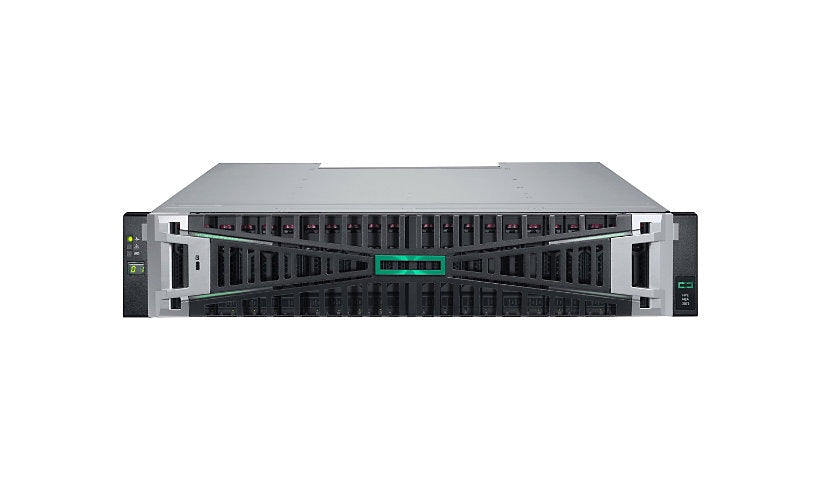

The HPE MSA 2072 10GBASE-T iSCSI SFF array (S2C85A) is a 2U Gen7 hybrid shared storage system for HPE ProLiant servers, not a network adapter. It has twenty four 2.5 inch SFF bays with two 1.92 TB read intensive SAS SSDs installed (3.84 TB), two RAID controllers with MSA-DP+ and RAID 0, 1, 5, 6 and 10, eight 10GBase-T iSCSI host ports, two 12Gb SAS expansion ports and two Gigabit management ports, and supports up to 737.28 TB. It has two hot plug 580 W 80 PLUS Platinum power supplies and includes a rack kit and two C14 power cords.
Key Features
- Storage array, not a NIC
- 24 x 2.5 in SFF bays
- 2 x 1.92 TB SSD installed
- 8 x 10GBase-T iSCSI ports
- Dual RAID controllers
- 2U, dual 580 W PSU
Product Information
Operation Type: Internal power supply
Brand: HPE
Manufacturer: Hewlett-Packard
Product Line: HPE Modular Smart Array
Model: 2072 10GBASE-T iSCSI SFF Storage
Product Type: Hybrid storage array
Packaged Quantity: 1
Color Category: Black, Green, Silver
Network and Communication
Data Transfer Rate: 1.2 GBps
Operating System Required: Citrix XenServer, Microsoft Windows Server, Oracle Linux, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Features: SMTP support, SNMP support
Edition: 7th Generation
Connectivity
Supported Interface: Serial Attached SCSI 3
Bus Type: iSCSI
HDD Array External Interface: iSCSI (10 GbE)
HDD Array External Interface Class: iSCSI
Expansion Bays: 24 (total) / 22 (free) - 2.5" SFF
Interface Provided: 2 x Ethernet 1000Base-T (management) - RJ-45, 2 x SAS 12Gb/s (expansion port), 4 x mini-USB 2.0 (management), 8 x iSCSI 10GBase-T
Power
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Provided: 580 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
80 PLUS Certification: 80 PLUS Platinum
Memory and Processor
Hard Drive Features: Read Intensive
Storage Controller Interface: Serial Attached SCSI 3
Hard Drive Type: SSD
Max Drive Capacity: 3.84 TB
Max Supported Capacity: 737.28 TB
Storage Controller (2nd): None
Storage Controller Type: RAID
Controllers Included: 2
RAID Levels: MSA-DP+, RAID 0, RAID 1, RAID 10, RAID 5, RAID 6
Processor Type: No CPU
Hard Drive Capacity: 1.92 TB
Drive Interface: Serial Attached SCSI 3
Optical Drive Type: None
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: Up to 85% RH
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 2
Supported Devices: 24
Installed Devices/Modules: 2
Installed Quantity: 2
Dimensions and Weight
Height: 3.5 inch
Width: 19 inch
Depth: 20 inch
Weight: 11.02 lbs
Included Items
Included Accessories: 2 x PDU cords (IEC C14), Rack mounting kit
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
