Product Information

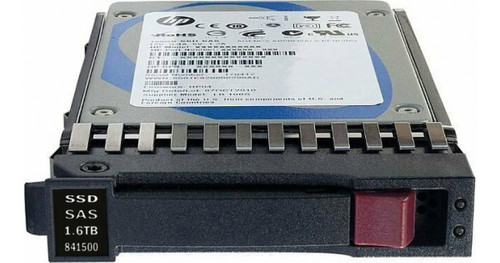

Part number 841500-001 is an HPE 1.6TB Mixed Use SSD with a 12Gbps SAS interface in a 2.5 inch small form factor (SFF) design. It is intended for HPE MSA (Modular Smart Array) 1040/2040 SAN storage systems. Item condition: New Sealed Spare. Warranty: 1 Year.
HPE Mixed Use (MU) server SSDs provide strong performance and endurance for applications that need a balance of high random read and write IOPS. HPE Mixed Use (MU) SSDs are usually rated from above 1 up to under 10 drive writes per day (DWPD). Every HPE SSD goes through more than 3.35 million hours of testing and qualification, so you get dependable, high performing drives.
Speed up your workloads with high performance HPE SSDs
HPE SSDs reach higher input/output operations per second (IOPS), lifting the performance of your data center. Get the newest technology and industry leading performance from 12 Gb SAS SSDs and NVMe PCIe SSDs. Get to your data faster with very low latency. One of the broadest selections across SAS and SATA, with early access to the newest technologies. Dependable operation you can trust in your data center
HPE SSDs go through 3.35 million hours of rigorous testing to meet the quality standards you expect. These SSDs handle very high operating shock and vibration levels, so they stay reliable across many environments. HPE firmware keeps the drive compatible with ProLiant servers and HPE controllers for consistent performance. Full data path error detection helps keep your data accurate. Power loss protection keeps your data safe even if the data center loses power, supporting high availability. SAS (Serial Attached SCSI) builds on the proven SCSI software foundation and pairs it with a serial physical connection. As enterprise storage grows more demanding, needs such as higher capacity, denser storage, stronger security, easy scaling and reliable access matter more than ever. A modern data center has to stay online around the clock, serve many users at once, keep room to grow and allow maintenance without downtime. SAS handles every one of these requirements and delivers top tier performance at the same time. HPE SSDs bring the speed, flexibility and room to expand that growing storage needs call for. Built in a 2.5-inch form factor, this MSA Mixed Use SSD (841500-001) is rated for an external data transfer rate of 12 Gbps. Usable capacity: 1.6 TB. Small form factor (SFF) SSD, connected through a 12Gbps SAS interface. Includes a 1-year warranty.
Technical Details
Brand: HPE
MPN: 841500-001
Option Part Number: N9X91A
Spare Part Number: 841500-001
Model Number: MO001600JWTBT
Model Number: MO1600JFFCK
Assembly Number: P04174-003
Assembly Number: 822552-003
General Specs
Device Type: Solid State Drive - Hot-Swap
Capacity: 1.6 TB
Form Factor: 2.5 inch SFF
Interface Type: SAS 12Gbps
Plug Type: Hot Plug
Workload Type: Mixed Use
Carrier Type: Standard MSA Carrier
Features: Dual Port
Bundled with: HPE Standard MSA Carrier
Performance Ratings
Drive Transfer Rate: 12 Gb/sec (external)
Connectivity Details
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF
Product Size and Weight
Height: 5.00 (12.70 cm)
Width: 7.00 inch (17.78 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
Compatibility
Supported systems
HPE Modular Smart Array 1040 Dual Controller SFF Bundle, 1040 Dual Controller SFF Storage, 2040 10Gb iSCSI Dual Controller SFF Bundle, 2040 Dual Controller SFF Bundle, 2040 FC Dual Controller SFF Bundle, 2040 SAN Dual Controller SFF Bundle, 2040 SAN Dual Controller SFF Bundle Performance Tier, 2040 SAN Dual Controller SFF Storage, 2040 SAN w/o SFP Bundle Performance Tier, 2040 SAN w/o SFP SFF Bundle, 2040 SAS Dual Controller SFF Bundle, 2040 SAS Dual Controller SFF Bundle Performance Tier, 2040 SAS Dual Controller SFF Storage, 2040 SFF Chassis and 2040 SFF DC-power Chassis
Need help confirming that this drive works with your server or storage system? Send us the model details and our team will check compatibility before you buy.
