Product Information

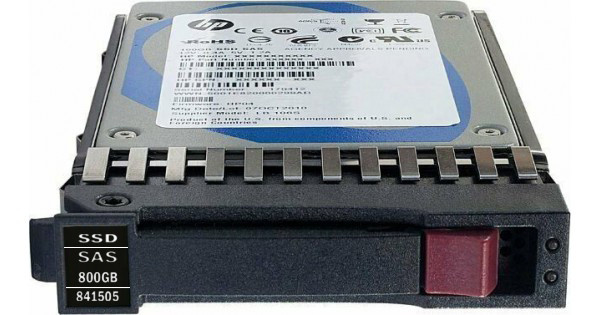

Part number MO0800JFFCH is an HPE 800GB Mixed Use SSD with a 12Gbps SAS interface in a 2.5 inch small form factor (SFF) design. Key features include hot-swap capability. It is intended for HPE MSA (Modular Smart Array) 1040/2040 SAN storage systems. Item condition: New Sealed Spare. Warranty: 1 Year.
HPE Mixed Use (MU) server SSDs provide strong performance and endurance for applications that need a balance of high random read and write IOPS. HPE Mixed Use (MU) SSDs are usually rated from under 1 up to under 10 drive writes per day (DWPD). Every HPE SSD goes through more than 3.35 million hours of testing and qualification, so you get dependable, high performing drives. Dependable operation you can trust in your data center
HPE SSDs go through 3.35 million hours of rigorous testing to meet the quality standards you expect. These SSDs handle very high operating shock and vibration levels, so they stay reliable across many environments. HPE firmware keeps the drive compatible with ProLiant servers and HPE controllers for consistent performance. Full data path error detection helps keep your data accurate. Power loss protection keeps your data safe even if the data center loses power, supporting high availability.
Speed up your workloads with high performance HPE SSDs
HPE SSDs reach higher input/output operations per second (IOPS), lifting the performance of your data center.
Get the newest technology and industry leading performance from 12 Gb SAS SSDs and NVMe PCIe SSDs.
Get to your data faster with very low latency.
One of the broadest selections across SAS and SATA, with early access to the newest technologies. Simple to deploy with a lower total cost of ownership
HPE SSDs draw less power than spinning drives, giving better IOPS per watt and lowering data center cooling costs. Through support in management tools, SmartSSD Wear Gauge tracks SSD life and helps prevent data loss. Helps your server run more efficiently
HPE SSDs help you get more out of your server by delivering more compute per watt. Works with the HPE Power Advisor tool for SSD and system power planning. Self describing LEDs make drive activity easy to read. SAS (Serial Attached SCSI) builds on the proven SCSI software foundation and pairs it with a serial physical connection. As enterprise storage grows more demanding, needs such as higher capacity, denser storage, stronger security, easy scaling and reliable access matter more than ever. A modern data center has to stay online around the clock, serve many users at once, keep room to grow and allow maintenance without downtime. SAS handles every one of these requirements and delivers top tier performance at the same time. Built in a 2.5-inch form factor, this MSA Mixed Use SSD (MO0800JFFCH) is rated for an external data transfer rate of 12 Gbps. Usable capacity: 800 GB. Small form factor (SFF) SSD with hot-swap capability, connected through a 12Gbps SAS interface. Includes a 1-year warranty.
Technical Details
Brand: HPE
MPN: MO0800JFFCH
Option Part Number: N9X96A
Spare Part Number: 841505-001
Model Number: MO0800JFFCH
Assembly Number: 822552-002
General Specs
Device Type: Solid State Drive - Hot-Swap
Capacity: 800 GB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Carrier Type: Standard Carrier
Workload Type: Mixed Use
Plug Type: Hot Plug
Bundled with: HPE Standard Carrier
Performance Ratings
Drive Transfer Rate: 12 Gb/sec (external)
Connectivity Details
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF
Product Size and Weight
Height: 5.00 inch (12.70 cm)
Width: 7.00 inch (17.78 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.016 lbs (0.46 kg)
Compatibility
Supported systems
HPE Modular Smart Array 1040 Dual Controller SFF Bundle, 1040 Dual Controller SFF Storage, 2040 10Gb iSCSI Dual Controller SFF Bundle, 2040 Dual Controller SFF Bundle, 2040 FC Dual Controller SFF Bundle, 2040 SAN Dual Controller SFF Bundle, 2040 SAN Dual Controller SFF Bundle Performance Tier, 2040 SAN Dual Controller SFF Storage, 2040 SAN w/o SFP Bundle Performance Tier, 2040 SAN w/o SFP SFF Bundle, 2040 SAS Dual Controller SFF Bundle, 2040 SAS Dual Controller SFF Bundle Performance Tier, 2040 SAS Dual Controller SFF Storage and 2040 SFF Chassis and 2040 SFF DC-power Chassis
Need help confirming that this drive works with your server or storage system? Send us the model details and our team will check compatibility before you buy.
