Product Information

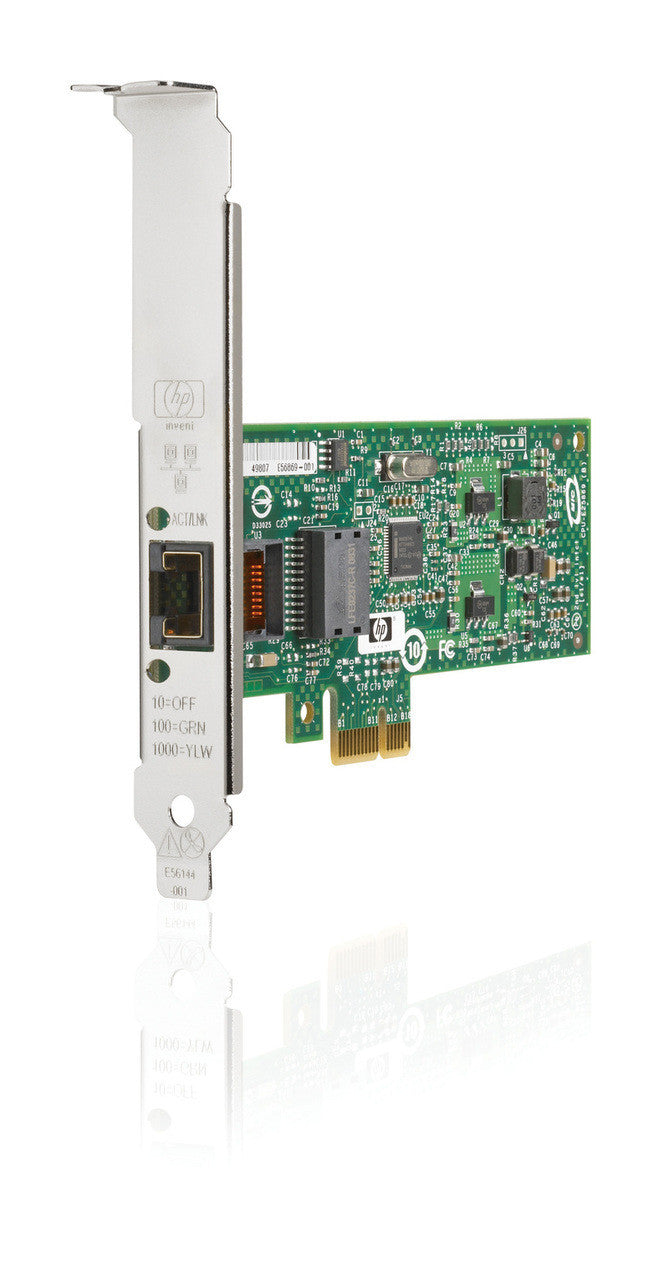

The HPE 503827-001 is the NC112T single port Gigabit Ethernet server adapter for copper networks. It uses a PCI Express interface and fits both standard and low profile slots.
Key Features
- Intel 82574L silicon
- 32KB of onboard memory
- 10/100/1000 speed and duplex set by auto negotiation
Also Supported
Load balancing, Jumbo Frames, TCP checksum offload, LSO
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 503827-001
Option Part Number: 503746-B21
Spare Part Number: 503827-001
General
Product Type: Network adapter
Form Factor: Plug-in card
Adapter Details
Bus Type: PCI Express x4
Connectivity: Wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Transfer Rate: 1 Gbps
Processor: 1 x Intel 82574
Connections
Network Ports: 1000Base-T x 1
Cabling: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Ports: 1 x 1000Base-T - RJ-45
Software and Compatibility
Supported Operating Systems: Microsoft Windows 2000, Microsoft Windows 2000 Server, Microsoft Windows 2000 Advanced Server, Novell NetWare 6.5, Microsoft Windows Server 2008 R2, Linux Kernel 2.6.x, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2012, Windows 8 (32/64 bits), Microsoft Windows XP Professional (32/64 bits), Linux Kernel 3.x, Linux Kernel 2.4.x, FreeBSD 9.x
Size and Weight
Depth: 5.10 inch
Height: 2.20 inch
Power and Environment
Compliance: IEEE 802.3, ACPI, FCC Class B certified, UL, VCCI Class B ITE, BSMI CNS 13438 Class A, CISPR 22 Class B, EN 60950, UL 1950, VCCI-II, EN55024, EN55022 Class B, ICES-003 Class B, MIC, ACA
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 95%
Compatible Systems
- HPE ProLiant DL Series: DL120 Gen7, DL120 Gen7 Base, DL120 Gen7 Entry, DL120 Gen7 Performance, DL165 Gen7 Performance, DL360 Gen7 Central Management Server, DL360 Gen7 Efficiency, DL360 Gen7 Special Server, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL360p Gen8 Special Server, DL370 Gen6 High Performance, DL370 Gen6 Special Server, DL380 Gen6, DL380 Gen7 Special Server, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385 Gen6 ICE Performance, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance, DL580 Gen5 Highly Serviceable Tower, DL580 Gen7 Base, DL580 Gen7 High Performance, DL585 Gen7 Performance, DL980 Gen7, MicroServer, MicroServer Gen8
- HPE ProLiant ML Series: ML10 Entry, ML110 Gen7, ML110 Gen7 Base, ML110 Gen7 Entry, ML110 Gen7 Performance, ML310e Gen8, ML310e Gen8 Base, ML310e Gen8 Entry, ML310e Gen8 Performance, ML310e Gen8 v2, ML350e Gen8, ML350e Gen8 Base, ML350e Gen8 Entry, ML350e Gen8 Performance, ML350e Gen8 v2, ML350e Gen8 v2 Base, ML350p Gen8, ML350p Gen8 Special Server, ML370 Gen6 Special Server
- HPE ProLiant SL Series: SL160s Gen6, SL165s Gen7, SL230s Gen8 1U Left Half Width Tray, SL230s Gen8 1U Right Half Width Tray, SL230s Gen8 Base 1U Left Tray Server, SL230s Gen8 Base 1U Right Tray Server, SL250s Gen8 2U Left Half Width Tray, SL250s Gen8 2U PCIe Gen3 Left Tray, SL250s Gen8 2U PCIe Gen3 Right Tray, SL250s Gen8 2U Right Half Width Tray, SL250s Gen8 Base 2U Left Half Width Tray, SL250s Gen8 Base 2U Right Half Width Tray, SL270s Gen8 1U Left Half Width Tray, SL270s Gen8 1U Right Half Width Tray, SL270s Gen8 Base 4U Left Half Width Tray, SL270s Gen8 Base 4U Right Half Width Tray, SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray
- HPE StorageWorks Network Storage Gateway X3800 Gen2
- HPE StorageWorks Network Storage System X1400 Gen2, X1800, X1800 Gen2
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
