Product Information

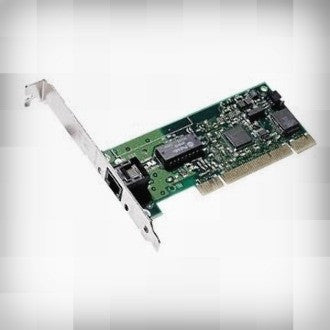

The HPE 174829-001 is the NC3123, a single port 10/100 Fast Ethernet plug-in adapter with a PCI interface and an RJ-45 port.
Key Features
- Up to 100 Mbps
- Supports 10Base-T and 100Base-TX
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 174829-001
Option Part Number: 174830-B21
Spare Part Number: 174831-001
Assembly Number: 174829-001
General
Product Type: Network Adapter
Form Factor: Plug-in card
Adapter Details
Bus Type: PCI
Connectivity: Wired
Data Link Protocol: 10Mb LAN, 100Mb LAN
Transfer Rate: 100 Mbps
Remote Management: SNMP
Features: Remote Wake Up
Connections
Network Ports: 10/100 Ethernet
Cabling: Ethernet 10Base-T, Ethernet 100Base-TX
Ports: 1 x 100Base-TX - RJ-45 - 1
Slot: 1 x PCI - full-length
Software and Compatibility
Supported Operating Systems: Microsoft Windows NT 3.51, UnixWare 7, SCO OpenServer 5, IBM OS/2 Warp, Microsoft Windows 95/98, Novell NetWare 3.x
Power and Environment
Compliance: IEEE 802.3, IEEE 802.3u
Operating Temp (Min): 50 °F
Operating Temp (Max): 131 °F
Operating Humidity: 5 - 85%
Compatible Systems
- Compaq Evo Workstation W8000 Compaq ProLiant DL320 Gen2
- HPE Server tc2120
- HPE ProLiant 3000, 6500, 8500, 8500R, DL320 Gen2, DL360, DL360 Gen2, DL360 Gen3, DL380, DL380 Gen3, DL580, DL580 Gen2, DL760, ML330 Gen2, ML350, ML350 Gen3, ML370, ML370 Gen3, ML530, ML530 Gen2, ML570
- HPE Server tc2120
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
