Product Information

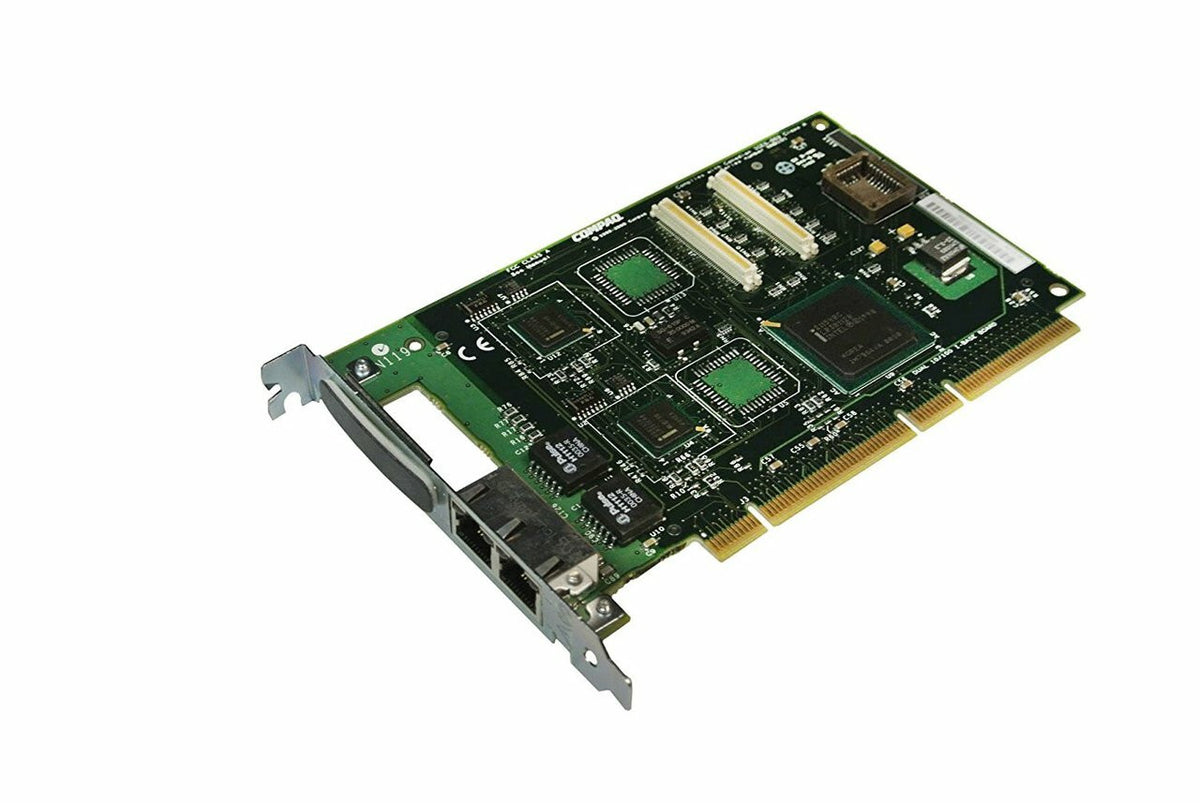

The HPE 161105-001 is the NC3134 Fast Ethernet adapter with two 10/100Base-TX ports on a 64-bit PCI card. Its modular design lets you add an upgrade module for two more 10/100 ports, a 100Mbps fiber (100FX) port, or Gigabit Ethernet SX or LX.
Key Features
- Intel 82559 chipset
- Auto negotiating 10 or 100Mb/s on each port
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 161105-001
Option Part Number: 138603-B21
Spare Part Number: 161105-001, 313586-001
Assembly Number: 010555-001
General
Product Type: Network Interface Card
Adapter Details
Bus Interface: PCI 64-bit or 32-bit, 33/66 MHz bus-master
Compliance: Both ports IEEE 802.3 and 802.3u 10Base-T and 100Base-TX
Certifications: FCC Class B, CE Mark
Data Transfer: 32/64-bit bus-master PCI, 10 or 100Mb/s, Auto negotiating
Processor: Intel 82559 chipset
Bus Clock Rate: 33/66MHz
Bus Clock Bits: 32 bit - 62 bit
Connections
Connector: Single RJ-45 connector for each port
Power and Environment
Power Requirement: 500mA@+5V typical
