Product Information

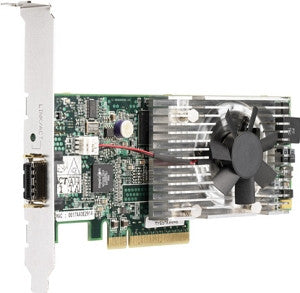

The HPE 414129-B21 is the NC510C, a PCIe x8 10 Gigabit Ethernet adapter with a 10GBASE-CX4 copper port, for HPE ProLiant servers.
Key Features
- Multifunction design for TOE, accelerated iSCSI and RDMA over one connection (HPE planned these features for later Linux and Windows releases)
- Ships with half height and full height brackets
- NetXen NX2031 controller
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 414126-B21
Option Part Number: 414129-B21
Spare Part Number: 414159-001
General
Product Type: Network adapter
Form Factor: Plug-in card - low profile
Adapter Details
Bus Type: PCI Express x8
PCI Spec Revision: PCIe 1.1
Connectivity: Wired
Data Link Protocol: 10 GigE
Transfer Rate: 10 Gbps
Network/Transport Protocol: TCP/IP, iSCSI
Remote Management: SNMP
Status Indicators: Link activity, link OK
Features: Flow control, manageable, full duplex mode, transmit load balancing (TLB), Accelerated iSCSI, TCP/IP offloading, Quality of Service (QoS)
Processor: 1 x NX2031 - NetXen
Connections
Network Ports: 10GBase-SR
Cabling: Ethernet 10GBase-CX4
Ports: 1 x 10GBASE-SR - 4x InfiniBand (SFF-8470)
Slot: 1 x PCI Express x8
In the Box: Low-profile bracket
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Standard Edition, Red Hat Enterprise Linux 3, SuSE Linux Enterprise Server 9, Microsoft Windows Server 2003 Standard x64 Edition, Red Hat Enterprise Linux 4, Microsoft Windows Server 2003 Enterprise x64 Edition
Size and Weight
Width: 2.50 inch
Depth: 6.50 inch
Power and Environment
Compliance: IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3ak, FCC Class A certified, UL, CISPR 22 Class A, BSMI CNS 13438 Class A, cUL, EN 60950, VCCI Class A ITE, EN55024, EN55022 Class A, WHQL, ICES-003 Class A, RoHS, MIC Class A, ACA, ACPI 1.1
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
