Product Information

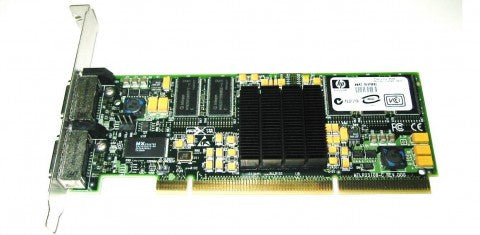

The HPE NC570C is a dual port 10Gb adapter with microGiGaCN ports on a PCI-X 133 MHz card, for HPE ProLiant Gen3 and Gen4 servers.
Key Features
- Half and full duplex
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: NC570C
Option Part Number: 376158-B21
Spare Part Number: 374932-001
Model Number: NC570C
Assembly Number: 374291-001
General
Product Type: Network Adapter - 2 Ports
Form Factor: Plug-in Card
Adapter Details
Bus Type: PCI-X / 133 MHz
PCI Spec Revision: PCI-X 1.0
Connectivity: Wired
Data Link Protocol: InfiniBand
Transfer Rate: 10 Gbps
Features: Half duplex mode, full duplex mode
Processor: 1 x Mellanox InfiniRISC
RAM: 128 MB
Connections
Cabling: 4x InfiniBand (SFF-8470)
Ports: 2 x network - microGiGaCN
Slot: 1 x PCI-X / 133 MHz
Software and Compatibility
Supported Operating Systems: Microsoft Windows 2000 Server, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Standard Edition, Microsoft Windows Server 2003, Novell NetWare 6.5, Red Hat Enterprise Linux 3, SuSE Linux Enterprise Server 9 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2003 Standard x64 Edition, Red Hat Enterprise Linux 4, Microsoft Windows Server 2003 Enterprise x64 Edition
Size and Weight
Width: 2.50 inch
Depth: 6.60 inch
Power and Environment
Compliance: FCC Class B certified, CISPR 22 Class B, EN 60950, IEC 60950, UL 60950, CSA 22.2 No. 60950
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 0 - 85%
Compatible Systems
- HPE ProLiant DL Series: DL140, DL140 Gen2, DL145, DL145 Gen2, DL320 Gen3, DL360 Gen4, DL360 Gen4p, DL380 Gen4 High Performance, DL385, DL580 Gen2, DL580 Gen3, DL585, DL740
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
